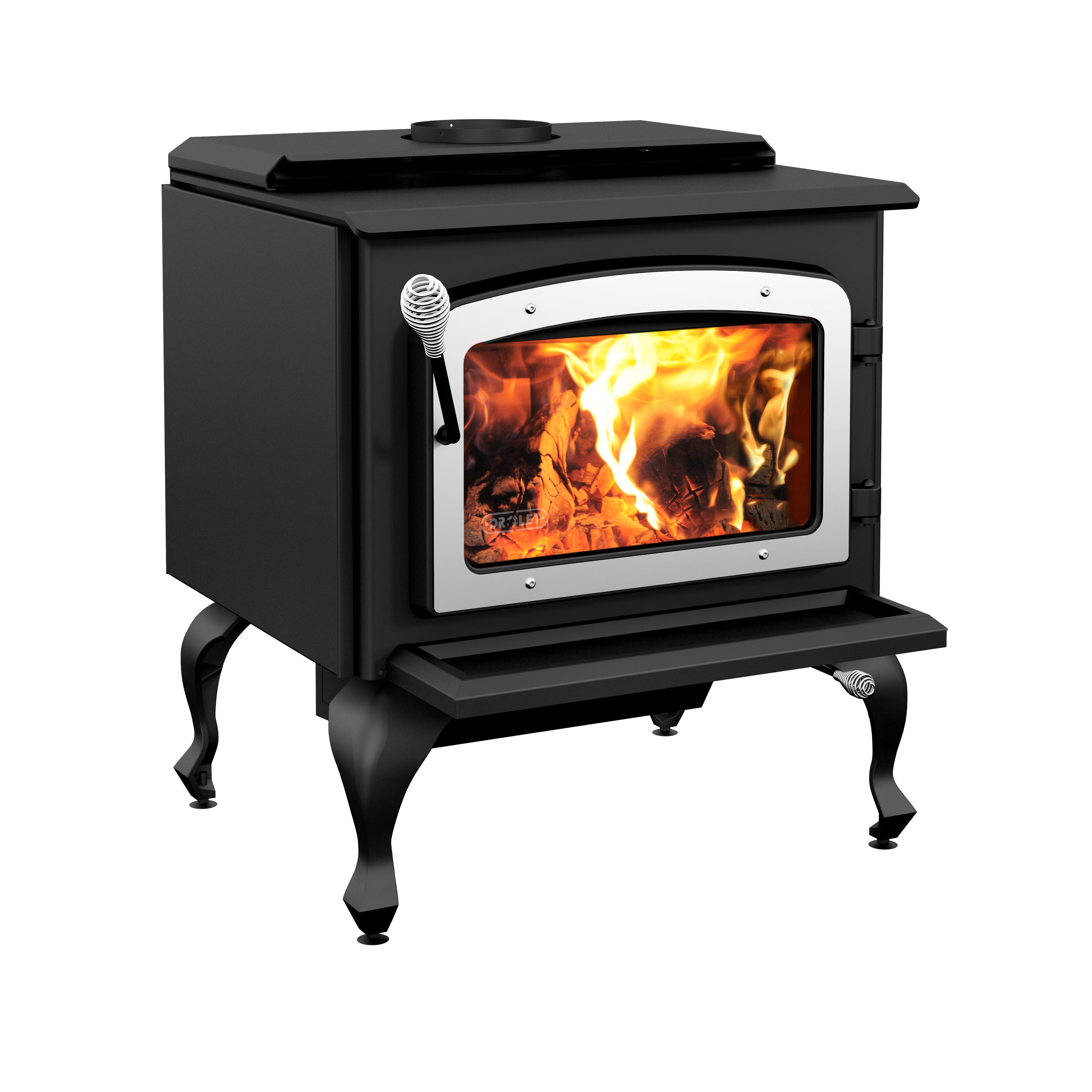

ESCAPE 1800 - ON LEGS & BRUSHED NICKEL DOOR

Name: ESCAPE 1800 - ON LEGS & BRUSHED NICKEL DOOR
Brand: Drolet
SKU: DB03112
Price: 1999.00 CAD
Availability: InStock

SKU: DB03112

$1,999.00 CAD

Quantity: (In cart: 0)

Increments of 1 Minimum of 1 Maximum of

In stock

ESCAPE 1800 - ON LEGS & BRUSHED NICKEL DOOR

$1,999.00

Made in

Canada

Dimension 26 1/8"L X 25 7/8"P X 30 1/4"H

Heating Area 500 - 2,100 ft² How to Calculate Heating Area

Maximum Log Length 20"

Full Specifications

Full Description

Specifications

Fuel type	Dry cordwood (16" recommended)	Maximum overall heat output rate	44,500 BTU/h (13.04 kW)
Heating area	500 - 2,100 ft²	Average overall efficiency - dry cordwood (HHV)	72 %
Overall firebox volume	2.4 ft³	Average overall efficiency - dry cordwood (LHV)	77 %
EPA loading volume	1.95 ft³	Optimum efficiency	79 %
Maximum burn time	8 h	Optimum heat transfer efficiency	76%
Maximum heat output - dry cordwood	75,000 BTU/h (22 kW)	Average particulate emission rate	2.3 g/h
Minimum overall heat output rate	14,200 BTU/h (4.16 kW)	Average CO	69 g/h

Alcove installation approved	Yes	Glass surface - W x H	16" x 9 1/4"
Mobile home approved	Yes, with fresh air intake	Steel thickness - body	3/16"
Certified according to applicable standards	By an accredited laboratory (CAN/USA)	Steel thickness - top	5/16"
Overall dimension (Width)	26 1/8"	Firebox size (Width)	21"
Overall dimension (Height)	30 1/4"	Firebox size (Height)	12"
Overall dimension (Depth)	25 7/8"	Firebox size (Depth)	16 1/2"
Premium quality blower included (CFM)	Optional	Log positioning	Loading over width
Combustion technology	Non-catalytic	Maximum log length	20"
Stainless-steel secondary-air system	Yes	Firebox lined with refractory bricks	Yes
Flue outlet diameter	6"	Baffle type	High quality vermiculite
Distance - center of the flue outlet to back unit	6 3/4"	High-efficiency certified appliance	Yes, EPA 2020 approved
Distance - center of the flue outlet to side unit	12 7/8"	Canadian Standard (emissions)	CSA B415.1-10
Recommended chimney diameter	6"	USA Standard (emissions)	EPA / ASTM WK47329
Type of chimney	CAN/ULC S629, UL 103 HT (2100 °F)	Canadian Standard (safety)	ULC S627
Minimum chimney height	12'	USA Standard (safety)	UL 1482, UL 737
Door type	Single, glass with cast iron frame	Warranty	Limited lifetime
Door opening size (Width)	17 1/2"	Shipping weight	375 lb (170 kg)
Door opening size (Height)	9"	Approved as add-on to an existing furnace	No
Glass type	Ceramic glass

Manuals & Instructions

Consult the available manuals and leaflets for more information on performance, installation and use requirements, etc.

Replacement Parts

Browse all available replacement parts for this model.
