| Alcove installation approved |
Yes |
Glass type |
Ceramic glass |
| Mobile home approved |
Yes, with fresh air intake |
Glass surface - W x H |
15 3/4" x 9 3/4" |
| Certified according to applicable standards |
By an accredited laboratory (CAN/USA) |
Steel thickness - body |
3/16" |

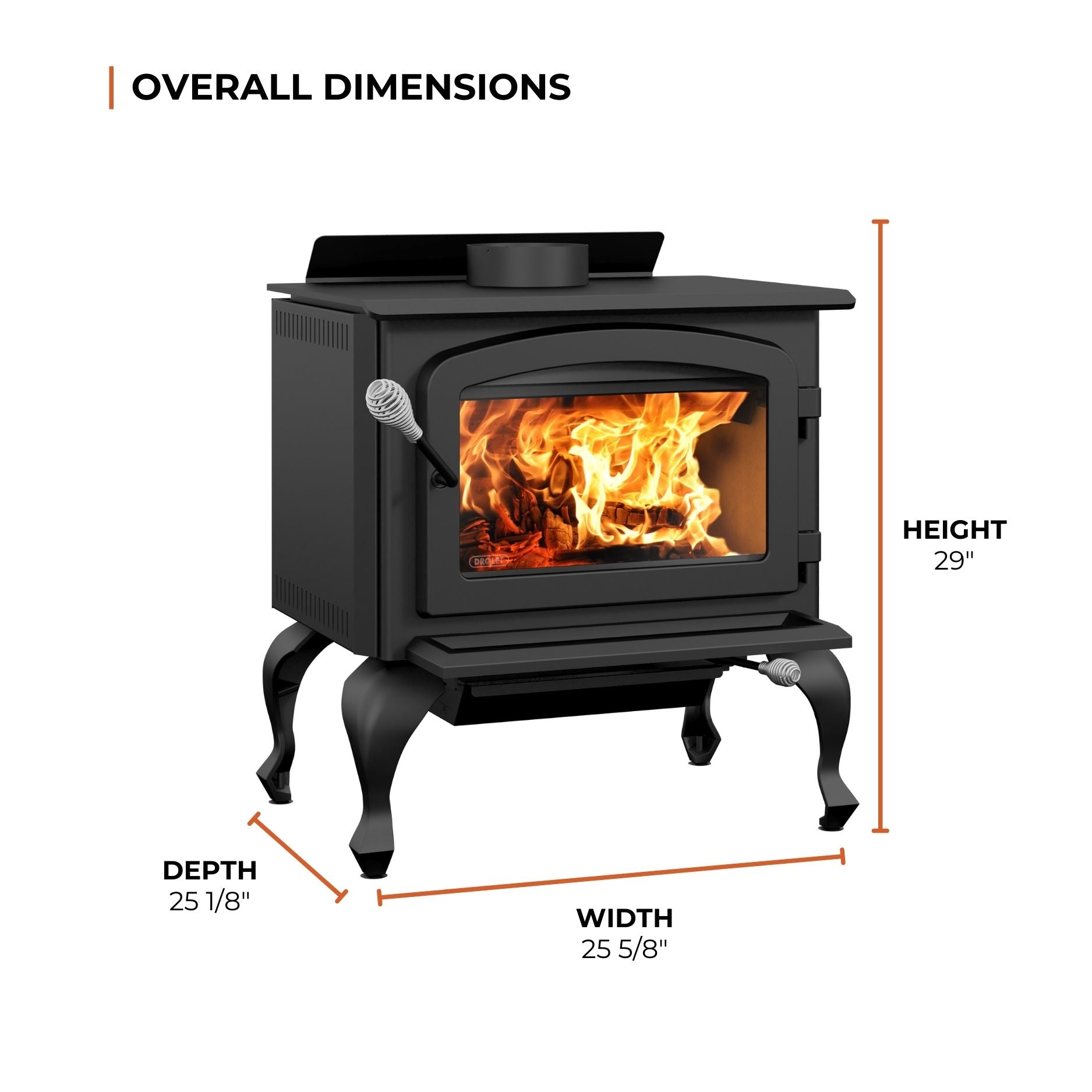

| Overall dimension (Width) |
25 5/8" |
Steel thickness-top |
5/16" |
| Overall dimension (Height) |
29" |
Firebox size (Width) |
19 5/8"" |
| Overall dimension (Depth) |
25 1/8" |
Firebox size (Height) |
11 7/8" |
| Premium quality blower included (CFM) |
Optional |
Firebox size (Depth) |
13 1/2" |
| Combustion technology |
Non-catalytic |
Log positioning |
Loading over width |

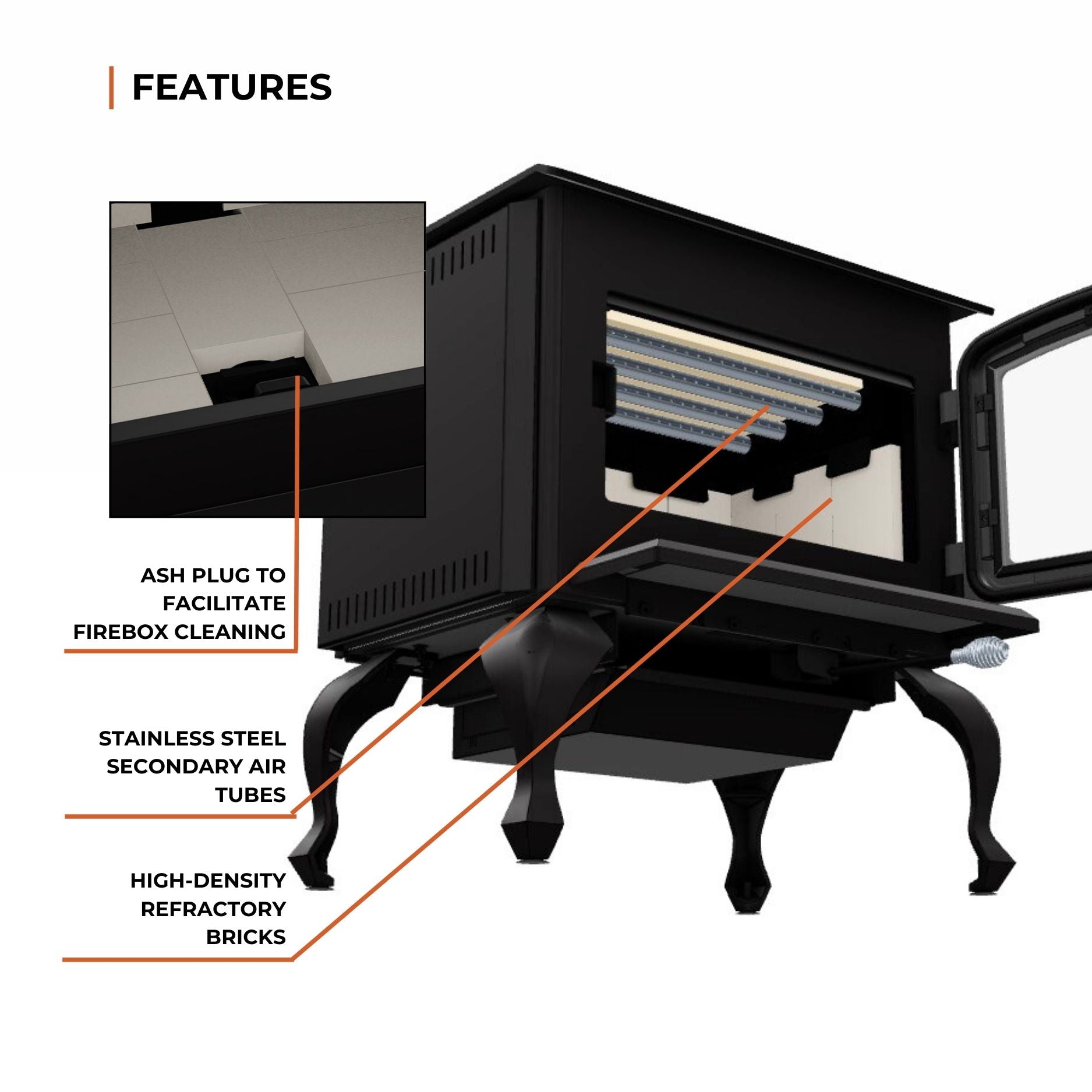

| Stainless-steel secondary-air system |
Yes |
Maximum log length |
18" |
| Flue outlet diameter |
6" |
Firebox lined with refractory bricks |
Yes |
| Distance - center of the flue outlet to back unit |
7 1/2" |
Baffle type |
High quality vermiculite |
| Distance - center of the flue outlet to side unit |
12 1/2" |
High-efficiency certified appliance |
Yes, EPA 2020 approved |
| Recommended chimney diameter |
6" |
Canadian Standard (emissions) |
CSA B415.1-10 |
| Type of chimney |
CAN/ULC S629, UL 103 HT (2100 °F) |
USA Standard (emissions) |
EPA |
| Minimum chimney height |
12' |
Canadian Standard (safety) |
ULC S627 |

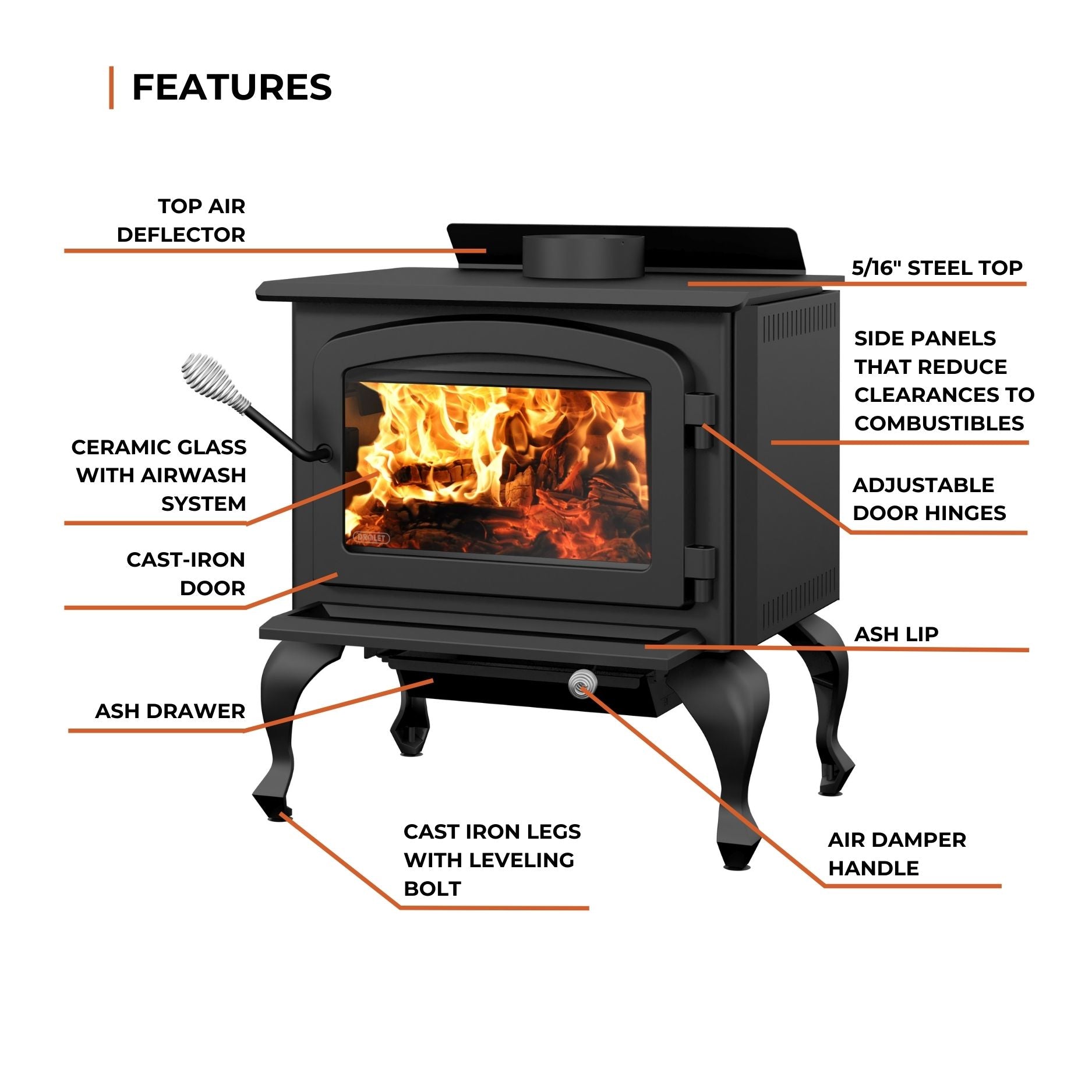

| Door type |
Single, glass with cast iron frame |
USA Standard (safety) |
UL 1482, UL 737 |
| Door opening size (Width) |
17 1/4" |
Warranty |
Limited lifetime |
| Door opening size (Height) |
8" |
Shipping weight |
317 lb (144 kg) |
