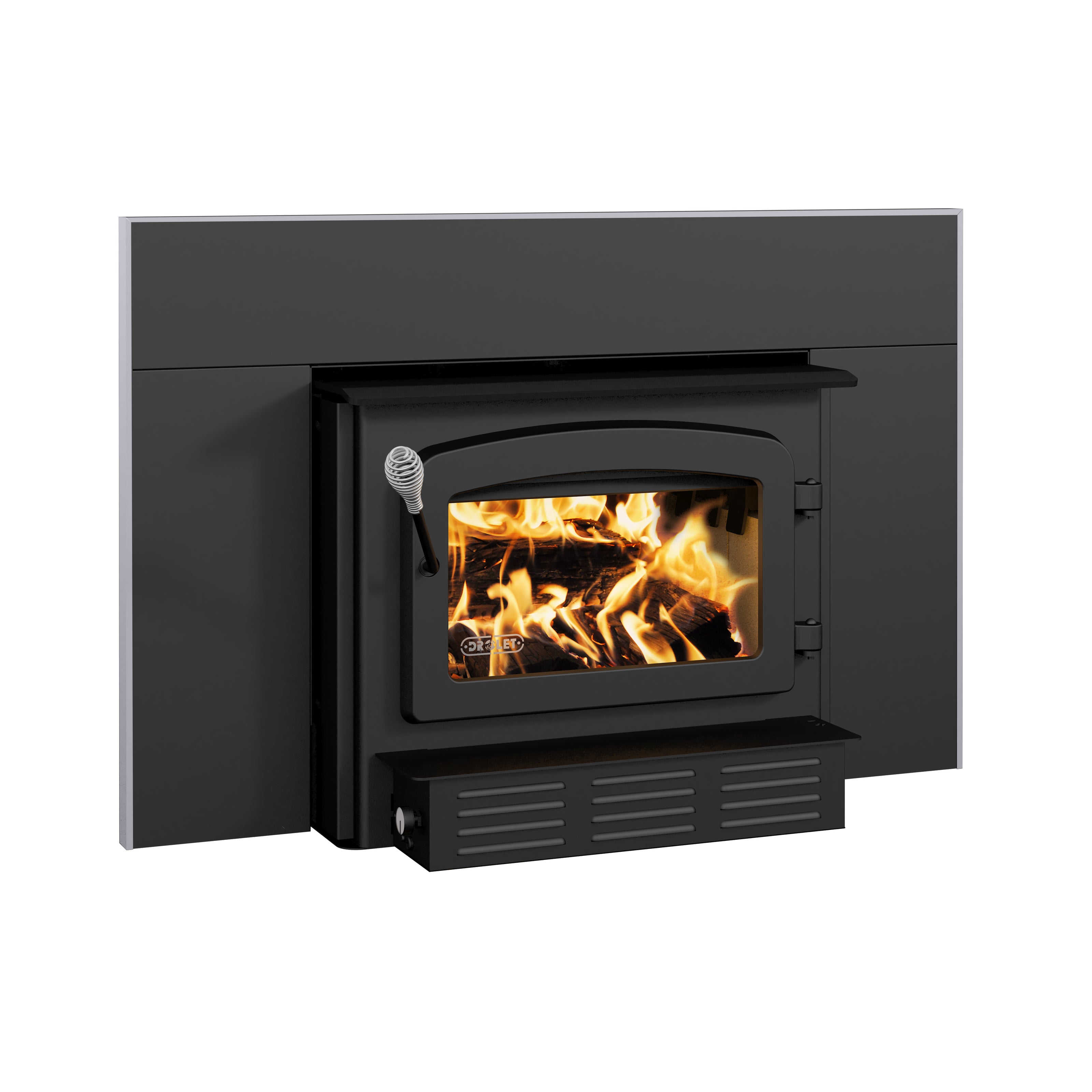

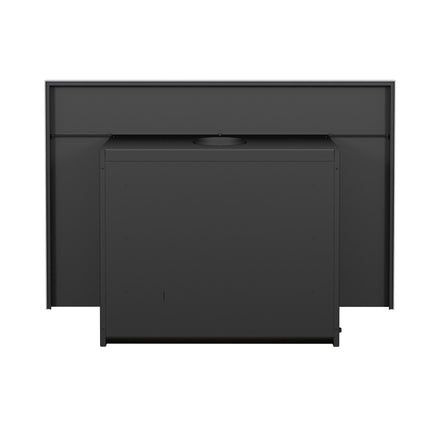

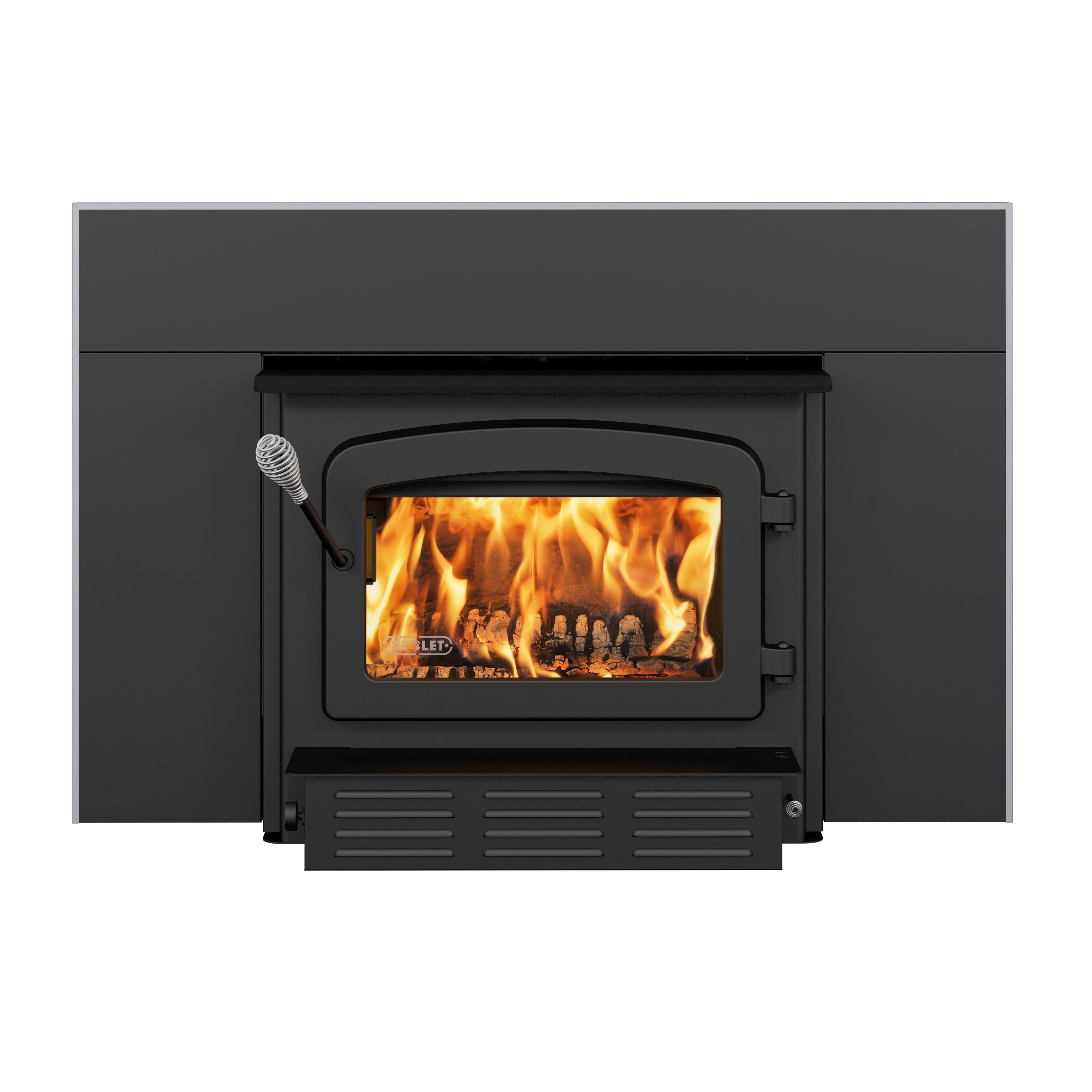

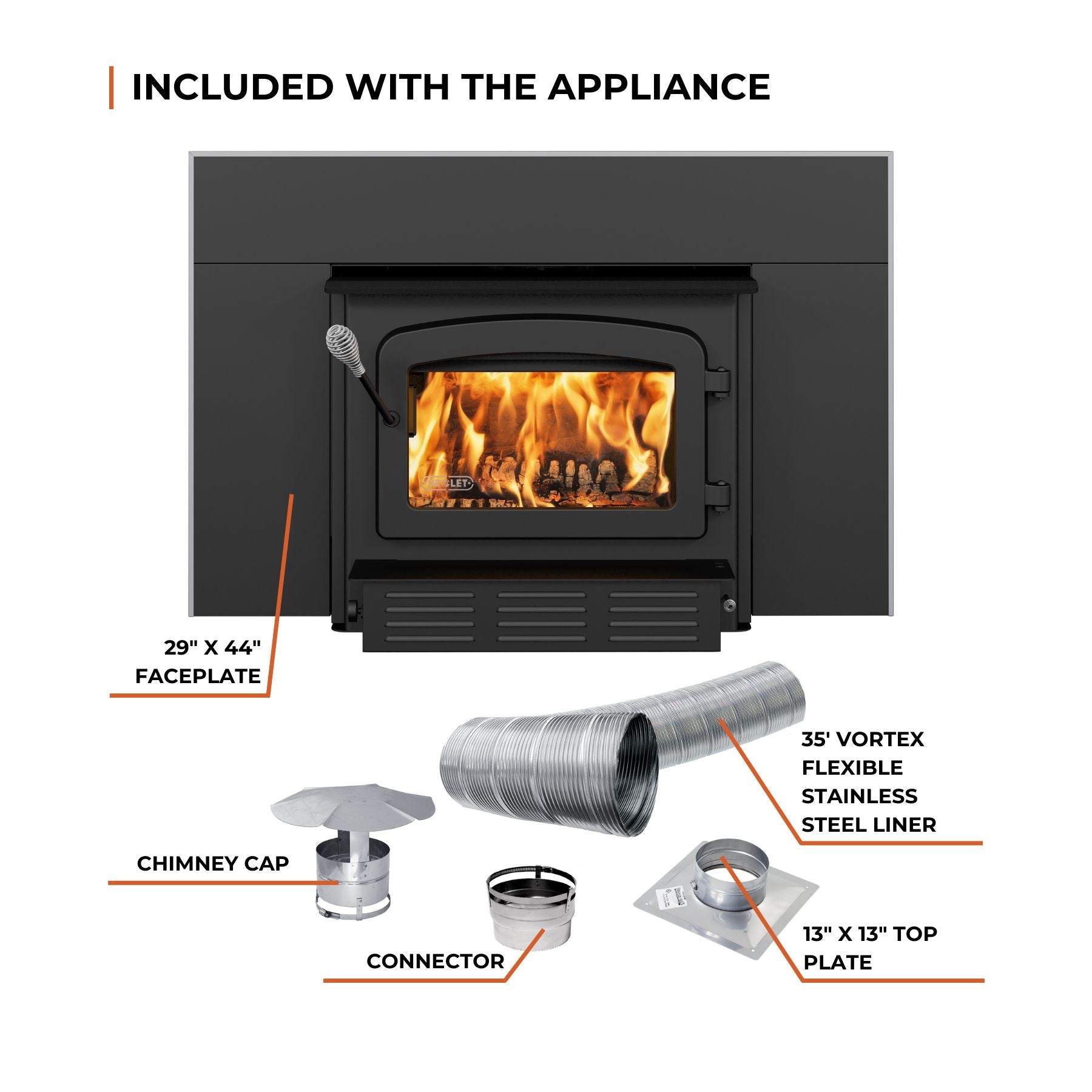

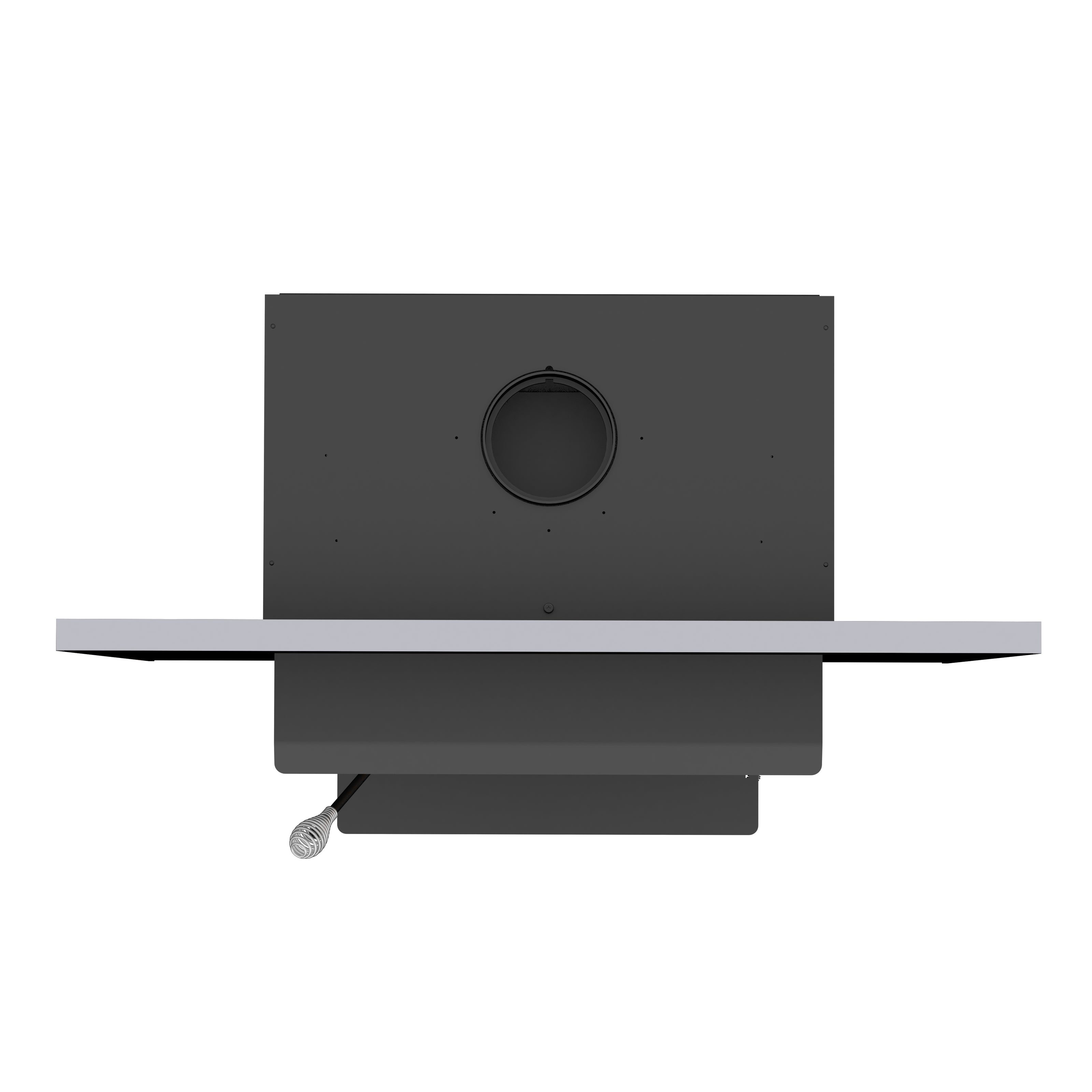

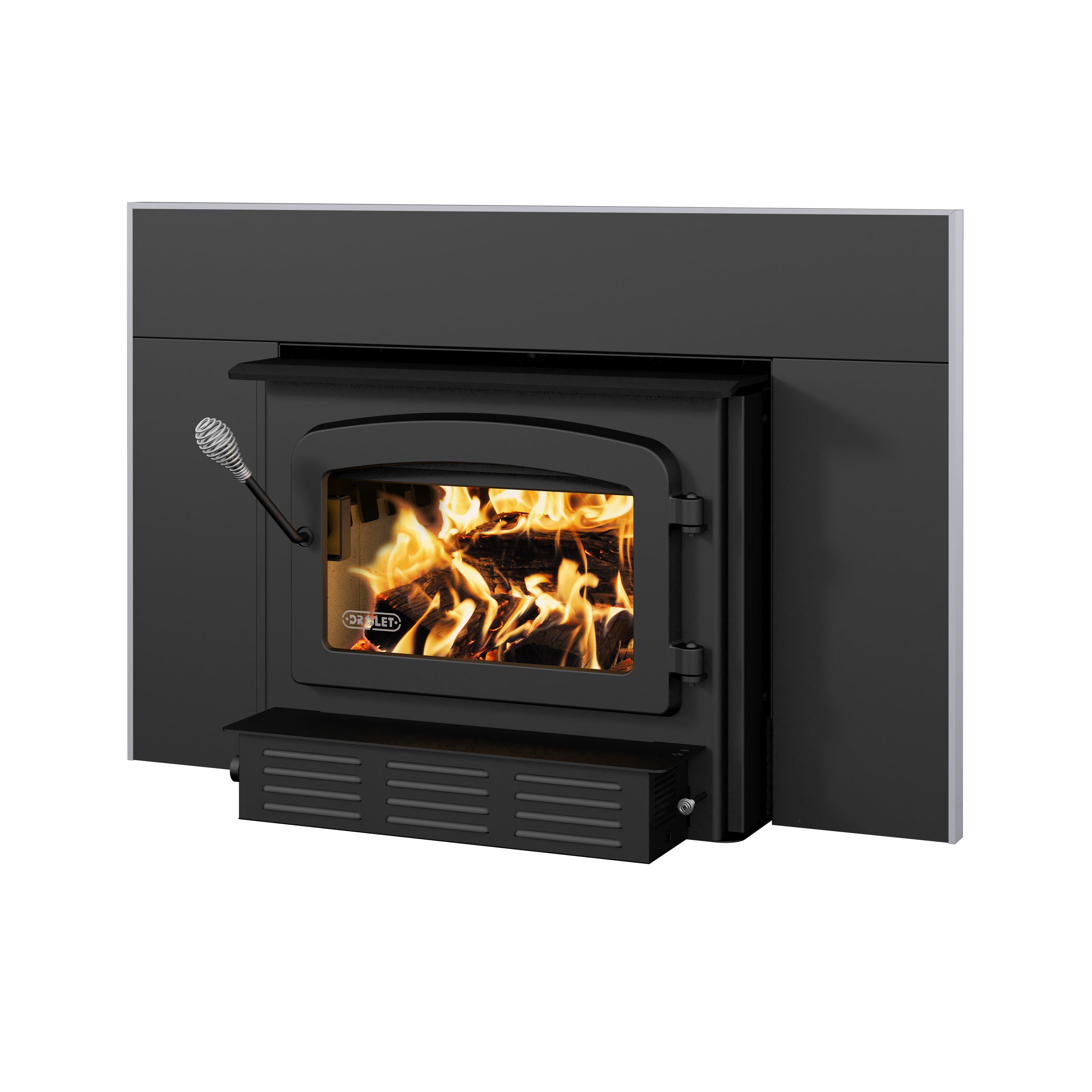

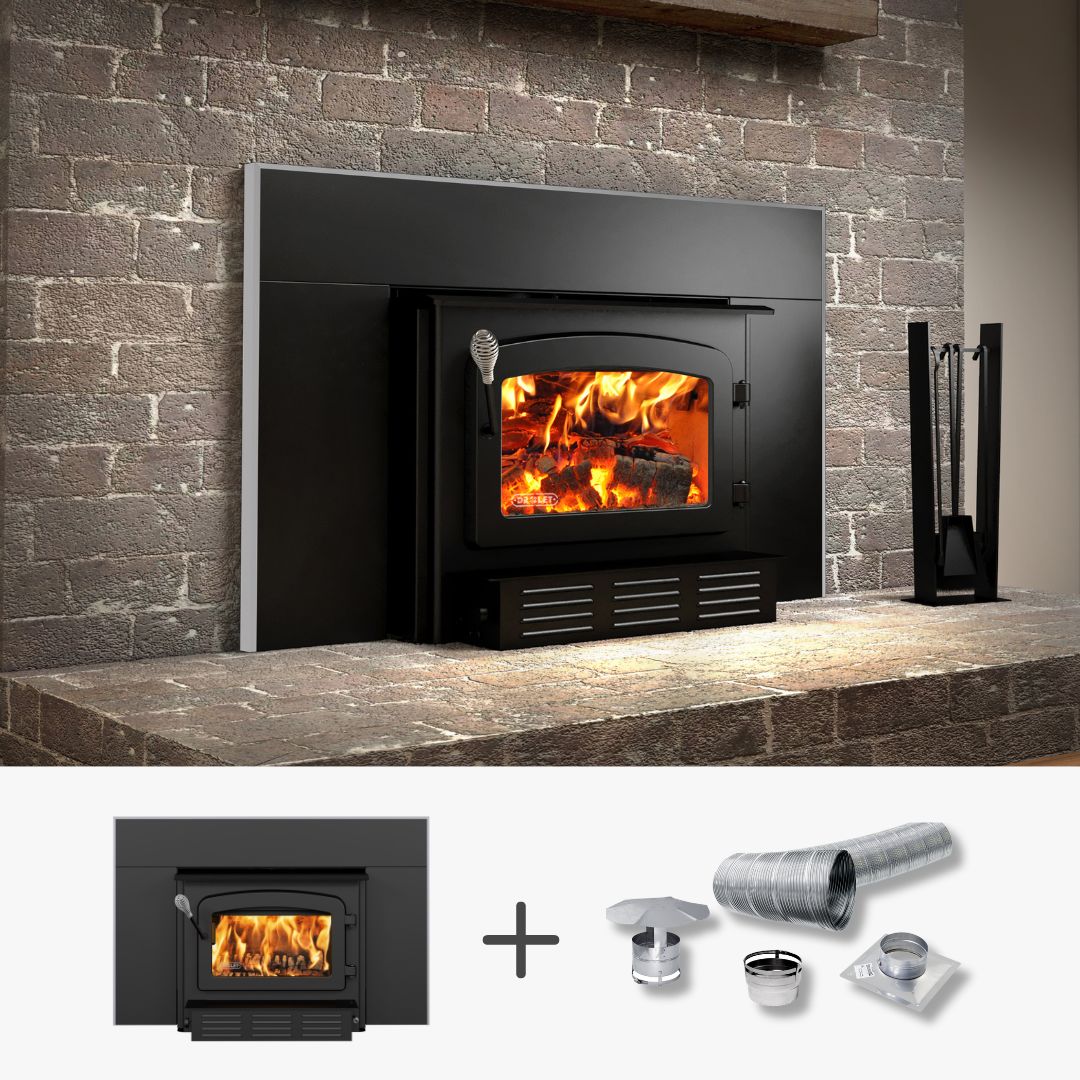

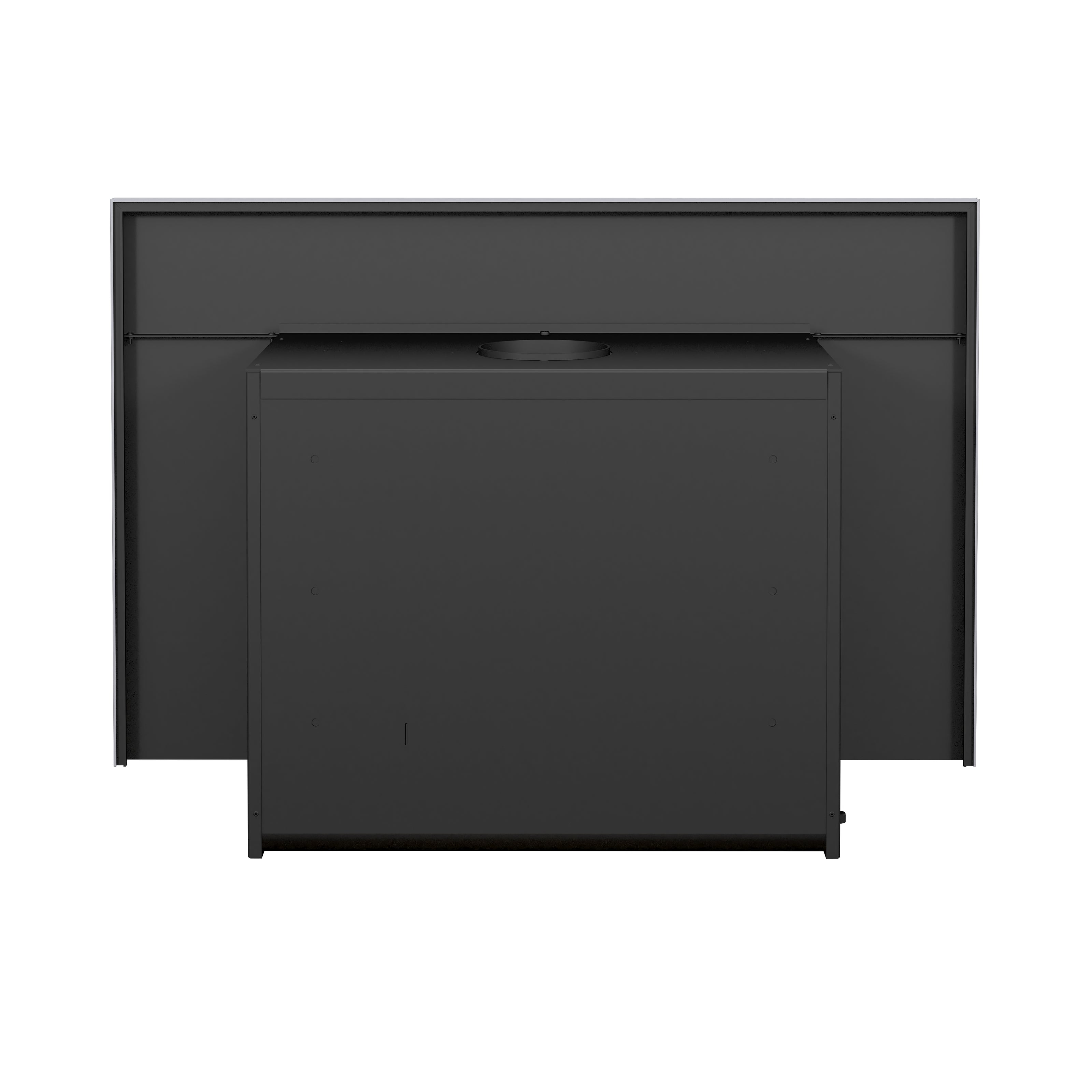

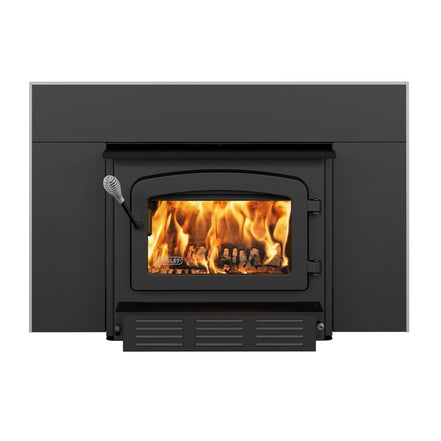

ESCAPE 1800-I + FACEPLATE + 35' LINER KIT

SKU: DB03128K
Sale price $2,399.00 CADRegular price $2,599.00 CAD
Regular price $2,399.00 CAD

Full Description
🌍 Made in: Canada Flag Canada USA Flag United States

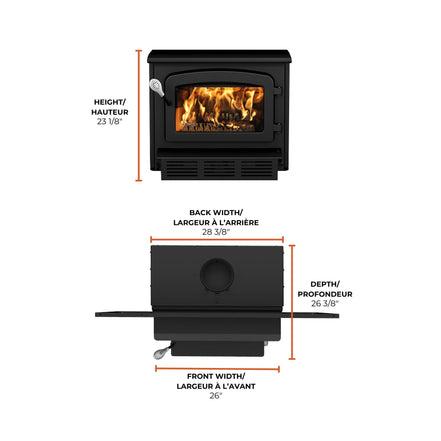

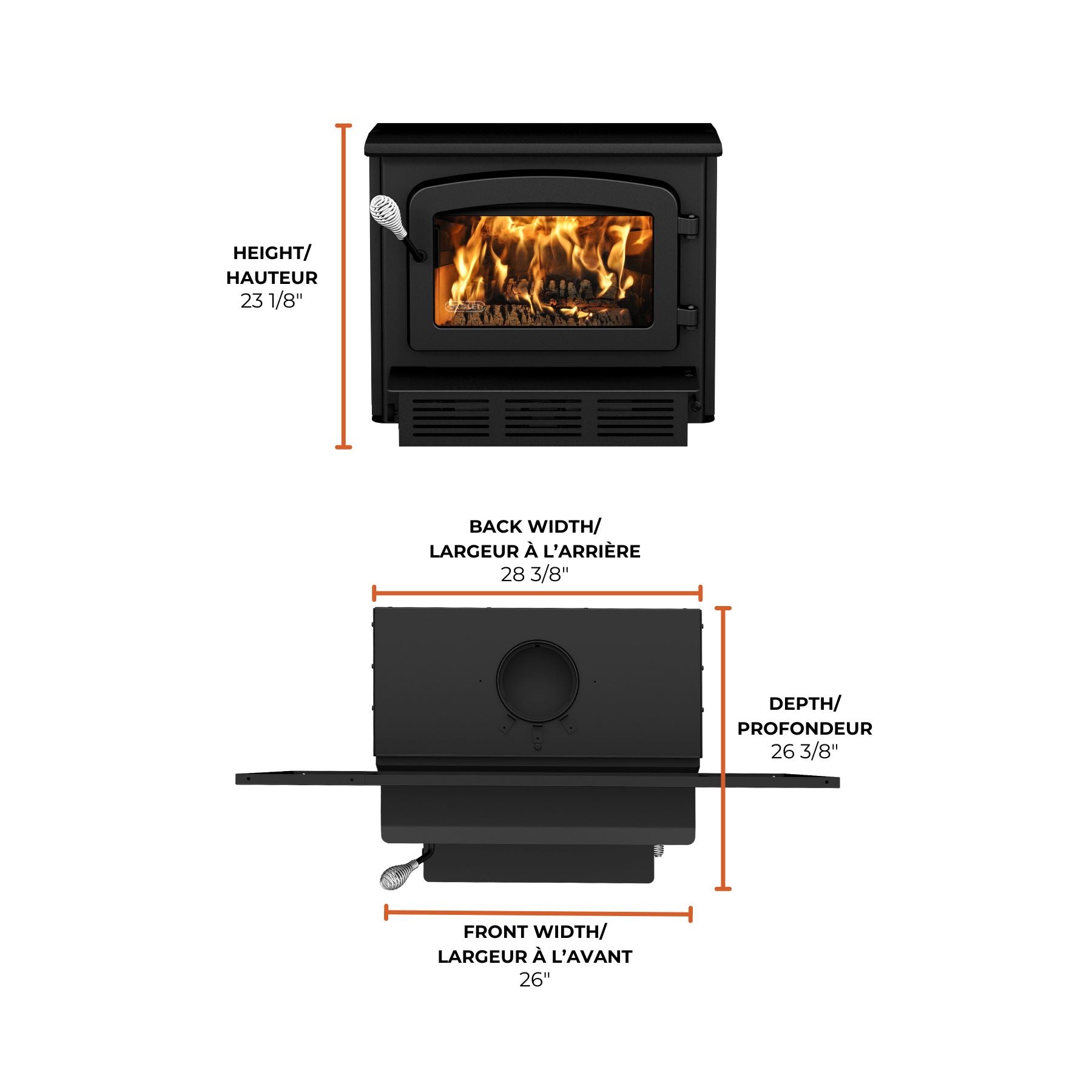

📏 Dimension: 28 3/8"L X 26 3/8"P X 23 1/8"H
🏠 Heating Area: 500 - 2,100 ft²
🔥 Maximum Log Length: 20"
Full Specifications
Specifications

Appliance Performance

Fuel type Dry cordwood (16" recommended) Maximum overall heat output rate 44,500 BTU/h (13.04 kW)
Heating area 500 - 2,100 ft² Average overall efficiency - dry cordwood (HHV) 72 %
Overall firebox volume 2.4 ft³ Average overall efficiency - dry cordwood (LHV) 77 %
EPA loading volume 1.95 ft³ Optimum efficiency 79 %
Maximum burn time 8 h Optimum heat transfer efficiency 76 %
Maximum heat output - dry cordwood 75,000 BTU/h (22.0 kW) Average particulate emission rate 2.3 g/h
Minimum overall heat output rate 14,200 BTU/h (4.16 kW) Average CO 69 g/h

General Features

Premium quality blower included (CFM) 144 CFM included Steel thickness-top 5/16"
Certified according to applicable standards By an accredited laboratory (CAN/USA) Firebox size (Width) 21"
Combustion technology Non-catalytic Firebox size (Height) 11 7/8"
Stainless-steel secondary-air system Yes Firebox size (Depth) 16 1/2"
Flue outlet diameter 6" Maximum log length 20"
Distance-center of the flue outlet to back unit 6 7/8" Log positioning Loading over width
Distance-center of the flue outlet to side unit 13 1/2" Firebox lined with refractory bricks Yes
Recommended chimney diameter 6" Baffle type High quality vermiculite
Type of chimney Liner - ULC-S635, CAN/ULC-S640, UL1777 Minimum fireplace opening (Width) 28 7/8"
Minimum chimney height 12' Minimum fireplace opening (Height) 23 3/8"
Overall dimension (Width) 28 3/8" Minimum fireplace opening (Depth) 15 3/4"
Overall dimension (Height) 23 1/8" High-efficiency certified appliance Yes, EPA 2020 approved
Overall dimension (Depth) 26 3/8" Canadian Standard (emissions) CSA B415.1-10
Door type Single, glass with cast iron frame USA Standard (emissions) EPA / ASTM WK47329
Door opening size (Width) 17 1/2" Canadian Standard (safety) ULC S628
Door opening size (Height) 9" USA Standard (safety) UL 1482, UL 737
Glass type Ceramic glass Warranty Limited lifetime
Glass surface - W x H 16" x 9 1/4" Shipping weight 500 lb (227 kg)
Steel thickness-body 3/16" Approved as add-on to an existing furnace No

Clearances

Canada United States
Clearance - Combustible side wall to unit 16" 16"
Clearance - Combustible side mantle to unit 9" 9"
Clearance - Combustible top mantle to unit 27" 27"
Clearance - Top of the unit to a 12" combustible mantle shelf 27" 27"
Clearance - Base of the unit to ceiling** 84" 84"
Clearance - Floor protection in front of the unit (from door opening) 16" 18"
