Drolet
SKU: DB03137
$2,049.00 CAD
$2,049.00 CAD
In stock
ESCAPE 1500-I - WITH FACEPLATE
ESCAPE 1500-I - WITH FACEPLATE
$2,049.00
$2,049.00
Trust Badge
Made in Canada Flag Canada USA Flag United States

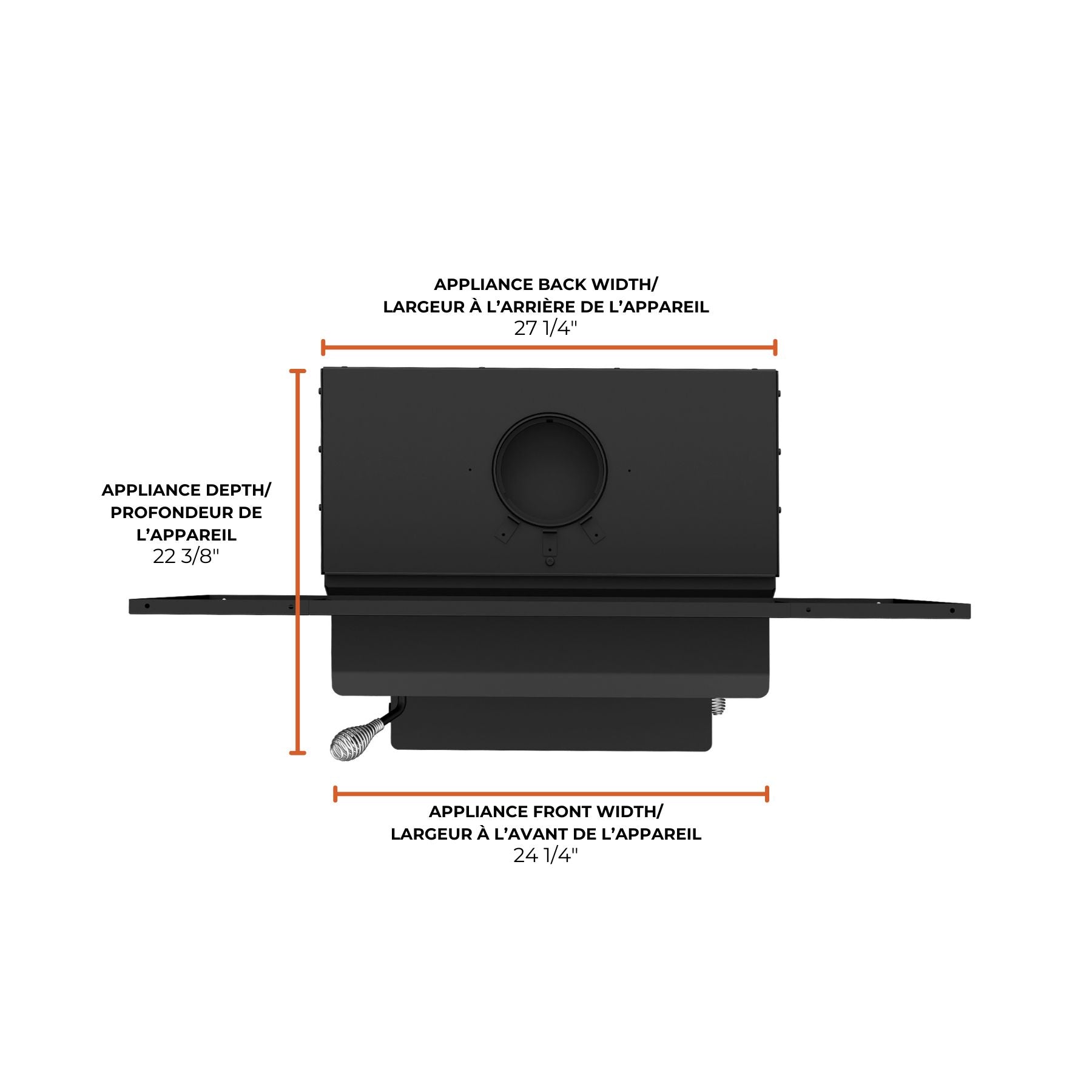

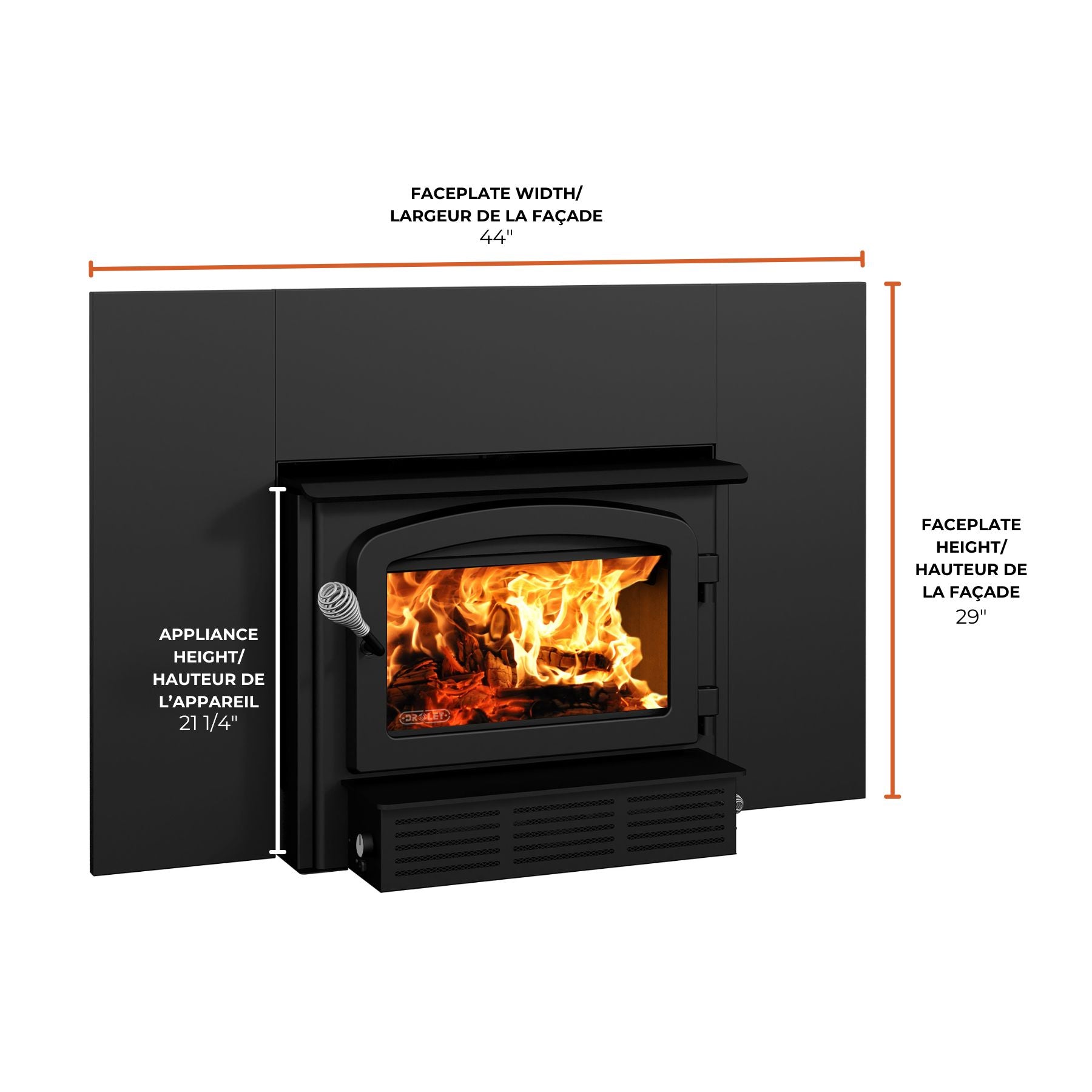

Dimension 27 1/4"L X 22 3/8"P X 21 1/4"H
Heating Area 500 - 1,800 ft² How to Calculate Heating Area
Maximum Log Length 18"
Full Specifications

Warning: Wood-burning inserts must only be installed inside an existing masonry fireplace and never in a wooden or combustible structure.

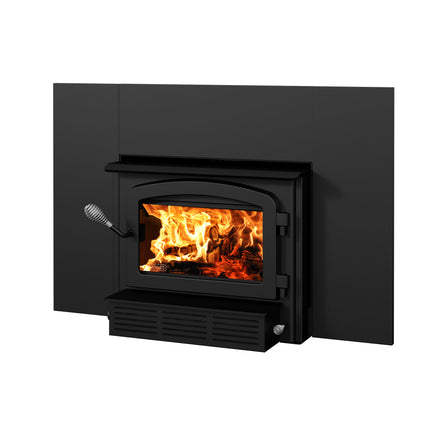

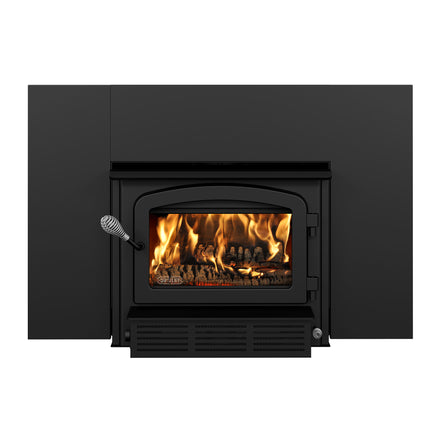

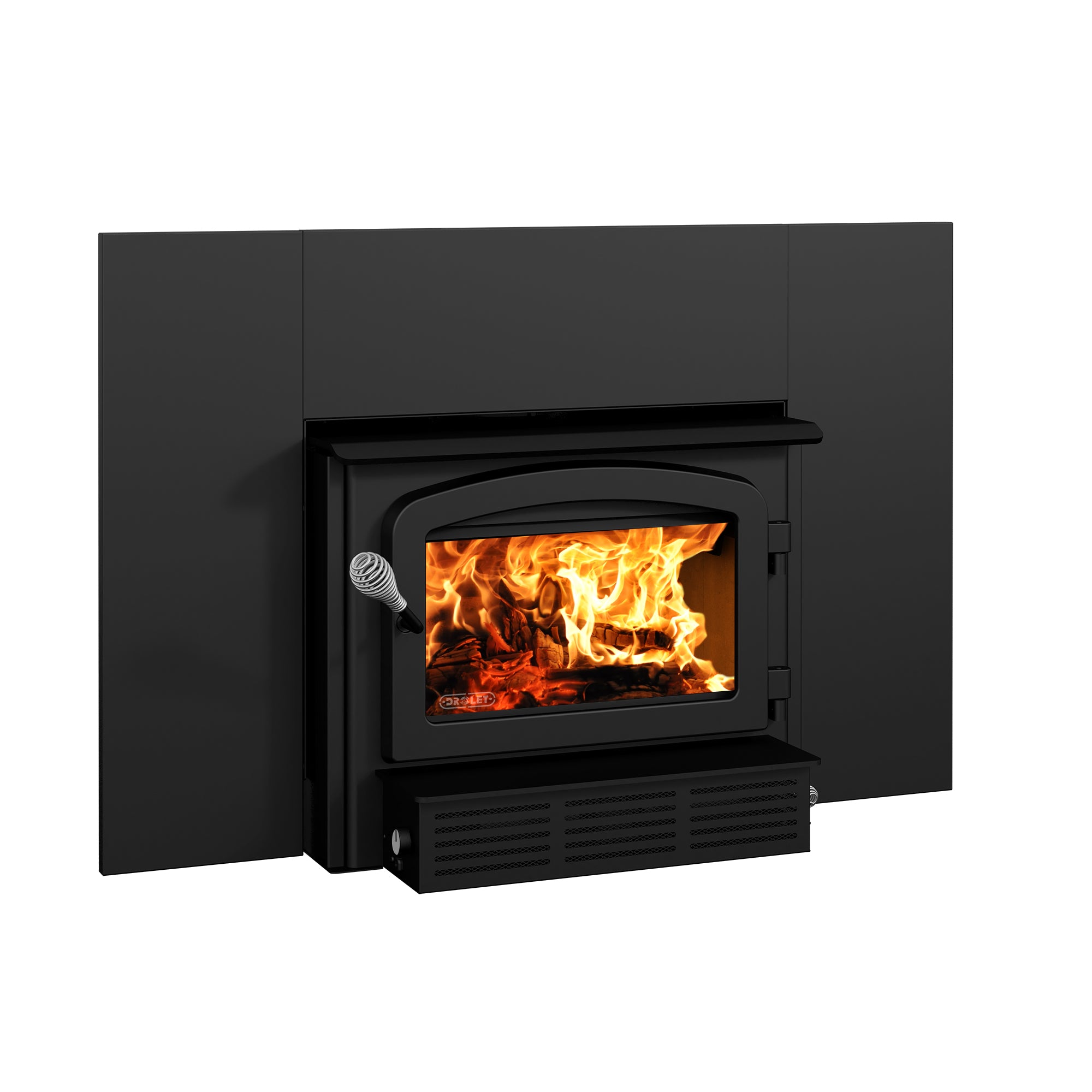

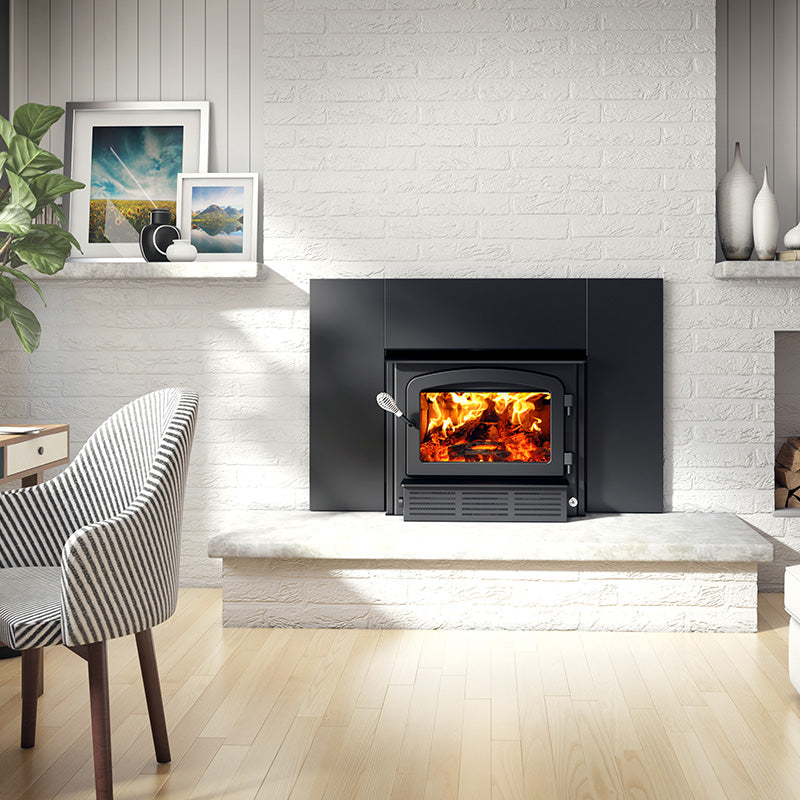

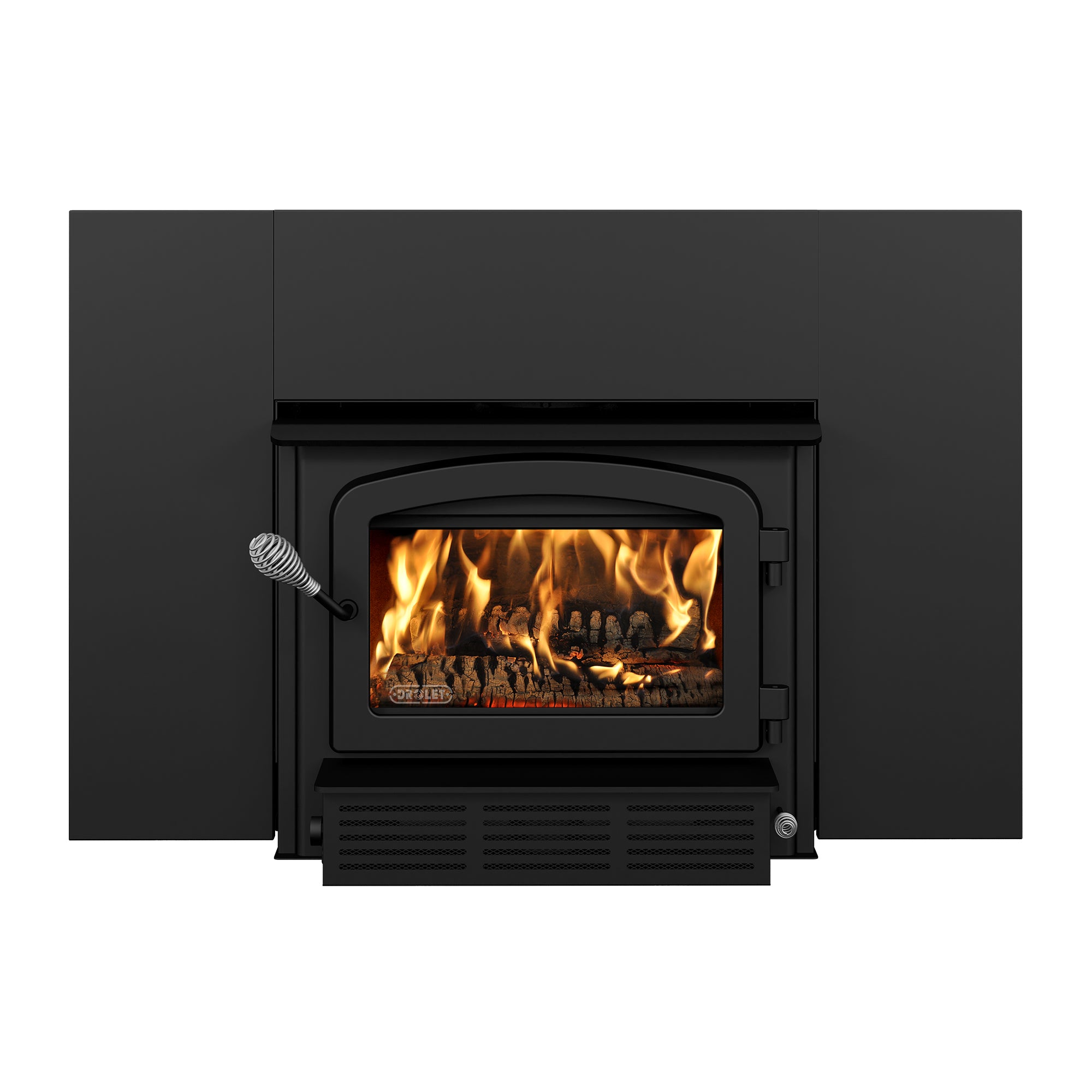

Combining performance and respect for the environment, the Escape 1500 is the perfect choice for heating homes up to 1,800 ft². With only 2.4 g/h of particulate emissions, this non-catalytic wood insert gives off up to 65,000 BTU/h while largely meeting EPA standards. The Escape 1500 is the perfect way to update your masonry fireplace, and make it efficient!

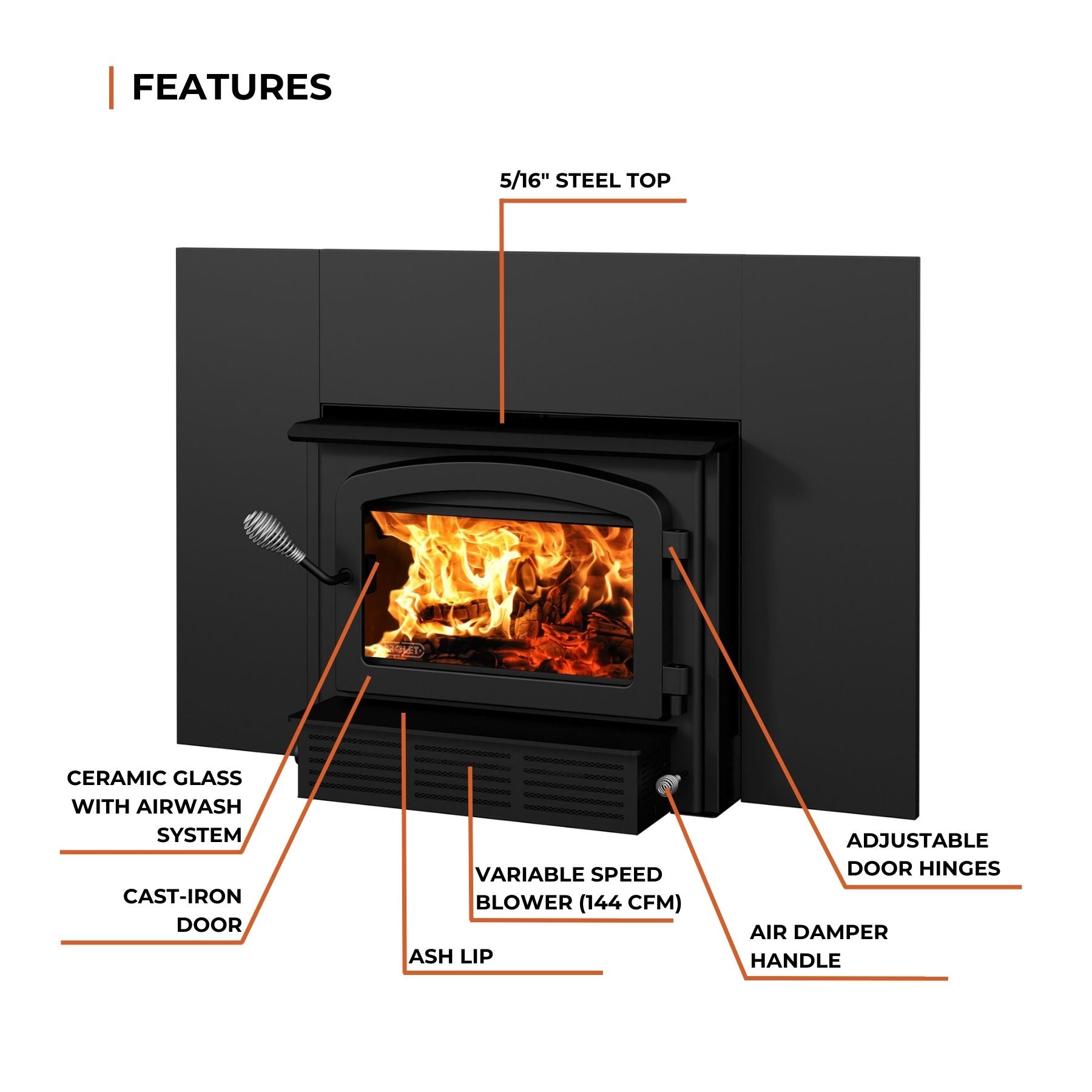

Included: 29" x 44" faceplate, blower, ceramic glass, ash lip, air damper

  • Suitable for masonry fireplaces only
  • Burn time up to 7 hours
  • Up to 18" logs
  • Robust 5/16" steel reinforced with a stainless steel heat shield
  • Glass airwash system for a cleaner view of the flames
  • EPA certified
  • Proudly made in Canada and the USA
  • Limited lifetime warranty

Any installation must be done according to the data and drawings detailed in the owner’s manual.

Full Description

Specifications

Appliance Performance

Fuel type Dry cordwood (16" recommended) Maximum overall heat output rate 52,200 BTU/h (15.3 kW)
Heating area 500 - 1,800 ft² Average overall efficiency - dry cordwood (HHV) 68 %
Overall firebox volume 1.86 ft³ Average overall efficiency - dry cordwood (LHV) 73 %
EPA loading volume 1.44 ft³ Optimum efficiency 76 %
Maximum burn time 7 h Optimum heat transfer efficiency 75 %
Maximum heat output - dry cordwood 65,000 BTU/h (19 kW) Average particulate emission rate 2.4 g/h
Minimum overall heat output rate 9,800 BTU/h (2.87 kW) Average CO 103 g/h

General Features

Premium quality blower included (CFM) 144 CFM included Steel thickness-top 5/16"
Certified according to applicable standards By an accredited laboratory (CAN/USA) Firebox size (Width) 19 5/8""
Combustion technology Non-catalytic Firebox size (Height) 11 7/8"

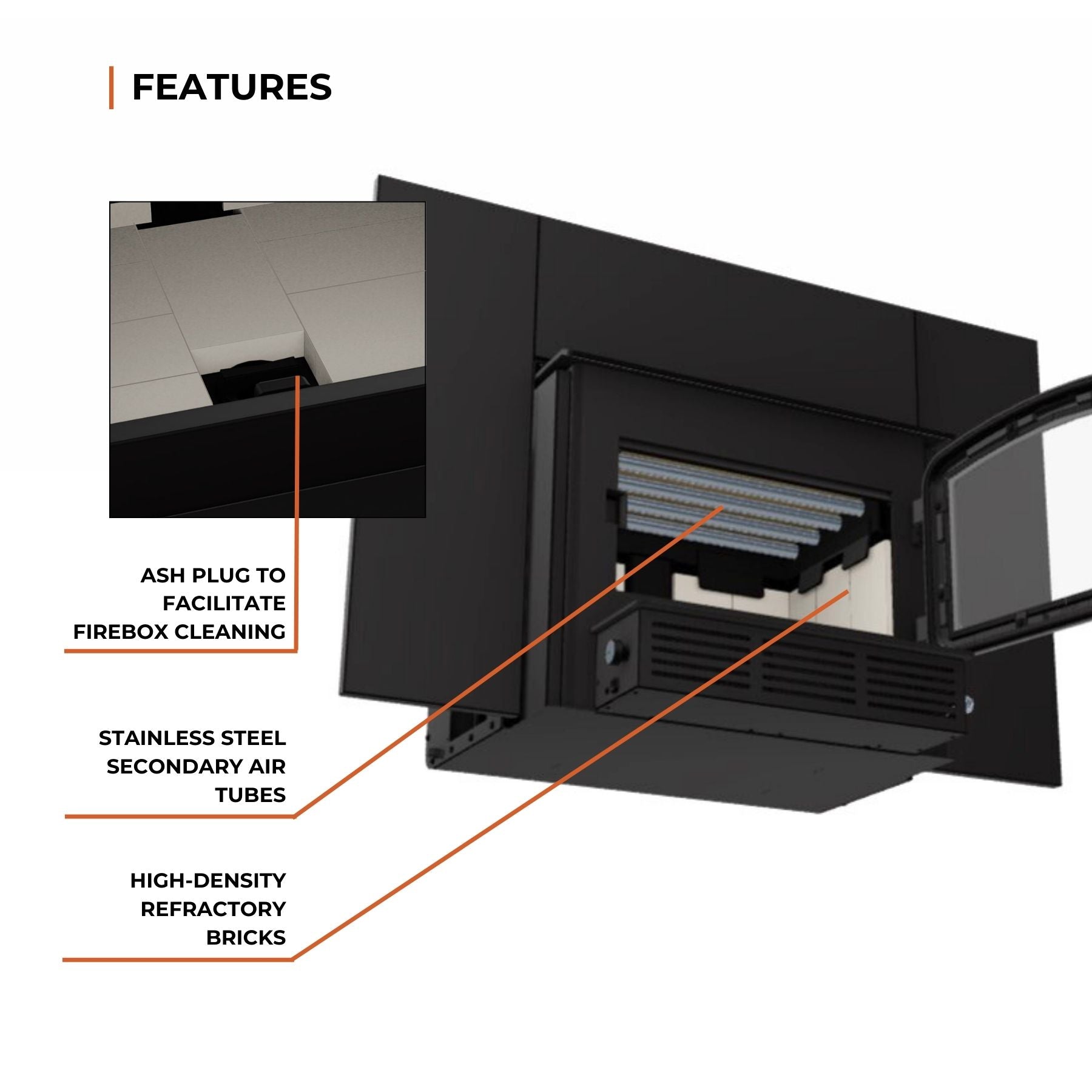

Stainless-steel secondary-air system Yes Firebox size (Depth) 13 1/2"
Flue outlet diameter 6" Maximum log length 18"
Distance-center of the flue outlet to back unit 5 3/4" Log positioning Loading over width
Distance-center of the flue outlet to side unit 12 3/4" Firebox lined with refractory bricks Yes
Recommended chimney diameter 6" Baffle type High quality vermiculite
Type of chimney Liner - ULC-S635, CAN/ULC-S640, UL1777 Minimum fireplace opening (Width) 27 1/2""
Minimum chimney height 12' Minimum fireplace opening (Height) 21 1/2"
Overall dimension (Width) 27 1/4" Minimum fireplace opening (Depth) 12 3/4"
Overall dimension (Height) 21 1/4" High-efficiency certified appliance Yes, EPA 2020 approved
Overall dimension (Depth) 22 3/8" Canadian Standard (emissions) CSA B415.1-10
Door type Single, glass with cast iron frame USA Standard (emissions) EPA
Door opening size (Width) 17 1/4" Canadian Standard (safety) ULC S628
Door opening size (Height) 8 3/4" USA Standard (safety) UL 1482, UL 737
Glass type Ceramic glass Warranty Limited lifetime
Glass surface - W x H 15 3/4" x 9 3/4" Shipping weight 360 lb (163 kg)
Steel thickness-body 3/16" Approved as add-on to an existing furnace No

Clearances

Canada United States
Clearance - Combustible side wall to unit 16" 16"
Clearance - Combustible side mantle to unit 9" 9"
Clearance - Combustible top mantle to unit 27" 27"
Clearance - Top of the unit to a 12" combustible mantle shelf 27" 27"
Clearance - Base of the unit to ceiling** 84" 84"
Manuals & Instructions

Consult the available manuals and leaflets for more information on performance, installation and use requirements, etc.



Replacement Parts

Browse all available replacement parts for this model.
