| Mobile home approved |
No |
Steel thickness-body |
3/16" |
| Premium quality blower included (CFM) |
144 |
Steel thickness-top |
1/4" |
| Certified according to applicable standards |
By an accredited laboratory (CAN/USA) |
Firebox size (Width) |
21" |
| Combustion technology |
Non-catalytic |
Firebox size (Height) |
12" |

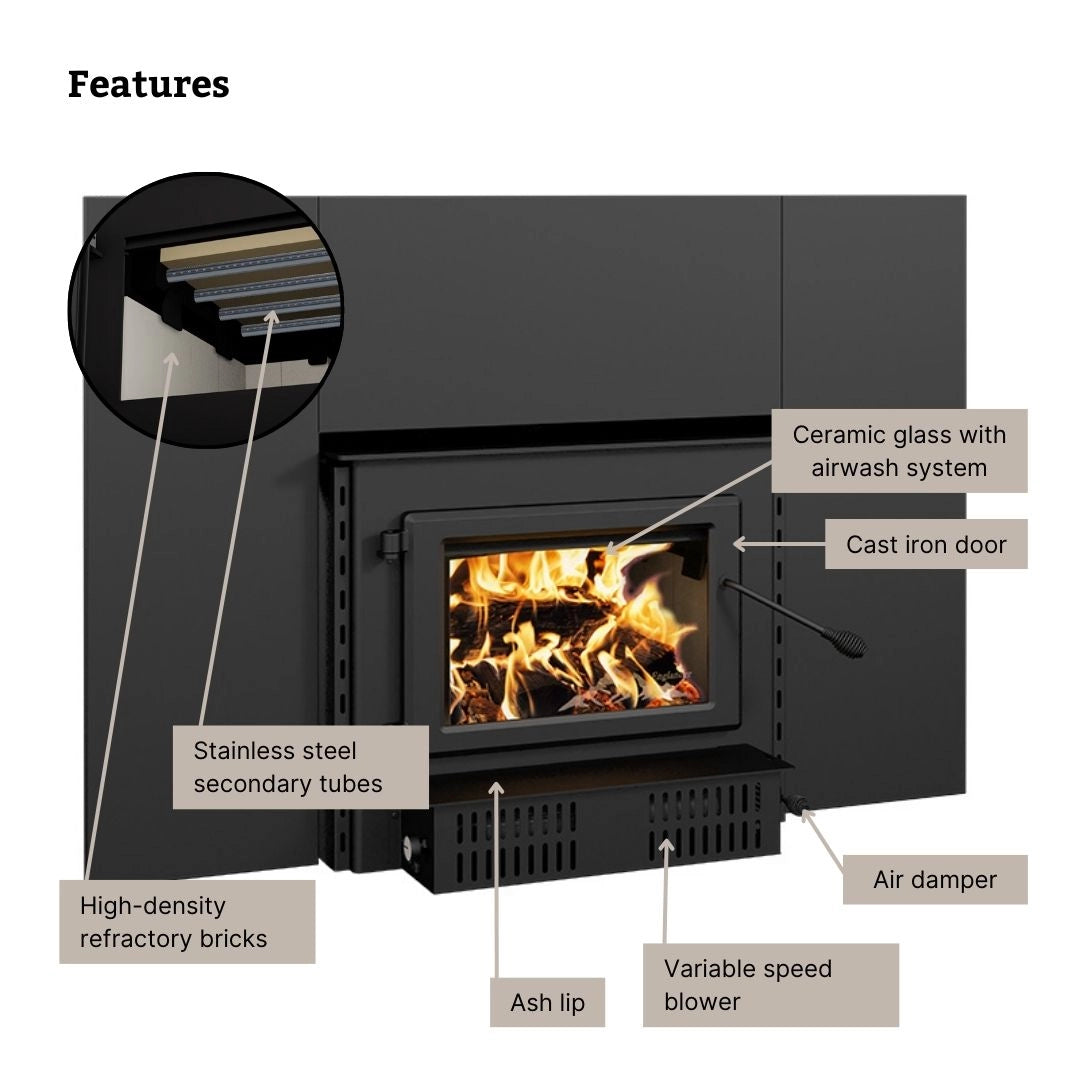

| Stainless-steel secondary-air system |
Yes |
Firebox size (Depth) |
16 1/2" |
| Flue outlet diameter |
6" |
Maximum log length |
20" oriented East-West |
| Distance-center of the flue outlet to back unit |
6 3/4" |
Log positioning |
Loading over width |
| Distance-center of the flue outlet to side unit |
13 1/2" |
Firebox lined with refractory bricks |
Yes |
| Recommended chimney diameter |
6" |
Baffle type |
High quality vermiculite |
| Type of chimney |
Liner ULC-S635, CAN/ULC-S640, UL 1777 |
Minimum fireplace opening (Width) |
28 7/8" |
| Minimum chimney height |
12' |
Minimum fireplace opening (Height) |
23 3/8" |
| Overall dimension (Width) |
50" |
Minimum fireplace opening (Depth) |
15 3/4" |
| Overall dimension (Height) |
34" |
High-efficiency certified appliance |
Yes, EPA 2020 approved |
| Overall dimension (Depth) |
26 1/2" |
Canadian Standard (emissions) |
CSA B415.1-10 |
| Door type |
Single, glass with cast iron frame |
USA Standard (emissions) |
EPA |
| Door opening size (Width) |
17 1/2" |
Canadian Standard (safety) |
ULC S628 |
| Door opening size (Height) |
9" |
USA Standard (safety) |
UL 1482, UL 737 |
| Glass type |
Ceramic glass |
Warranty |
Limited 5 years |
| Glass surface - W x H |
14 7/8" x 9 1/4" |
Shipping weight |
365 lb (165 kg) |
