ESCAPE 1800-I + FACEPLATE + 25' LINER KIT

SKU: DB03127K
Sale price $2,549.00 CADRegular price
Regular price $2,549.00 CAD
In stock
ESCAPE 1800-I + FACEPLATE + 25' LINER KIT
ESCAPE 1800-I + FACEPLATE + 25' LINER KIT
Sale price $2,549.00Regular price
Regular price $2,549.00
Trust Badge
Made in Canada Flag Canada USA Flag United States
Dimension 28 3/8"L X 26 3/8"P X 23 1/8"H
Heating Area 500 - 2,100 ft² How to Calculate Heating Area
Maximum Log Length 20"
Full Specifications

Warning: Wood-burning inserts must only be installed inside an existing masonry fireplace and never in a wooden or combustible structure.

Ideal for heating up to 2,100 ft², the Escape 1800 is the ultimate versatile wood insert! With only 2.3 g/h of particulate emissions, this non-catalytic appliance gives off up to 75,000 BTU/h. The Escape 1800 is the perfect choice to update your masonry fireplace and make it efficient!

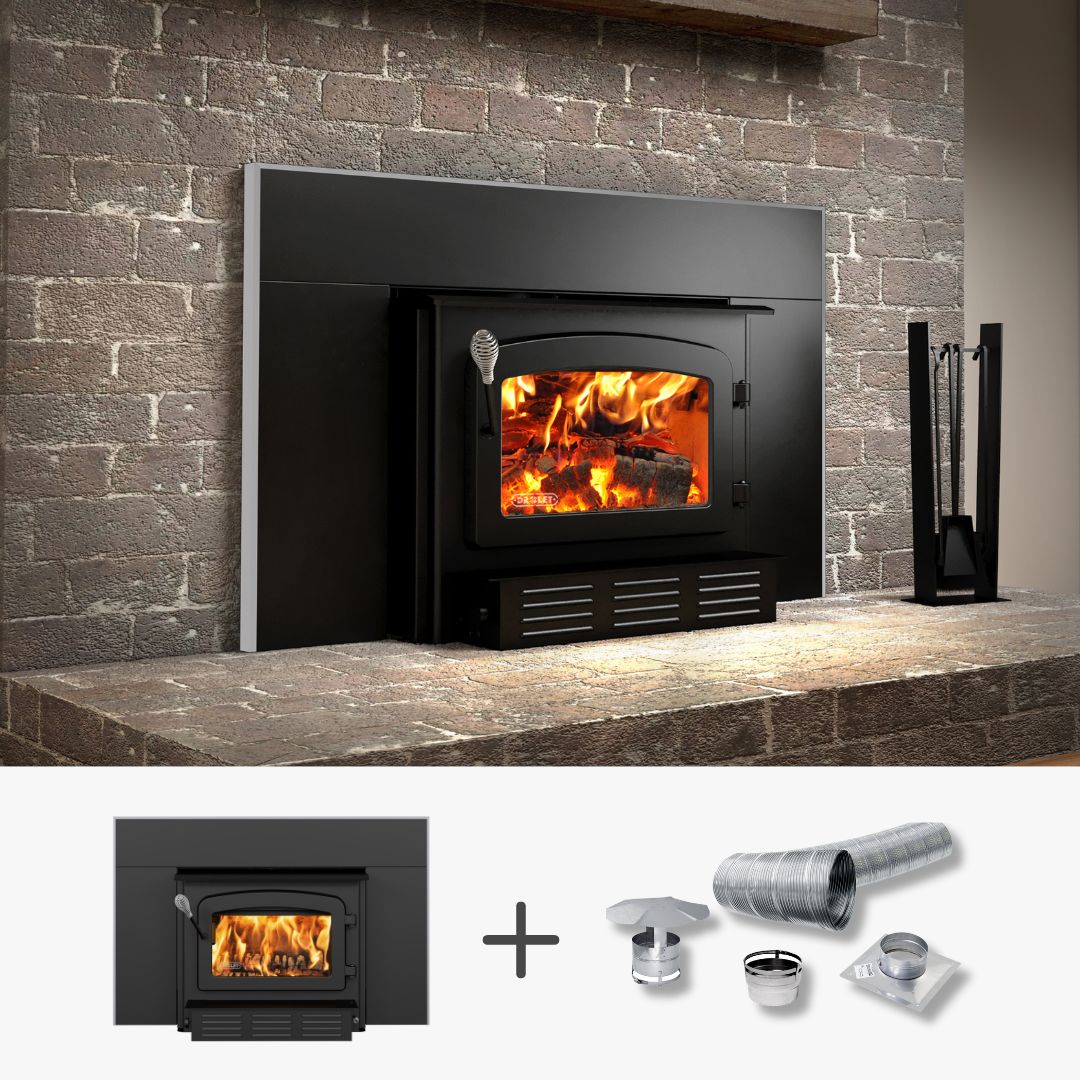

Ready-to-install kit

Take advantage of this cost-effective kit that includes everything you need for the installation of your wood insert. The kit features a 32" x 50" faceplate, a 25' flexible stainless-steel liner, a connector, a 13" x 13" flashing, and a chimney cap. With this ready-to-install kit, you get all the essential components in one convenient purchase for a hassle-free, simplified installation.

Included: pedestal with ash drawer, air mate, ceramic glass, ash lip, air damper

  • Suitable for masonry fireplaces only
  • Burn time up to 8 hours
  • Up to 20" logs
  • 2.4 ft³ firebox
  • Robust 5/16" steel reinforced with a stainless steel heat shield
  • Glass airwash system for a cleaner view of the flames
  • EPA certified
  • Proudly made in Canada and the USA
  • Limited lifetime warranty

Any installation must be done according to the data and drawings detailed in the owner’s manual.

Full Description

Specifications

Appliance Performance

Fuel type Dry cordwood (16" recommended) Maximum overall heat output rate 44,500 BTU/h (13.04 kW)
Heating area 500 - 2,100 ft² Average overall efficiency - dry cordwood (HHV) 72 %
Overall firebox volume 2.4 ft³ Average overall efficiency - dry cordwood (LHV) 77 %
EPA loading volume 1.95 ft³ Optimum efficiency 79 %
Maximum burn time 8 h Optimum heat transfer efficiency 76 %
Maximum heat output - dry cordwood 75,000 BTU/h (22.0 kW) Average particulate emission rate 2.3 g/h
Minimum overall heat output rate 14,200 BTU/h (4.16 kW) Average CO 69 g/h

General Features

Premium quality blower included (CFM) 144 CFM included Steel thickness-top 5/16"
Certified according to applicable standards By an accredited laboratory (CAN/USA) Firebox size (Width) 21"
Combustion technology Non-catalytic Firebox size (Height) 11 7/8"
Stainless-steel secondary-air system Yes Firebox size (Depth) 16 1/2"
Flue outlet diameter 6" Maximum log length 20"
Distance-center of the flue outlet to back unit 6 7/8" Log positioning Loading over width
Distance-center of the flue outlet to side unit 13 1/2" Firebox lined with refractory bricks Yes
Recommended chimney diameter 6" Baffle type High quality vermiculite
Type of chimney Liner - ULC-S635, CAN/ULC-S640, UL1777 Minimum fireplace opening (Width) 28 7/8"
Minimum chimney height 12' Minimum fireplace opening (Height) 23 3/8"
Overall dimension (Width) 28 3/8" Minimum fireplace opening (Depth) 15 3/4"
Overall dimension (Height) 23 1/8" High-efficiency certified appliance Yes, EPA 2020 approved
Overall dimension (Depth) 26 3/8" Canadian Standard (emissions) CSA B415.1-10
Door type Single, glass with cast iron frame USA Standard (emissions) EPA / ASTM WK47329
Door opening size (Width) 17 1/2" Canadian Standard (safety) ULC S628
Door opening size (Height) 9" USA Standard (safety) UL 1482, UL 737
Glass type Ceramic glass Warranty Limited lifetime
Glass surface - W x H 16" x 9 1/4" Shipping weight 488 lb (221 kg)
Steel thickness-body 3/16" Approved as add-on to an existing furnace No

Clearances

Canada United States
Clearance - Combustible side wall to unit 16" 16"
Clearance - Combustible side mantle to unit 9" 9"
Clearance - Combustible top mantle to unit 27" 27"
Clearance - Top of the unit to a 12" combustible mantle shelf 27" 27"
Clearance - Base of the unit to ceiling** 84" 84"
Clearance - Floor protection in front of the unit (from door opening) 16" 18"
Manuals & Instructions

Consult the available manuals and leaflets for more information on performance, installation and use requirements, etc.



Replacement Parts

Browse all available replacement parts for this model.
