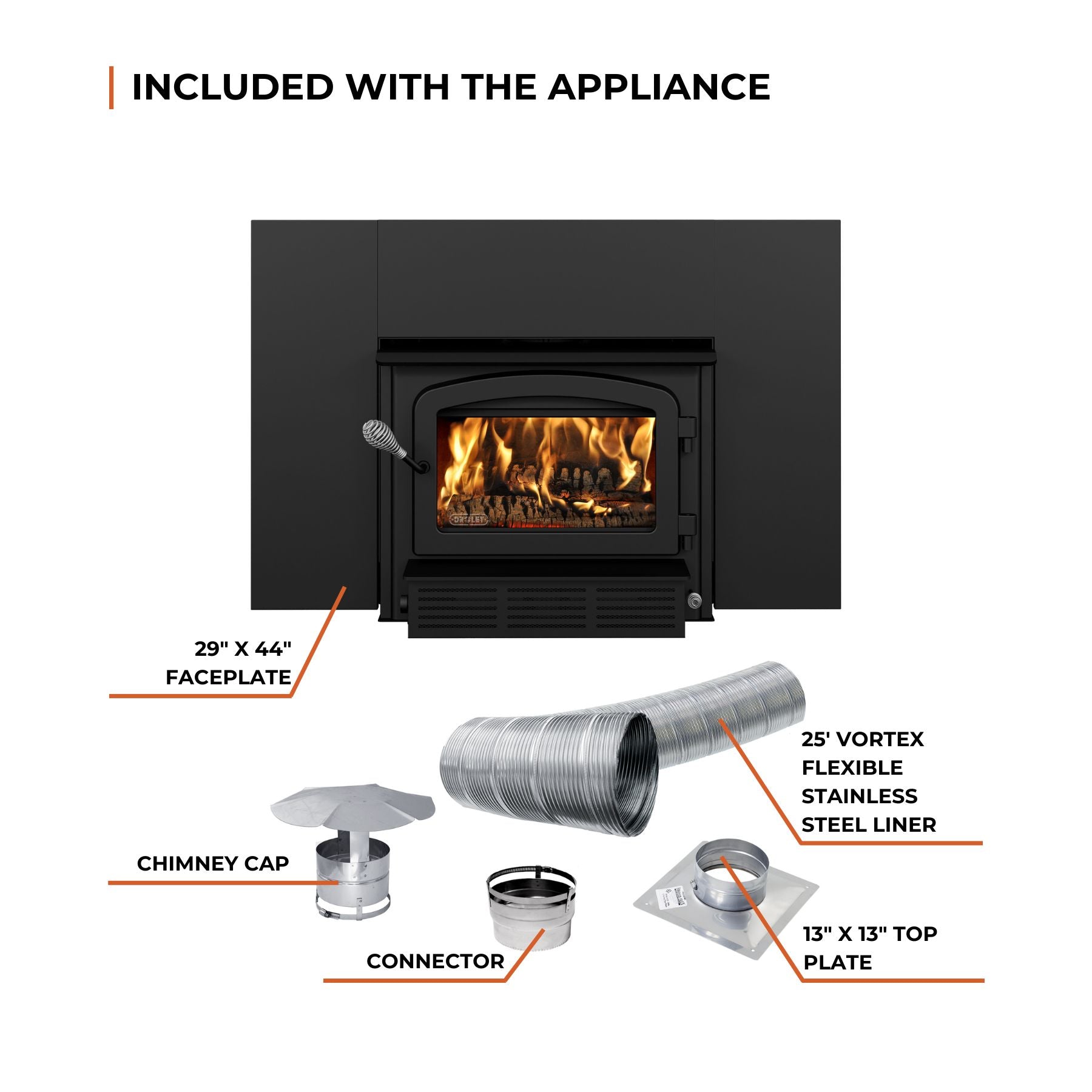

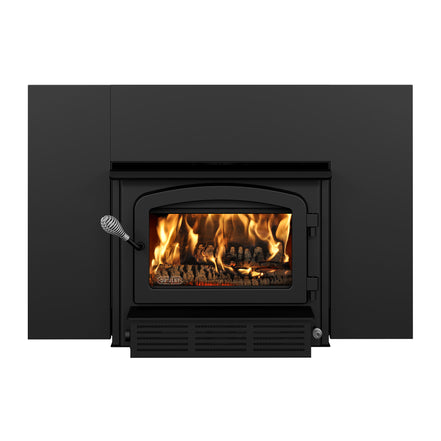

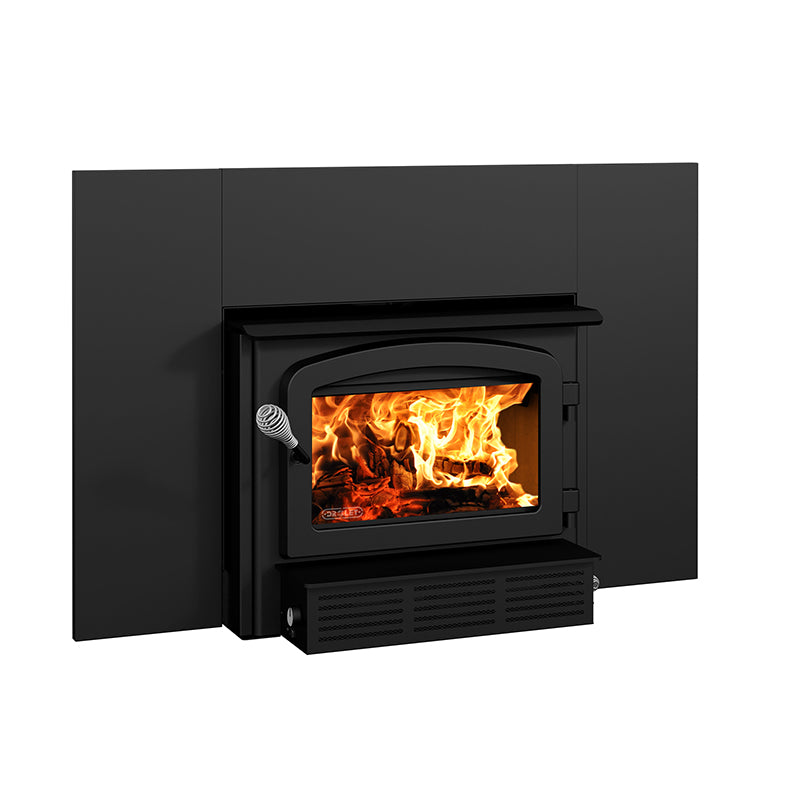

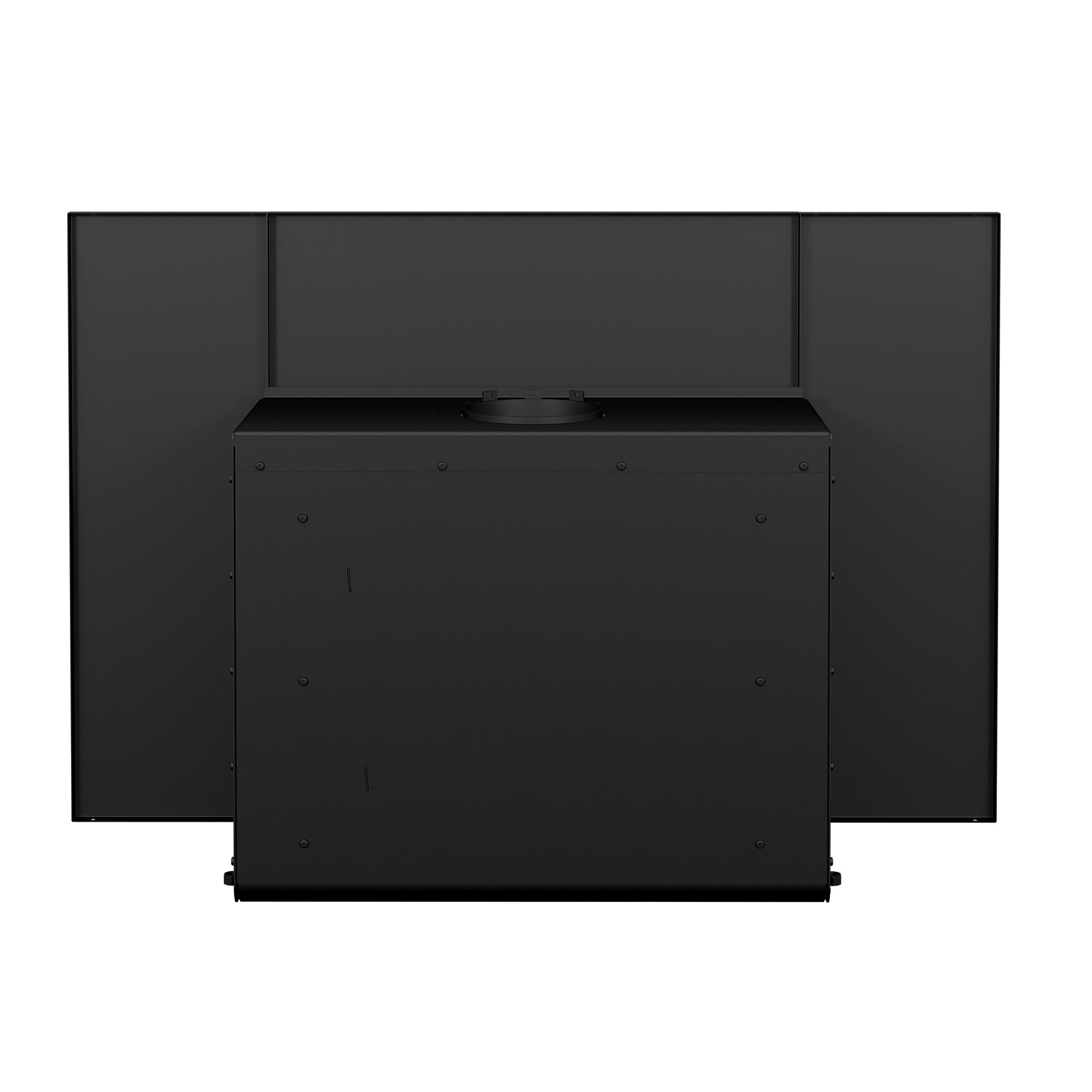

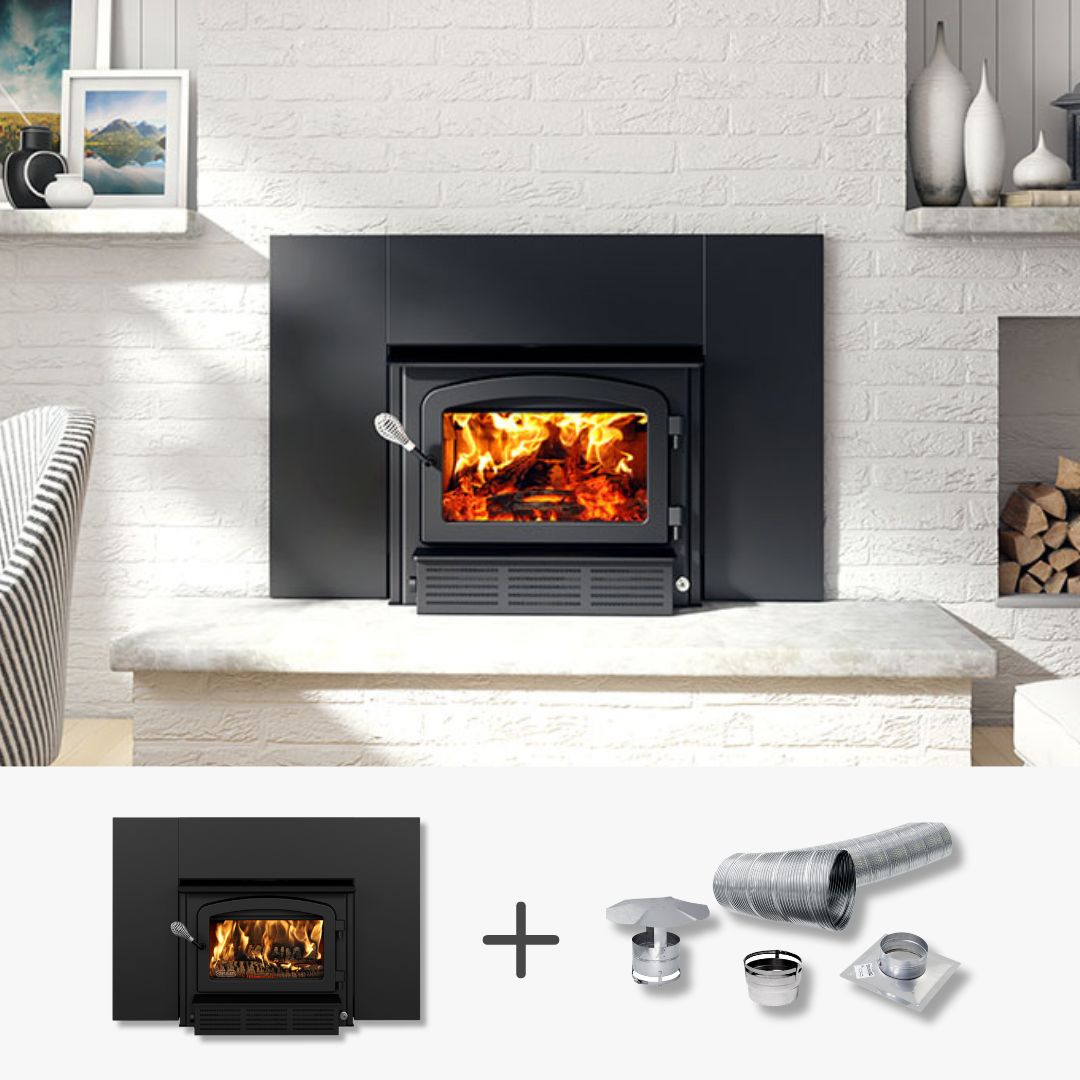

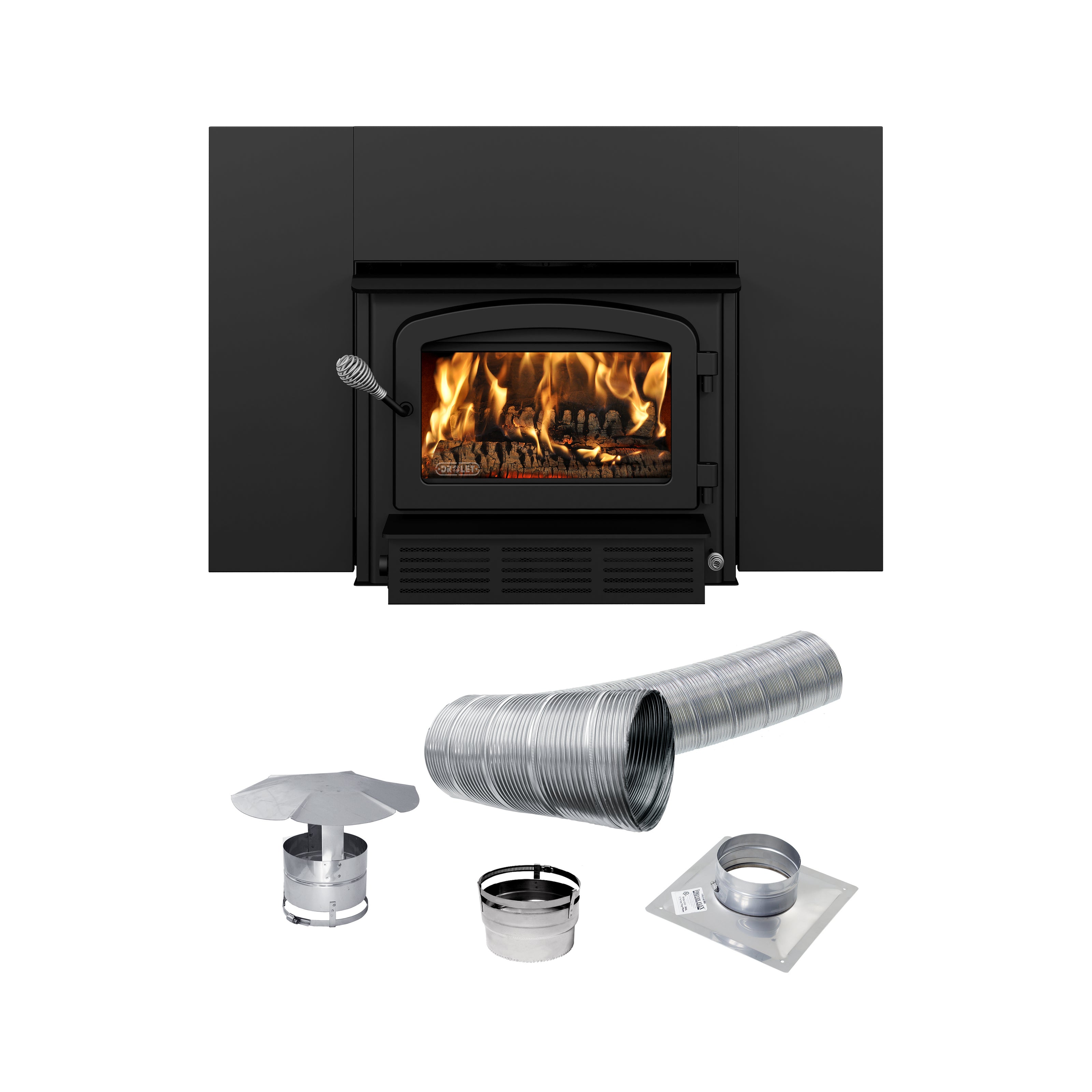

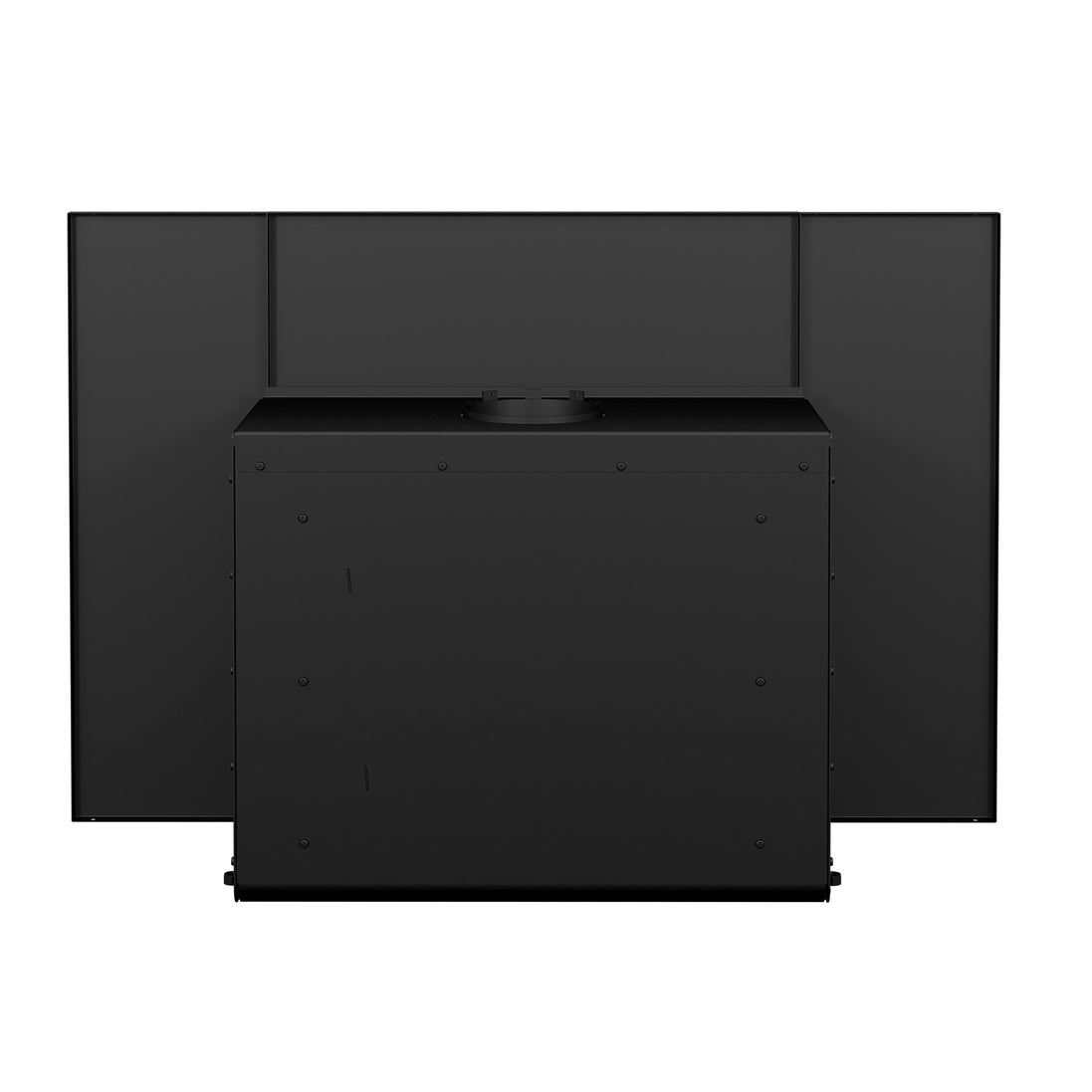

ESCAPE 1500-I + FACEPLATE + 25' LINER KIT

SKU: DB03137K
Sale price $2,299.00 CADRegular price
Regular price $2,299.00 CAD

Full Description
🌍 Made in: Canada Flag Canada USA Flag United States
📏 Dimension: 27 1/4"L X 22 3/8"P X 21 1/4"H
🏠 Heating Area: 500 - 1,800 ft²
🔥 Maximum Log Length: 18"
Full Specifications
Specifications

Appliance Performance

Fuel type Dry cordwood (16" recommended) Maximum overall heat output rate 52,200 BTU/h (15.3 kW)
Heating area 500 - 1,800 ft² Average overall efficiency - dry cordwood (HHV) 68 %
Overall firebox volume 1.86 ft³ Average overall efficiency - dry cordwood (LHV) 73 %
EPA loading volume 1.44 ft³ Optimum efficiency 76 %
Maximum burn time 7 h Optimum heat transfer efficiency 75 %
Maximum heat output - dry cordwood 65,000 BTU/h (19 kW) Average particulate emission rate 2.4 g/h
Minimum overall heat output rate 9,800 BTU/h (2.87 kW) Average CO 103 g/h

General Features

Premium quality blower included (CFM) 144 CFM included Steel thickness-top 5/16"
Certified according to applicable standards By an accredited laboratory (CAN/USA) Firebox size (Width) 19 5/8""
Combustion technology Non-catalytic Firebox size (Height) 11 7/8"
Stainless-steel secondary-air system Yes Firebox size (Depth) 13 1/2"
Flue outlet diameter 6" Maximum log length 18"
Distance-center of the flue outlet to back unit 5 3/4" Log positioning Loading over width
Distance-center of the flue outlet to side unit 12 3/4" Firebox lined with refractory bricks Yes
Recommended chimney diameter 6" Baffle type High quality vermiculite
Type of chimney Liner - ULC-S635, CAN/ULC-S640, UL1777 Minimum fireplace opening (Width) 27 1/2""
Minimum chimney height 12' Minimum fireplace opening (Height) 21 1/2"
Overall dimension (Width) 27 1/4" Minimum fireplace opening (Depth) 12 3/4"
Overall dimension (Height) 21 1/4" High-efficiency certified appliance Yes, EPA 2020 approved
Overall dimension (Depth) 22 3/8" Canadian Standard (emissions) CSA B415.1-10
Door type Single, glass with cast iron frame USA Standard (emissions) EPA
Door opening size (Width) 17 1/4" Canadian Standard (safety) ULC S628
Door opening size (Height) 8 3/4" USA Standard (safety) UL 1482, UL 737
Glass type Ceramic glass Warranty Limited lifetime
Glass surface - W x H 15 3/4" x 9 3/4" Shipping weight 360 lb (163 kg)
Steel thickness-body 3/16" Approved as add-on to an existing furnace No

Clearances

Canada United States
Clearance - Combustible side wall to unit 16" 16"
Clearance - Combustible side mantle to unit 9" 9"
Clearance - Combustible top mantle to unit 27" 27"
Clearance - Top of the unit to a 12" combustible mantle shelf 27" 27"
Clearance - Base of the unit to ceiling** 84" 84"
