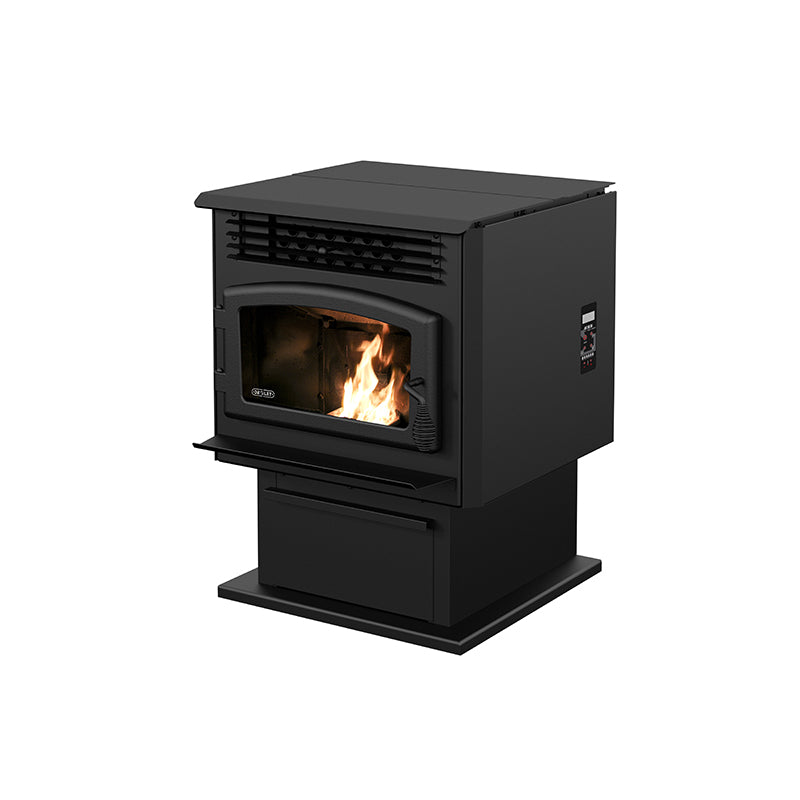

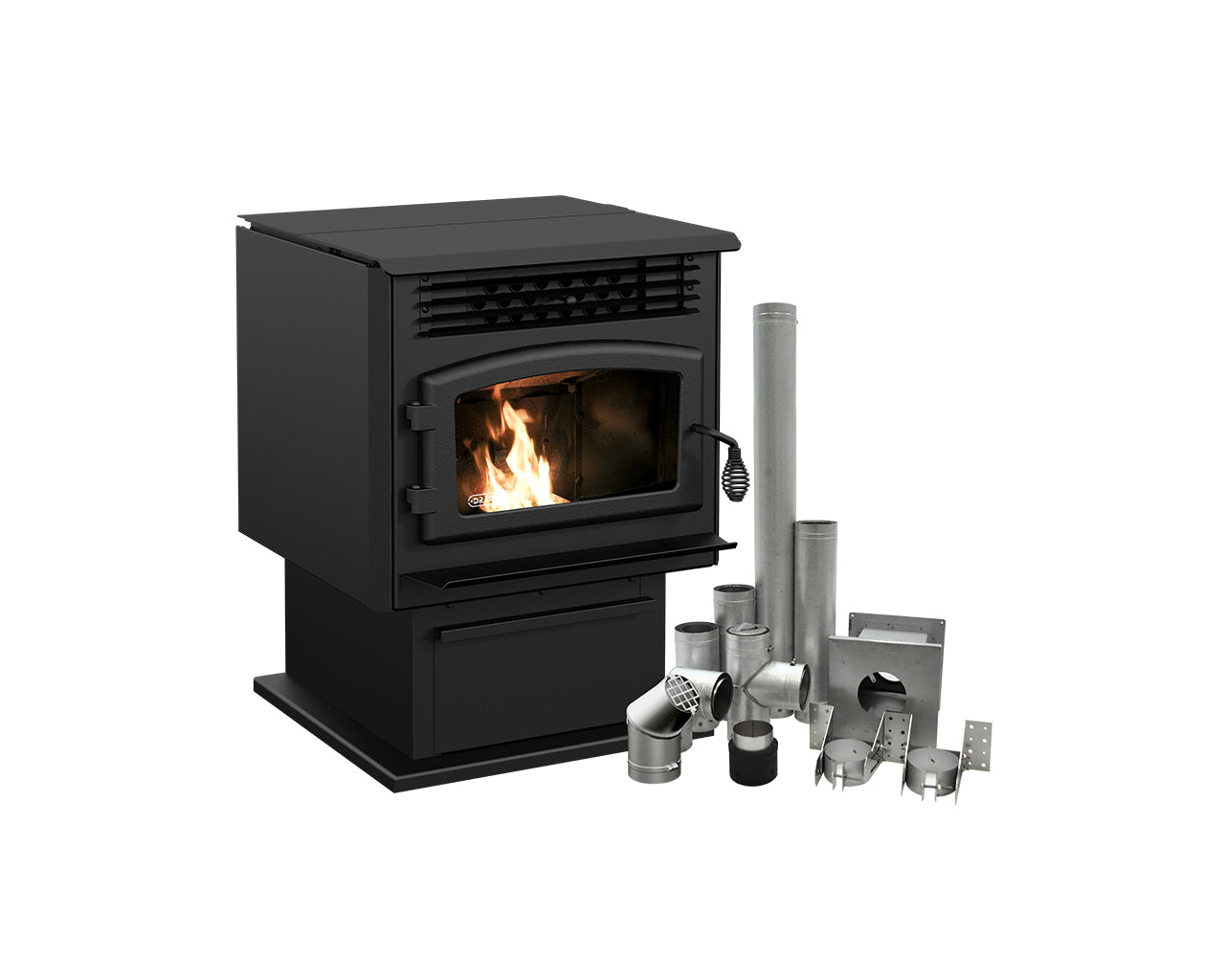

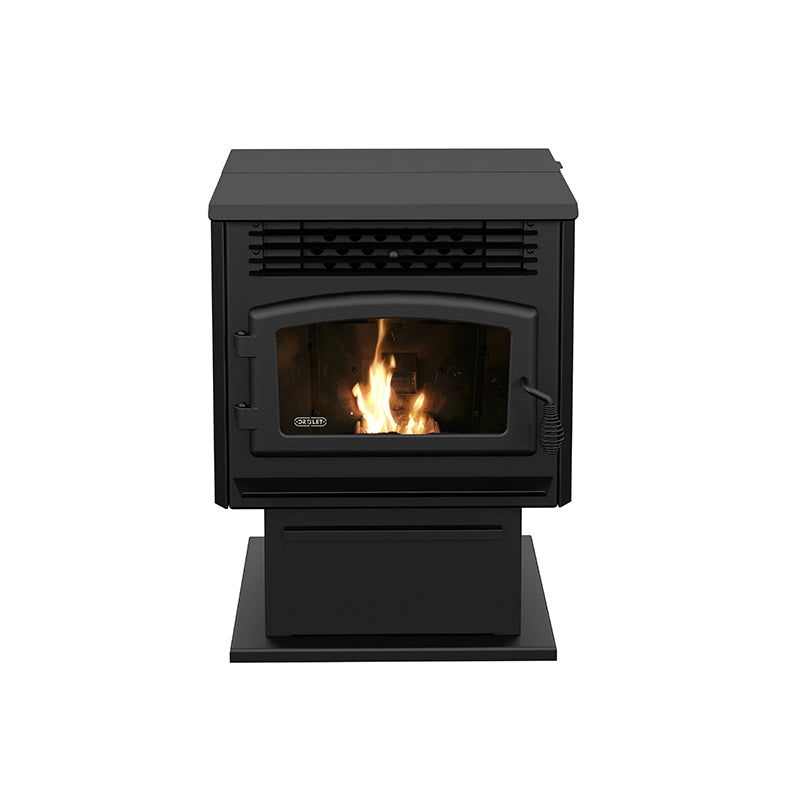

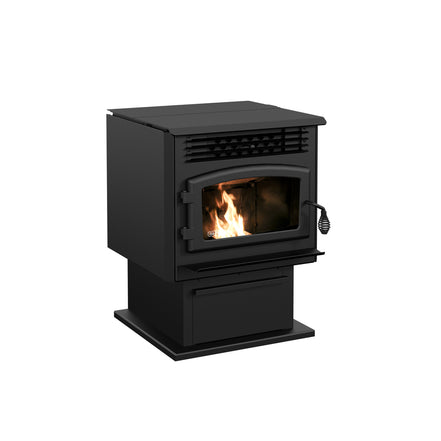

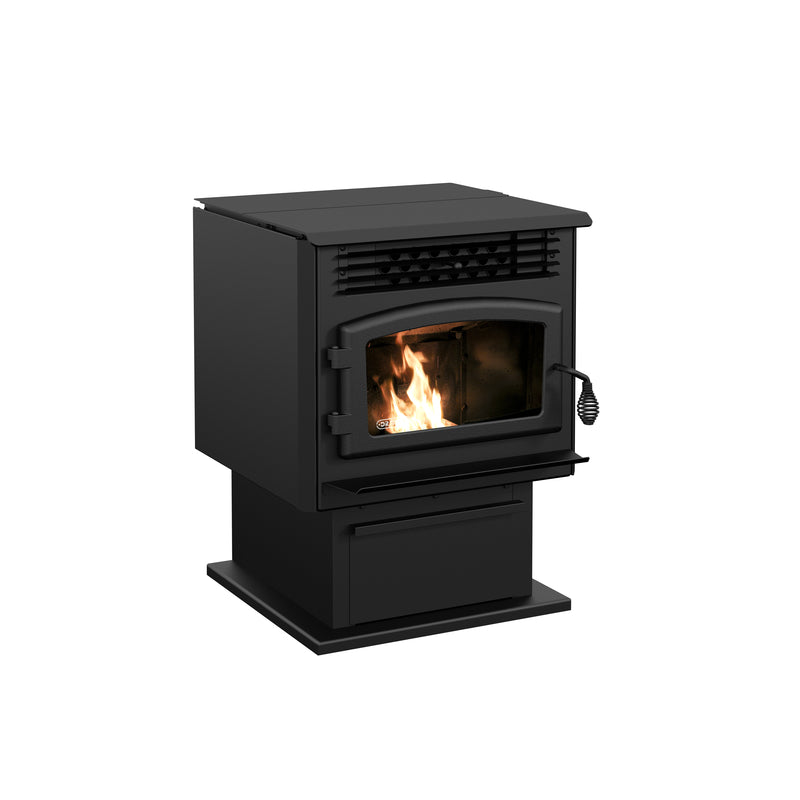

ECO-55 - WITH GROUND FLOOR KIT

SKU: DP00070KVG
Sale price $3,730.00 CADRegular price $0.00 CAD
Regular price $3,730.00 CAD

Full Description
🌍 Made in: Canada Flag Canada
📏 Dimension: 25 1/4"L X 29 1/2"P X 32 5/8"H
🏠 Heating Area: 500 - 2,000 ft²
🔥 Maximum Burn Time: 51 h
Full Specifications
Specifications

Appliance Performance

Fuel type Pellet (Premium grade or better) Maximum average overall efficiency (LHV) 75.8 %
Heating area 500 - 2,000 ft² Optimum efficiency 78.4%
Hopper capacity 60 lb (27 kg) Optimum heat transfer efficiency 73 %
Maximum burn time 51 h Burn rate 1.2 - 4.7 lb/h
Maximum heat input rate 39,260 BTU/h (11.5 kW) Average particulate emission rate 0.96 g/h
Minimum overall heat output rate 6,648 BTU/h (1.95 kW) Average CO 7.6 g/h
Maximum overall heat output rate 28,540 BTU/h (8.36 kW) Average electrical power consumption for ignition cycle 3.02A (360 W)
Minimum average overall efficiency (HHV) 70.3 % Average electrical power consumption for continuous operation 1.3 - 2.5A (51 - 140 W)

General Features

Alcove installation approved Yes Noise level at 6 feet 47 dBa (+/- 3 dBa) - 60 dBa (+/- 3 dBa)
Mobile home approved Yes, with fresh air intake Door type Single, glass with cast iron frame
Certified according to applicable standards By an accredited laboratory (CAN/USA) Glass type Ceramic glass
Premium quality blower included (CFM) 176 CFM included Glass surface - W x H 15 3/4" x 8 1/8"
Combustion technology Top-feed High-efficiency certified appliance Yes, EPA 2020 approved
Baffle type Stainless steel Canadian Standard (emissions) CSA B415.1-10
Flue outlet diameter 3" USA Standard (emissions) EPA, ASTM E2779
Recommended chimney diameter 3" | 4" Canadian Standard (safety) ULC S627
Type of chimney ULC/ORD-C441, CAN/ULC S609, UL 641 (TYPE L) USA Standard (safety) UL 1482, ASTM E1509
Overall dimension (Width) 25 1/4" Warranty Limited lifetime
Overall dimension (Height) 32 5/8" Shipping weight 277 lb (126 kg)
Overall dimension (Depth) 29 1/2" Approved as add-on to an existing furnace No
Voltage and frequency 120 VAC / 60 Hz

Clearances

Canada United States
Clearance - Back wall 3" 3"
Clearance - Side wall 6" 6"
Clearance - Corner 3" 3"
Clearance - Base of the unit to ceiling 48" 48"
