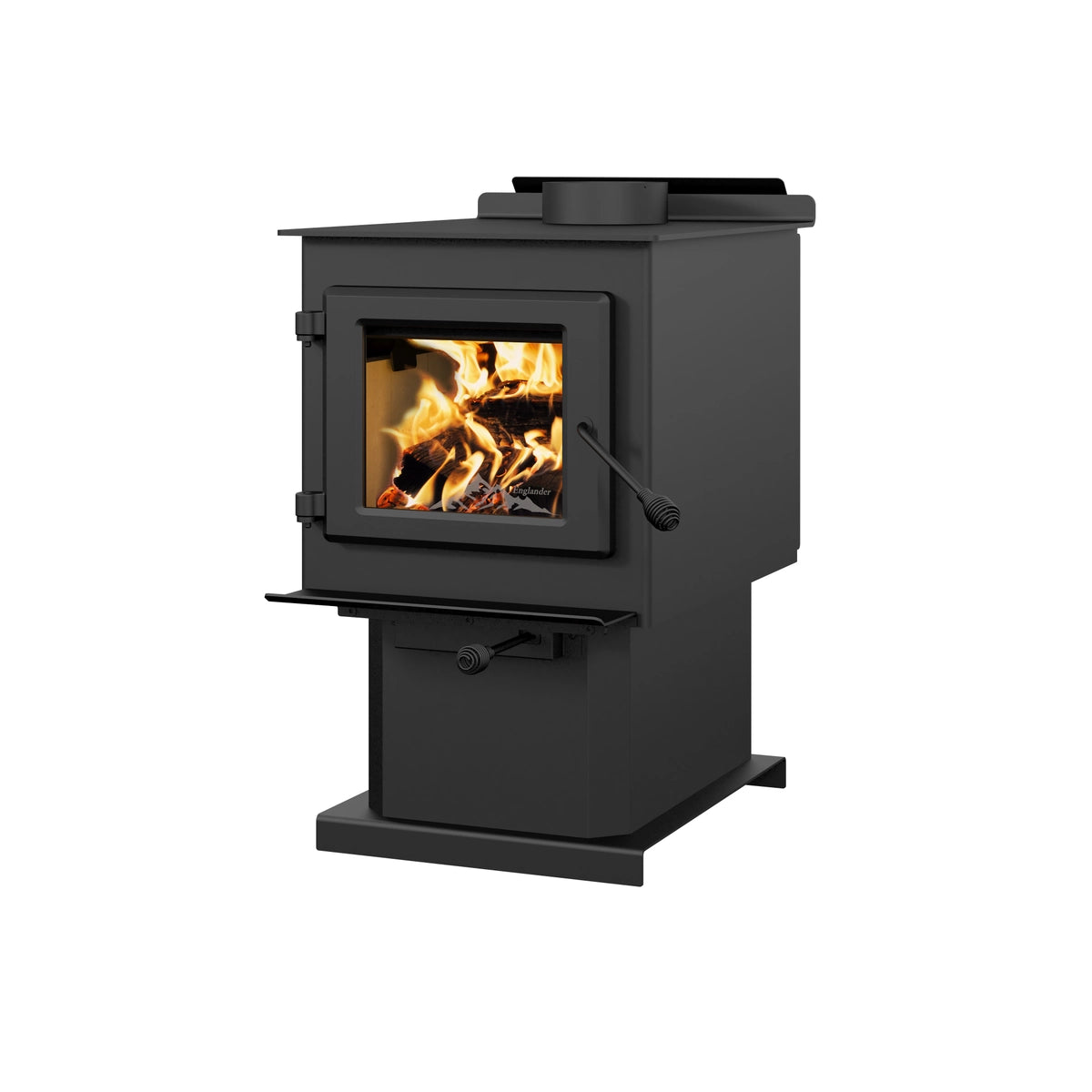

BLUE RIDGE 100
BLUE RIDGE 100

BLUE RIDGE 100

Englander
SKU: ESW0001
60 products in stock
$1,219.00 CAD
$1,219.00 CAD

Our most compact unit in the series, the Blue Ridge 100 is the perfect choice for heating homes up to 1,200 ft². With only 1.8 g/h of particulate emissions, this EPA certified wood stove puts out an impressive 45,000 BTU/h. The bottom of its combustion chamber is deeper than other models in its category and allows a greater accumulation of ashes, and thus able to empty them less frequently. A simple model; reliable and robust.

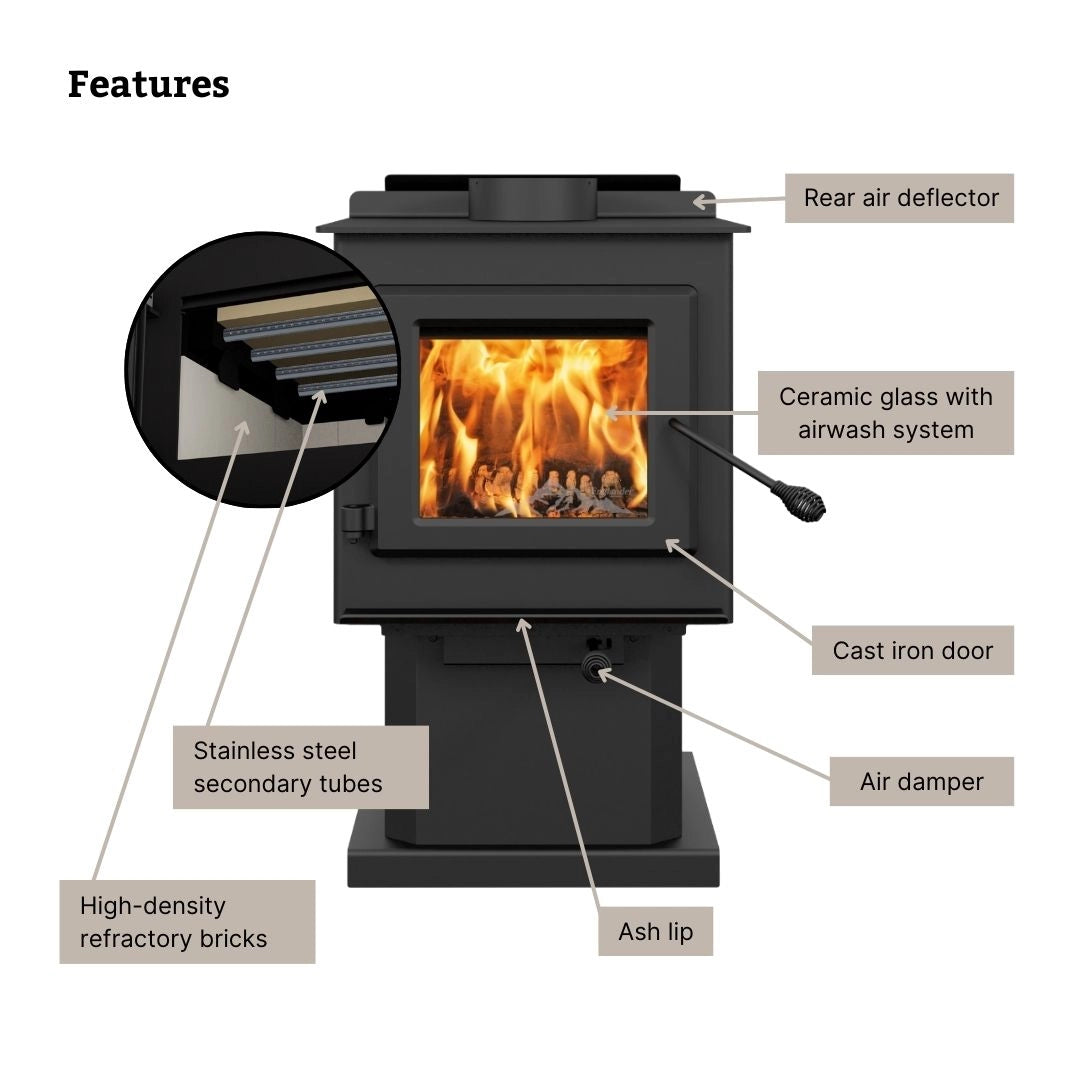

Included: pedestal, ash lip, air intake damper & rear air deflector

  • High efficiency 1.8 ft³ firebox, ideal for tight spaces
  • Up to 5 hours burn time
  • Steel top reinforced with a stainless steel heat shield
  • High density refractory bricks
  • Cast iron door and ceramic glass
  • Glass airwash system for a cleaner view of the flames
  • EPA certified
  • Proudly made in USA and Canada
  • Non-catalytic combustion system
  • Certified for mobile home and alcove installation

Full Description

🌍 Made in: Canada Flag Canada USA Flag United States

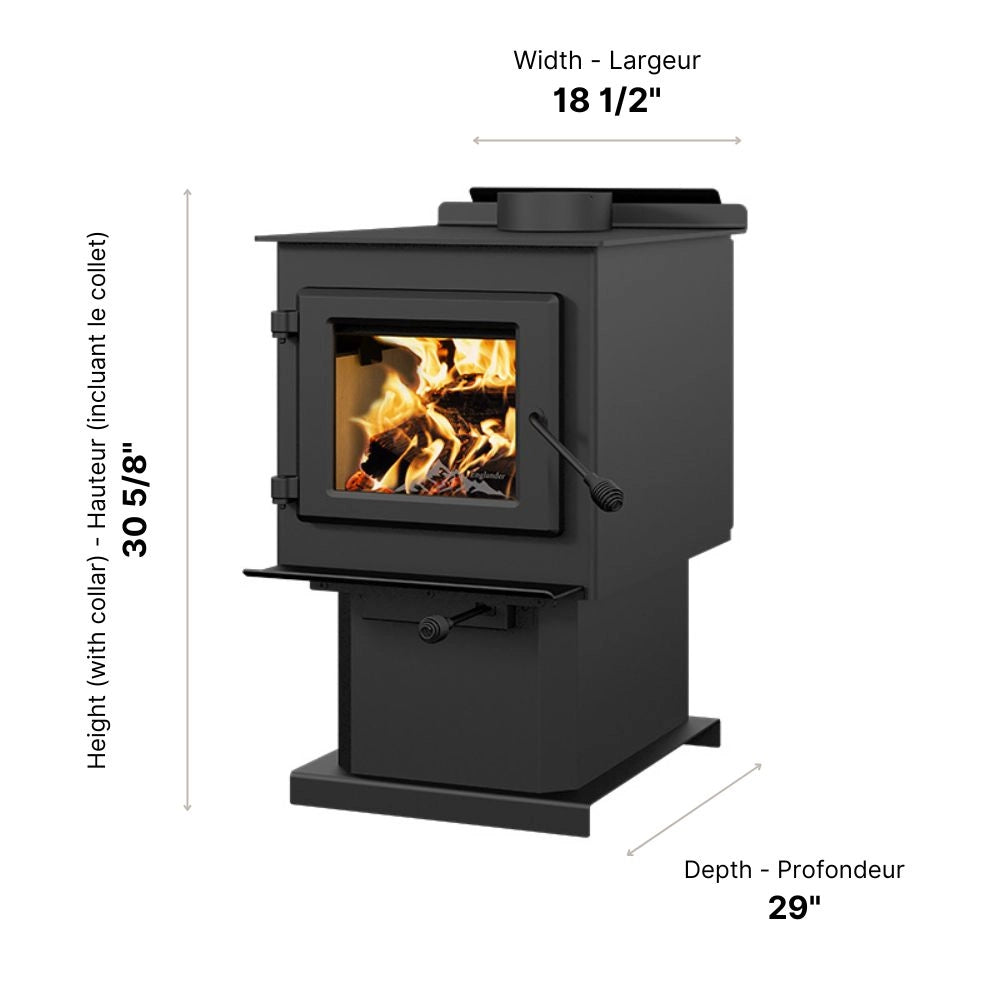

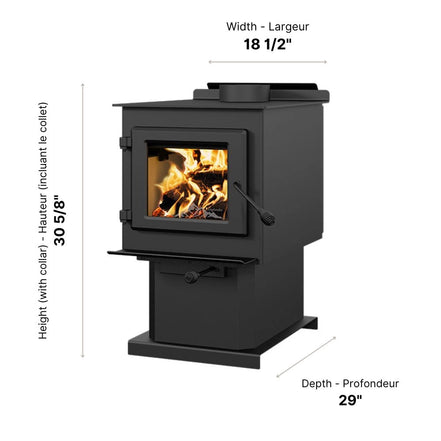

📏 Dimension: 18 1/2"L X 29"P X 30 5/8"H
🏠 Heating Area: 250 - 1,200 ft²
🔥 Maximum Log Length: 17" (16" recommanded)
Full Specifications
Specifications

Appliance Performance

Fuel type Dry cordwood (16" recommended) Maximum overall heat output rate 26,700 BTU/h (7.83 kW)
Heating area 250 - 1,200 ft² Average overall efficiency - dry cordwood (HHV) 74 %
Overall firebox volume 1.8 ft³ Average overall efficiency - dry cordwood (LHV) 79 %
EPA loading volume 1.55 ft³ Optimum efficiency 80 %
Maximum burn time 5 h Optimum heat transfer efficiency 79 %
Maximum heat output - dry cordwood 45,000 BTU/h (13.2 kW) Average particulate emission rate 1.8 g/h
Minimum overall heat output rate 12,124 BTU/h (3.55 kW) Average CO 74 g/h

General Features

Alcove installation approved Yes Glass type Ceramic glass
Mobile home approved Yes, with fresh air intake Glass surface - W x H 9 5/8" x 8 1/8"
Certified according to applicable standards By an accredited laboratory (CAN/USA) Steel thickness - body 3/16"
Overall dimension (Width) 18 1/2" Steel thickness-top 1/4"
Overall dimension (Height) 30 5/8" Firebox size (Width) 14 1/4"
Overall dimension (Depth) 29" Firebox size (Height) 11 3/4"

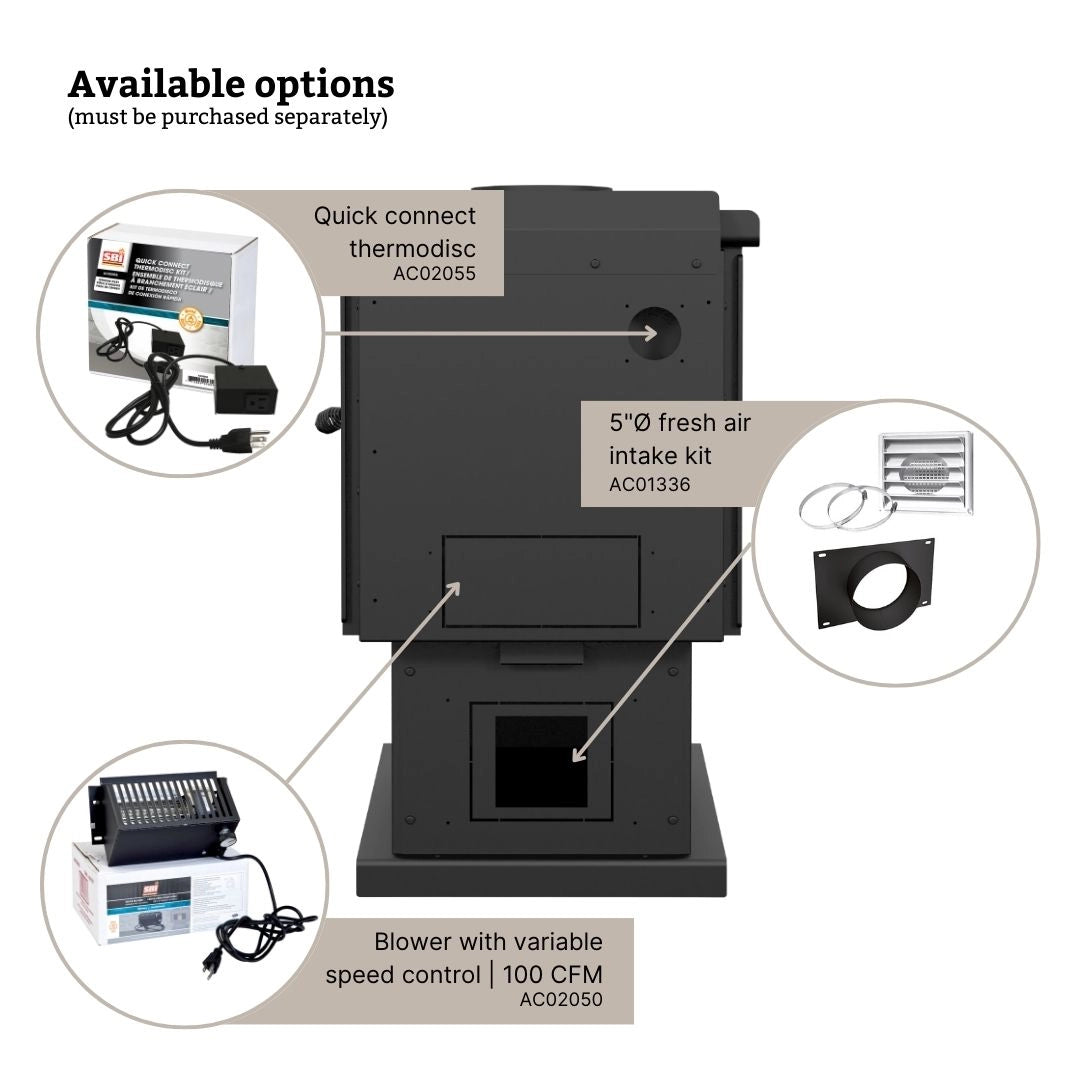

Premium quality blower included (CFM) Optional Firebox size (Depth) 19 3/8"
Combustion technology Non-catalytic Log positioning Loading over depth
Stainless-steel secondary-air system Yes Maximum log length 17" (16" recommanded)
Flue outlet diameter 6" Firebox lined with refractory bricks Yes
Distance - center of the flue outlet to back unit 6 5/8" Baffle type High quality vermiculite
Distance - center of the flue outlet to side unit 9 1/4" High-efficiency certified appliance Yes, EPA 2020 approved
Recommended chimney diameter 6" Canadian Standard (emissions) CSA B415.1-10
Type of chimney CAN/ULC S629, UL 103 HT (2100 °F) USA Standard (emissions) EPA
Minimum chimney height 12' Canadian Standard (safety) ULC S627
Door type Single, glass with cast iron frame USA Standard (safety) UL 1482, UL 737
Door opening size (Width) 12" Warranty 5 years limited
Door opening size (Height) 7 5/8" Shipping weight 283 lb (128 kg)

Clearances

Canada United States
Single Wall Pipe Double Wall Pipe Single Wall Pipe Double Wall Pipe
Back wall 14″ 6″ 12″ 6″
Side wall 18″ 18″ 18″ 18″
Corner 11″ 7″ 11″ 7″
Base of the unit to ceiling 84″ 84″ 84″ 84″
Manuals & Instructions

Consult the available manuals and leaflets for more information on performance, installation and use requirements, etc.
