| Alcove installation approved |
Yes |
Door opening size (Width) |
16" |
| Mobile home approved |
Yes, with fresh air intake |
Door opening size (Height) |
10 3/4" |
| Certified according to applicable standards |
By an accredited laboratory (CAN) |
Steel thickness - body |
3/16" |
| Overall dimension (Width) |
24 1/4" |
Steel thickness-top |
5/16" |
| Overall dimension (Height) |
32 3/4" |
Firebox size (Width) |
19" |
| Overall dimension (Depth) |
32 1/4" |
Firebox size (Height) |
14 1/8" |
| Premium quality blower included (CFM) |
Optional |
Firebox size (Depth) |
21" |
| Combustion technology |
Non-catalytic |
Log positioning |
Loading over depth |
| Stainless-steel secondary-air system |
Yes |
Maximum log length |
20" |

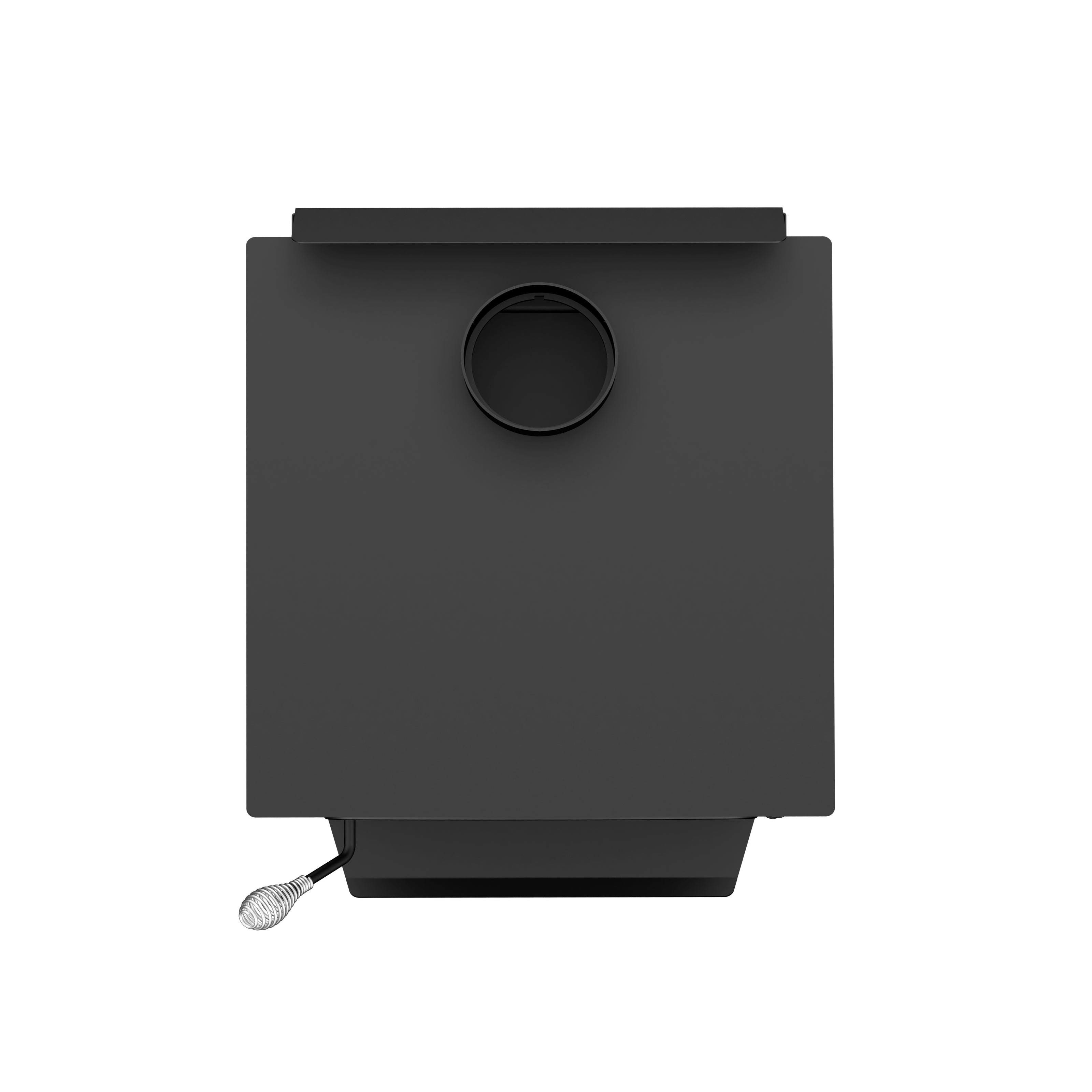

| Flue outlet diameter |
6" |
Firebox lined with refractory bricks |
Yes |
| Distance - center of the flue outlet to back unit |
7 1/2" |
Baffle type |
High quality vermiculite |
| Distance - center of the flue outlet to side unit |
12 1/8" |
Canadian Standard (emissions) |
CSA B415.1-10 |
| Recommended chimney diameter |
6" |
Canadian Standard (safety) |
ULC S627 |
| Type of chimney |
CAN/ULC S629, UL 103 HT (2100 °F) |
Warranty |
Limited lifetime |
| Minimum chimney height |
12' |
Shipping weight |
417 lb (189 kg) |
| Door type |
Cast iron frame with steel inside |
Approved as add-on to an existing furnace |
No |
