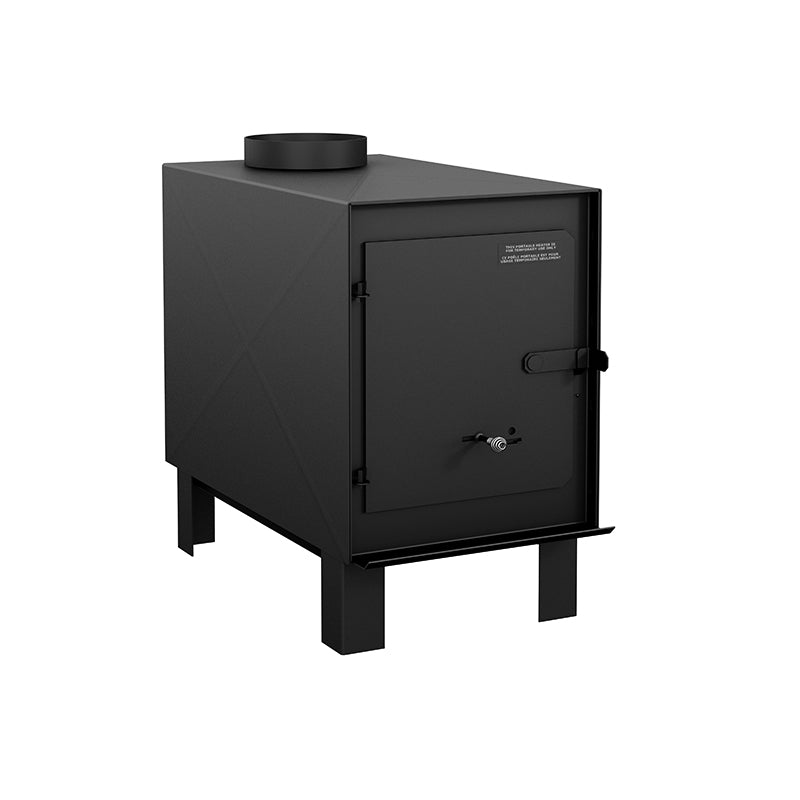

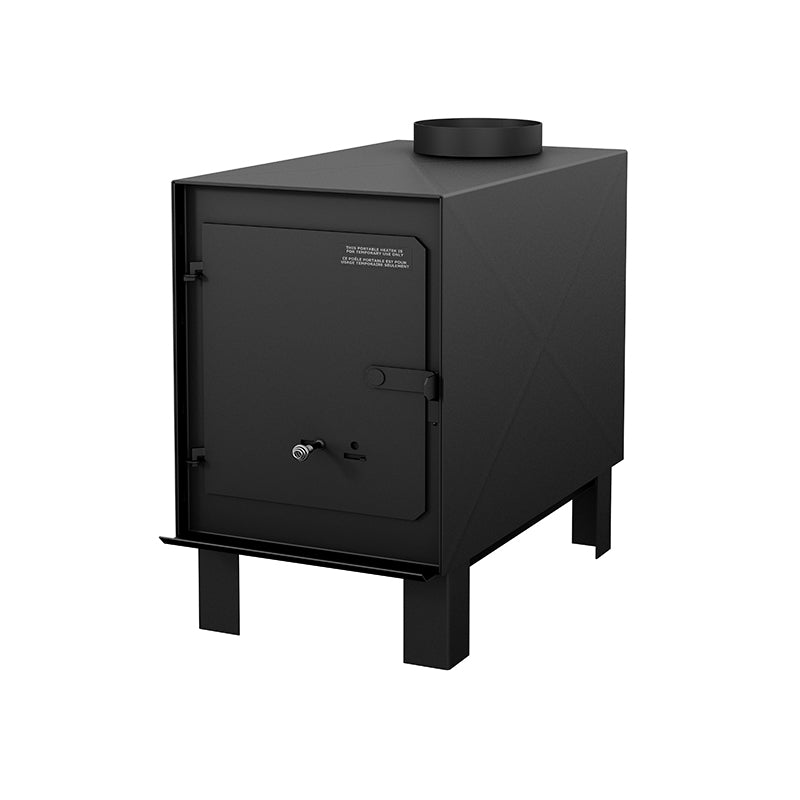

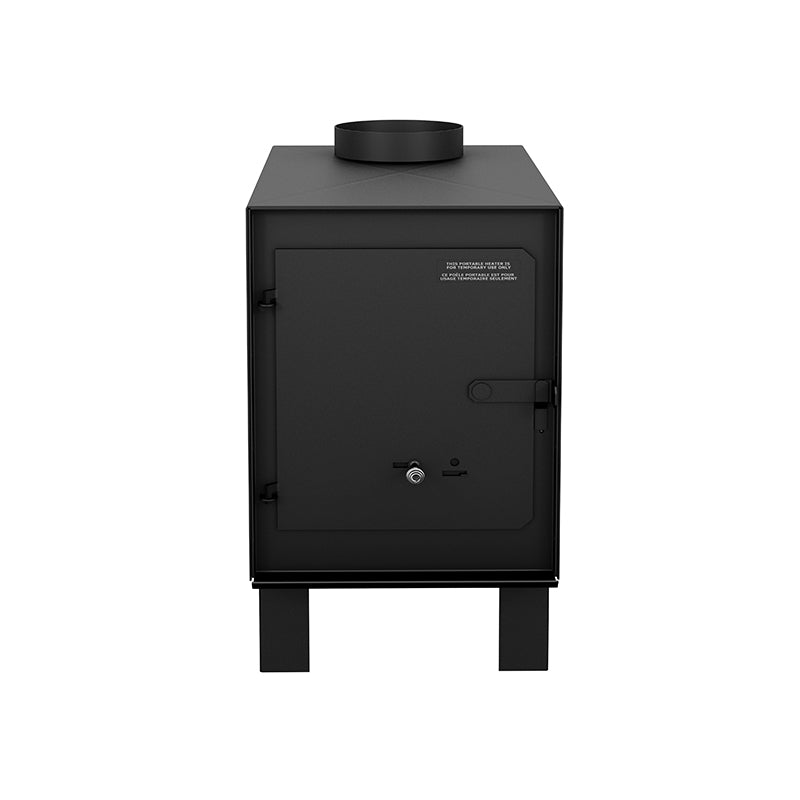

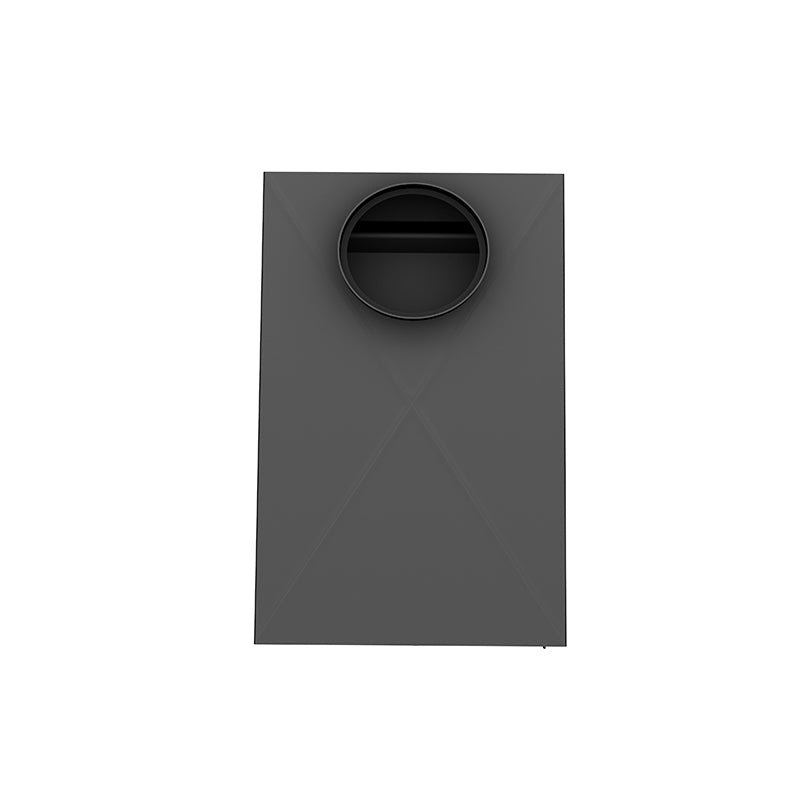

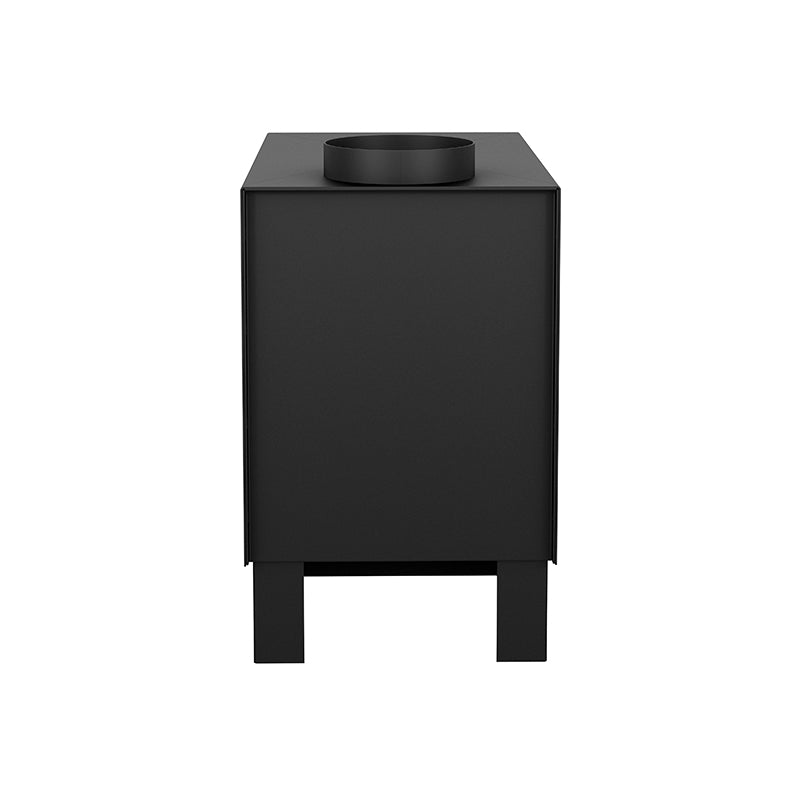

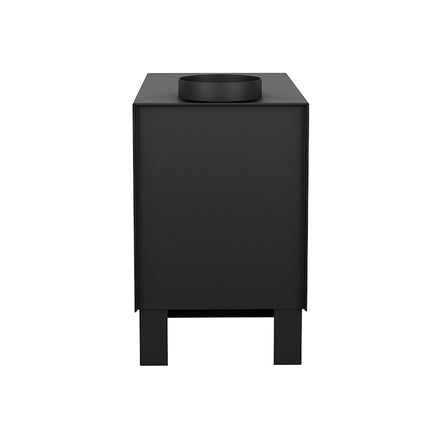

HUNTER

SKU: DB00400
Sale price $449.00 CADRegular price
Regular price $449.00 CAD

Full Description
🌍 Made in: Canada Flag Canada
📏 Dimension: 12 5/8"L X 22 7/8"P X 23 3/8"H
🔥 Maximum Log Length: 20"
📦 Shipping Weight: 56 lb (25 kg)
Full Specifications
Specifications

Appliance Performance

Maximum heat output-dry cordwood 45,000 BTU/h (13.19 kW) Overall firebox volume 2 ft³
Fuel type Dry cordwood

General Features

Alcove installation approved No Distance-center of the flue outlet to back unit 3 3/4"
Baffle type Steel Distance-center of the flue outlet to side unit 6 1/4"
Recommended chimney diameter 6" Steel thickness-body 14 ga
Flue outlet diameter 6" Steel thickness-top 14 ga
Firebox size (Height) 16 1/8" Warranty Limited 1 year to welds
Firebox size (Width) 12 3/8" Maximum log length 20"
Firebox size (Depth) 19 7/8" Mobile home approved No
Overall dimension (Height) 23 3/8" Canadian Standard (safety) ULC S627
Overall dimension (Width) 12 5/8" Shipping weight 56 lb (25 kg)
Overall dimension (Depth) 22 7/8" Log positioning Loading over depth
Door opening size (Height) 10 7/8" Door type Full steel
Door opening size (Width) 9 3/8"

Clearances

Canada United States
Single Wall Pipe Double Wall Pipe Single Wall Pipe Double Wall Pipe
Back wall 48″ 48″ 48″ 48″
Side wall 48″ 48″ 48″ 48″
Corner 48″ 48″ 48″ 48″
Base of the unit to ceiling 82″ 82″ 82″ 82″
