HEAT COMMANDER

SKU: DF02003
90 products in stock
Sale price $4,399.00 CADRegular price
Regular price $4,399.00 CAD

Full Description
🌍 Made in: Canada Flag Canada

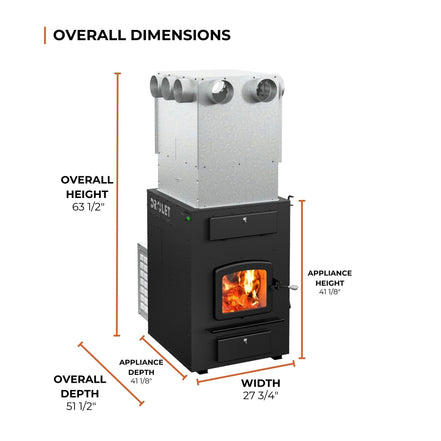

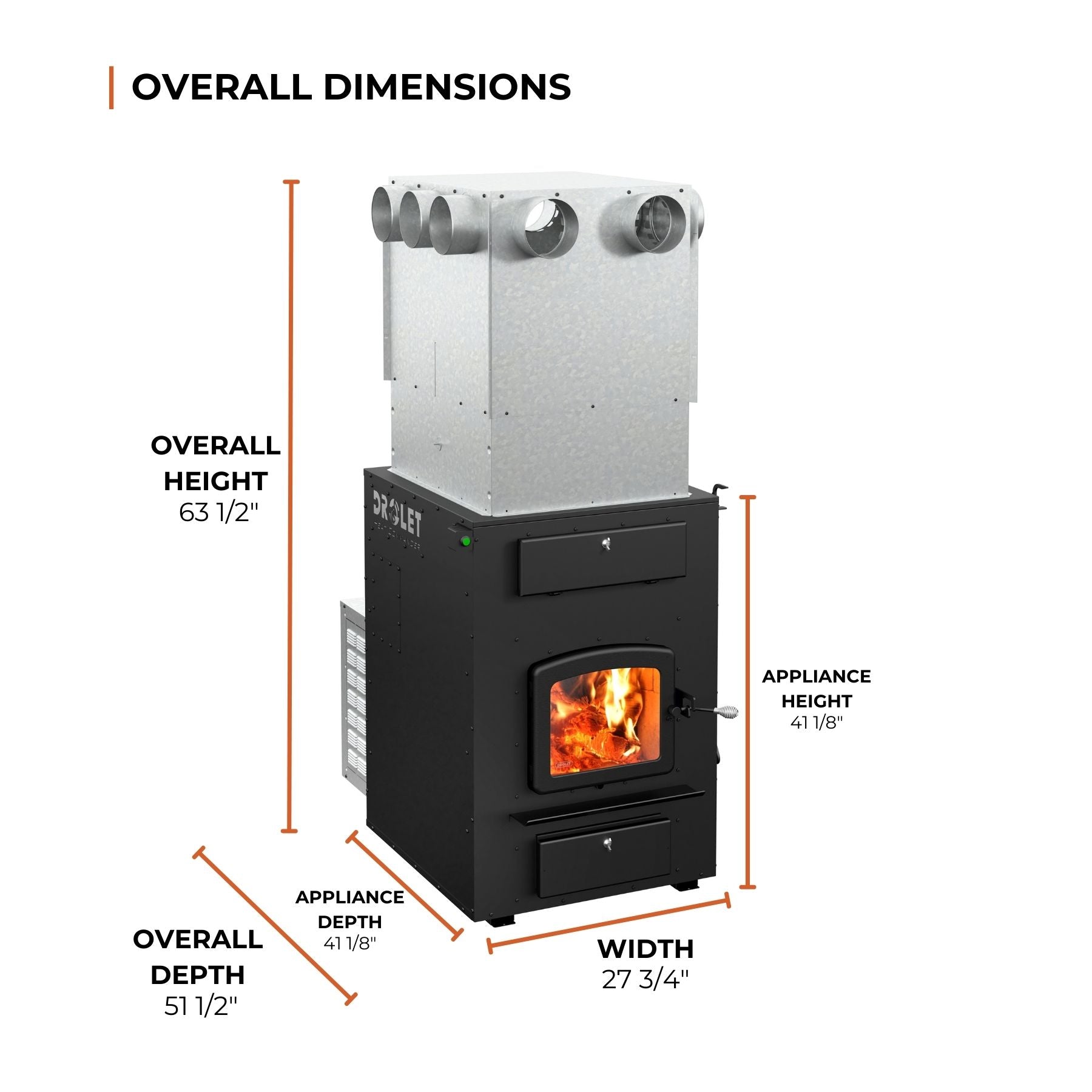

📏 Dimension: 27 3/4"L X 51 1/8"P X 63 1/2" min.H
🏠 Heating Area: 1,000 - 2,500 ft²
🔥 Maximum Log Length: 21"
Full Specifications
Specifications

Appliance Performance

Fuel type Dry cordwood (16" recommended) Minimum delivered heat output rate 13,297 BTU/h (3.9 kW)
Heating area 1,000 - 2,500 ft² Maximum delivered heat output rate 42,234 BTU/h (12.4 kW)
Overall firebox volume 3.6 ft³ Minimum average delivered efficiency (HHV) 60.7 %
Maximum burn time 10 h Maximum average delivered efficiency (LHV) 65 %
Maximum input capacity (dry cordwood) 310,000 BTU Optimum efficiency 83.2%
Nominal heat output at 15lb/ft³ fuel loading density 75,000 BTU Optimum heat transfer efficiency 81 %
Minimum overall heat output rate 19,354 BTU/h (5.6 kW) Average particulate emission rate 0.095 lb/mmBTU (0.041 g/MJ)
Maximum overall heat output rate 47,052 BTU/h (13.8 kW) Average CO 8.78 lb/mmBTU (3.78 g/MJ)
Minimum average overall efficiency (HHV) 76.6 % Average electrical power consumption 330 W
Maximum average overall efficiency (LHV) 82 %

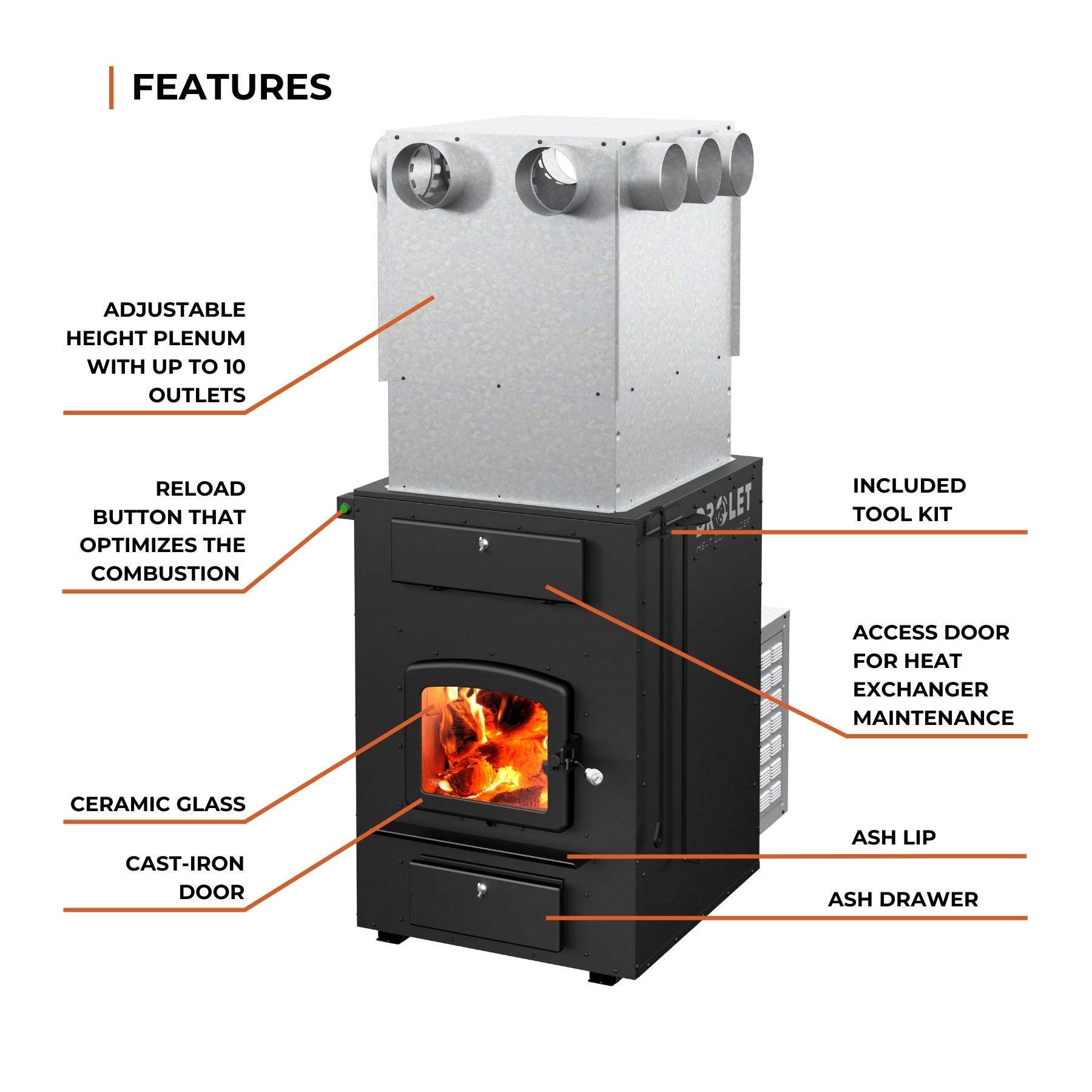

General Features

High-efficiency certified appliance Yes, EPA 2020 approved Baffle type C-Cast or equivalent
Certified according to applicable standards By an accredited laboratory (CAN/USA) Firebox size (Width) 18 3/4"
Premium quality blower included (CFM) Included Firebox size (Height) 16 1/8"
Blower (hp | speed | CFM) 1/3 | 1 | 1,135 Firebox size (Depth) 22 1/2"
Stainless-steel secondary-air system Yes Maximum log length 21"
Flue outlet diameter 6" Log positioning Loading over width and over depth
Recommended chimney diameter 6" Firebox lined with refractory bricks Yes
Type of chimney CAN/ULC S629, UL 103 HT (2100 °F) Steel thickness-top 1/4"
Overall dimension (Width) 27 3/4" Steel thickness-body 3/16"
Overall dimension (Height) 63 1/2" min. Filter - Dimensions (Width x Height x Depth) 15" x 20" x 1" (option)
Overall dimension (Depth) 51 1/8" Hot air plenum - Minimum height of the furnace with plenum 63 1/2" min. for 69" ceiling | 73 1/4" to 88" for a ceiling of 78 1/4" to 93" and more
Evacuation direction Horizontal Hot air plenum - Height (minimum - maximum) 22 3/8" x 26 7/8"
Distance-center of the flue outlet to floor 37 1/8" Canadian Standard (safety) CAN/CSA B366.1
Distance-center of the flue outlet to side unit 13 7/8" USA Standard (safety) UL 391
Door type Single, glass with cast iron frame Canadian Standard (emissions) CSA B415.1-10
Door opening size (Width) 13 3/4" USA Standard (emissions) EPA
Door opening size (Height) 10" Warranty Limited lifetime
Glass type Ceramic glass Shipping weight 758 lb (344 kg)
Glass surface - W x H 12 3/8 x 10 1/8"

Clearances

Canada United States
Clearance - Back wall of the blower box 14 1/4" 14 1/4"
Clearance - Side wall 11" 11"
Clearance - Opposite side wall 24" 24"
Clearance - Base of the unit to ceiling** 69" min. 69" min.
Clearance - Plenum | Ducts to the ceiling 5" from the plenum | 1" from ducts 5" from the plenum | 1" from ducts
Clearance - Recommended distance for maintenance on option side 30" min. 30" min.
Clearance - Floor protection in front of the unit (from door opening) 18" 16"
