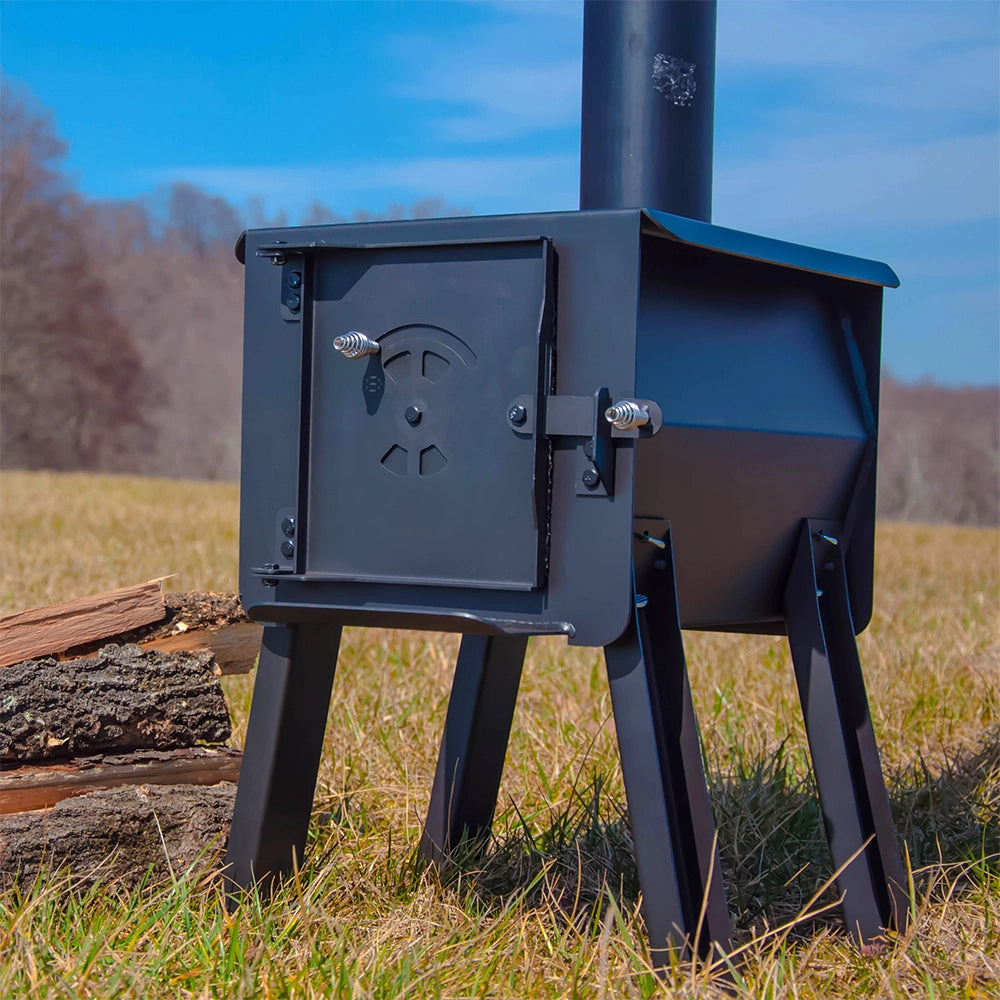

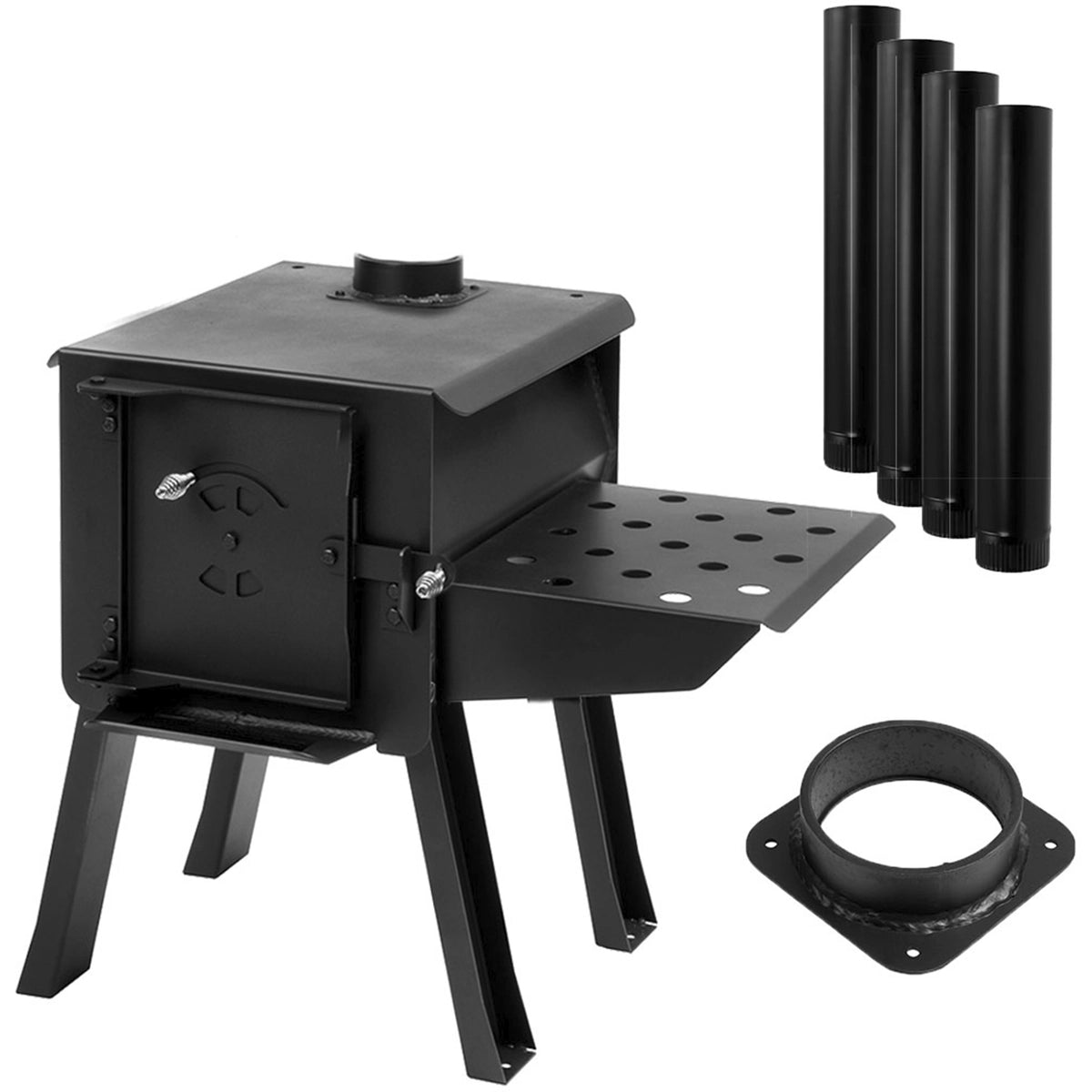

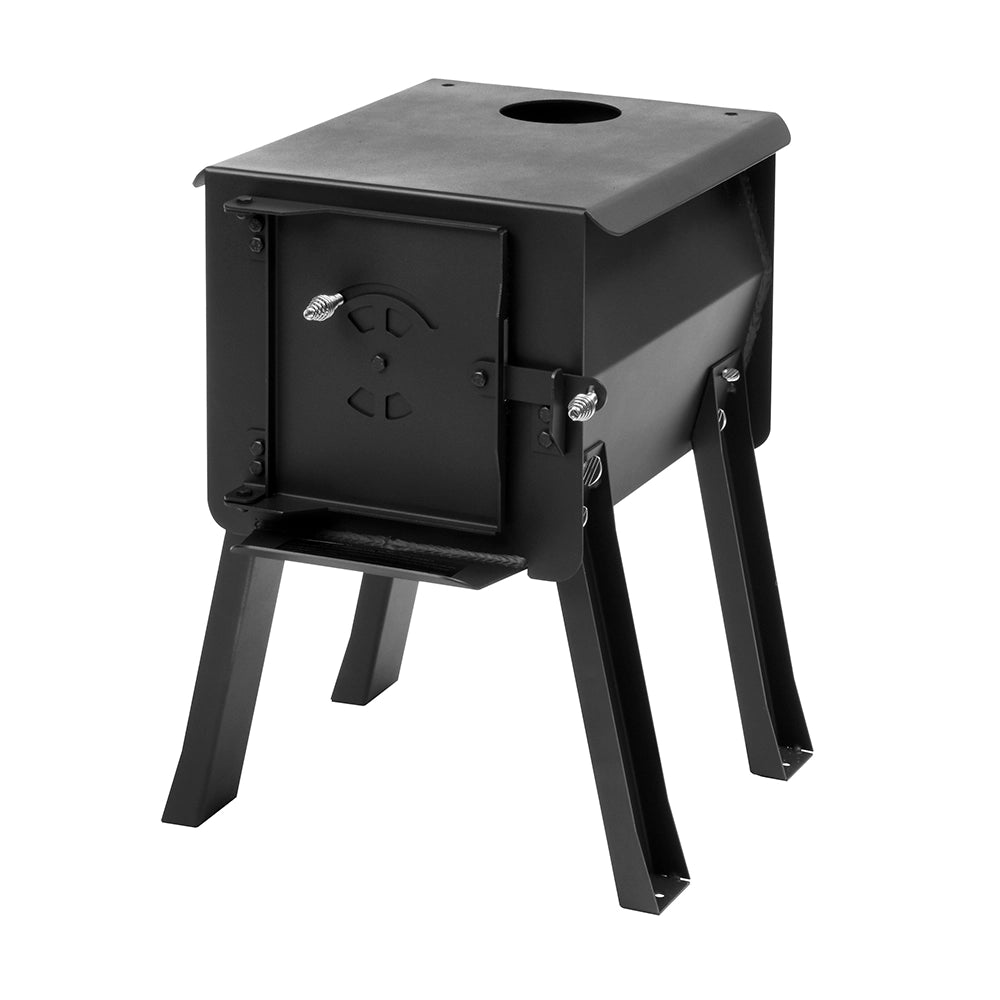

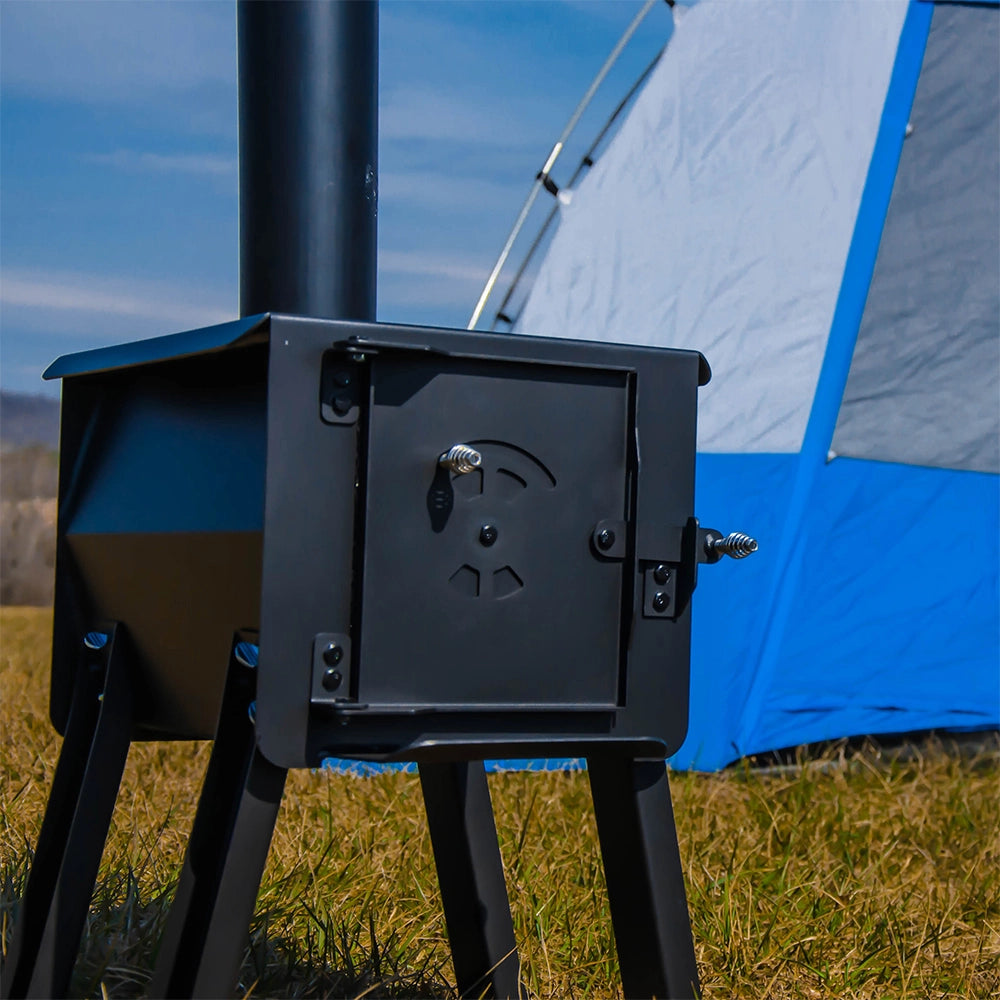

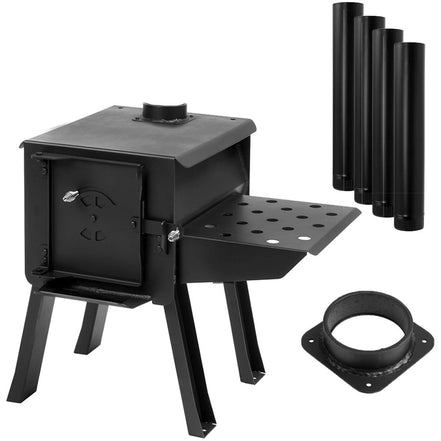

CUB KIT

SKU: ESW0035
Sale price $479.00 CADRegular price
Regular price $479.00 CAD
In stock
CUB KIT
CUB KIT
Sale price $479.00Regular price
Regular price $479.00
Trust Badge
Made in USA Flag United States
Dimension 14 1/2"L X 19 1/2"P X 21 3/4"H
Maximum Log Length 14 1/2"
Shipping Weight 66 lb (30 kg)
Full Specifications

Full Description
Specifications

Appliance Performance

Fuel type Dry cordwood Overall firebox volume 1 ft³

General Features

Recommended chimney diameter 4" Distance-center of the flue outlet to side unit 7"
Flue outlet diameter 4" Steel thickness-body 12 Ga
Firebox size (Height) 11" Steel thickness-top 12 Ga
Firebox size (Width) 12" Warranty Limited 1 year to carbon steel and welds of firebox
Firebox size (Depth) 15 1/2" Maximum log length 14 1/2"
Overall dimension (Height) 21 3/4" Mobile home approved No
Overall dimension (Width) 14 1/2" Canadian Standard (safety) ULC S627
Overall dimension (Depth) 19 1/2" Shipping weight 66 lb (30 kg)
Door opening size (Height) 7 1/4" Log positioning Loading over depth
Door opening size (Width) 6 3/4" Door type Steel
Distance-center of the flue outlet to back unit 3 1/2"

Clearances

Canada United States
Single Wall Pipe Double Wall Pipe Single Wall Pipe Double Wall Pipe
Back wall 48″ 48″ 48″ 48″
Side wall 48″ 48″ 48″ 48″
Corner 48″ 48″ 48″ 48″
Base of the unit to ceiling 77 1/2″ 77 1/2″ 77 1/2″ 77 1/2″
Manuals & Instructions
