CUB

SKU: ESW0034
Sale price $294.00 CADRegular price $319.00 CAD
Regular price $294.00 CAD
In stock
CUB
CUB
Sale price $294.00Regular price $319.00
Regular price $294.00
Trust Badge
Made in USA Flag United States
Dimension 14 1/2"L X 19 1/2"P X 21 3/4"H
Maximum Log Length 14 1/2"
Shipping Weight 45 lb (20 kg)
Full Specifications

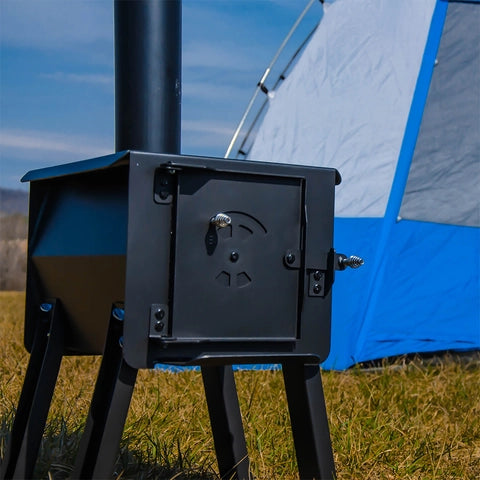

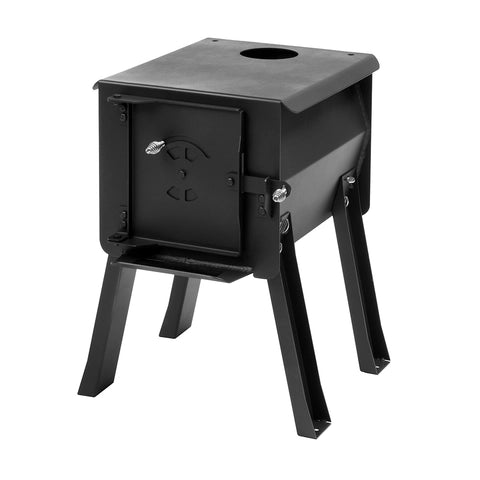

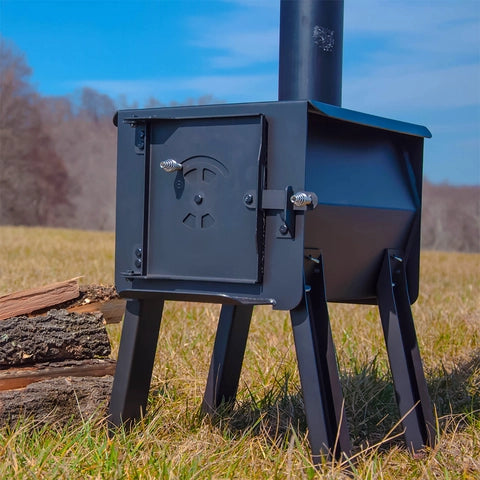

Constructed of welded, heavy-duty 12-gauge steel for longevity, these stoves are sized just right to remain portable yet very useful, whatever your needs may be-whether camping in a wall tent, ice fishing house, or just out in the Great Outdoors. Removable legs fit inside the stove body, and the stove's top edges are bent to double as handy carrying handles.

The 4” diameter pipe outlet is offset to provide maximum cooking space, and the top of the stove gets more than hot enough for cooking- this model can reach 600° F. The Cub is also large enough to heat wall tents up to 12' x 14'.

NOTE: NOT for use in homes. Only for use outdoors.

  • HexaTech™ Hexagonal firebox design provides long burn times and even heat distribution

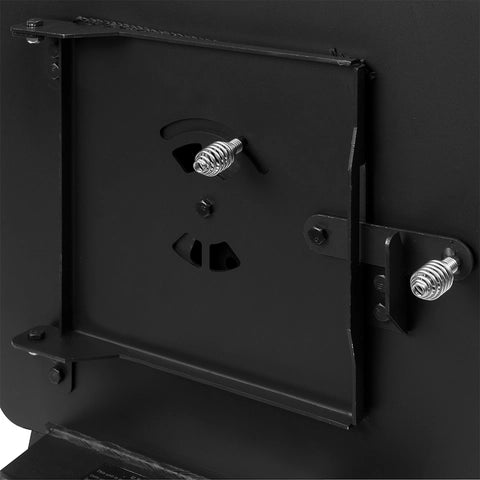

  • Circular door damper and in-door air redirect for easy start-ups and precise temperature control

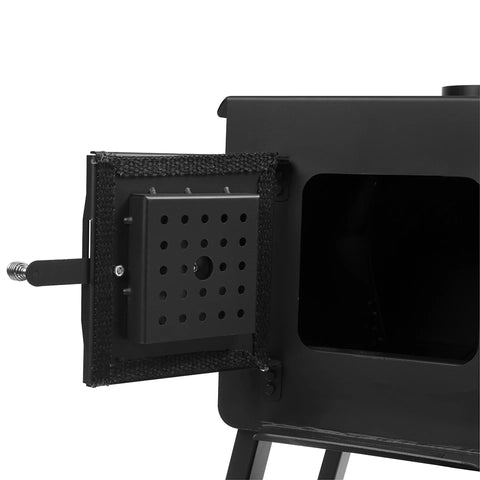

  • High temp. fiberglass door gasket is a unique feature that gives more efficient, longer-lasting burns
  • Included spring handles keep the door latch and damper controls cool to the touch

Full Description

Specifications

Appliance Performance

Fuel type Dry cordwood Overall firebox volume 1 ft³

General Features

Recommended chimney diameter 4" Distance-center of the flue outlet to side unit 7"
Flue outlet diameter 4" Steel thickness-body 12 Ga
Firebox size (Height) 11" Steel thickness-top 12 Ga
Firebox size (Width) 12" Warranty Limited 1 year to carbon steel and welds of firebox
Firebox size (Depth) 15 1/2" Maximum log length 14 1/2"
Overall dimension (Height) 21 3/4" Mobile home approved No
Overall dimension (Width) 14 1/2" Canadian Standard (safety) ULC S627
Overall dimension (Depth) 19 1/2" Shipping weight 45 lb (20 kg)
Door opening size (Height) 7 1/4" Log positioning Loading over depth
Door opening size (Width) 6 3/4" Door type Steel
Distance-center of the flue outlet to back unit 3 1/2"

Clearances

Canada United States
Single Wall Pipe Double Wall Pipe Single Wall Pipe Double Wall Pipe
Back wall 48″ 48″ 48″ 48″
Side wall 48″ 48″ 48″ 48″
Corner 48″ 48″ 48″ 48″
Base of the unit to ceiling 77 1/2″ 77 1/2″ 77 1/2″ 77 1/2″
Manuals & Instructions

Consult the available manuals and leaflets for more information on performance, installation and use requirements, etc.
