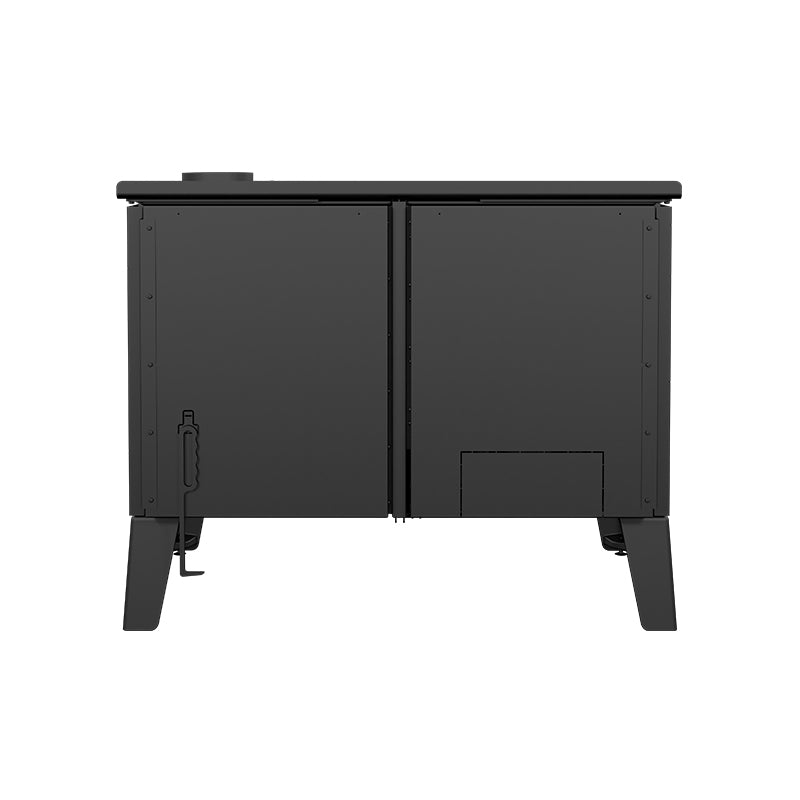

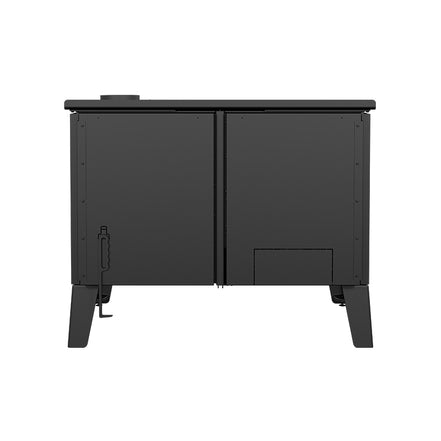

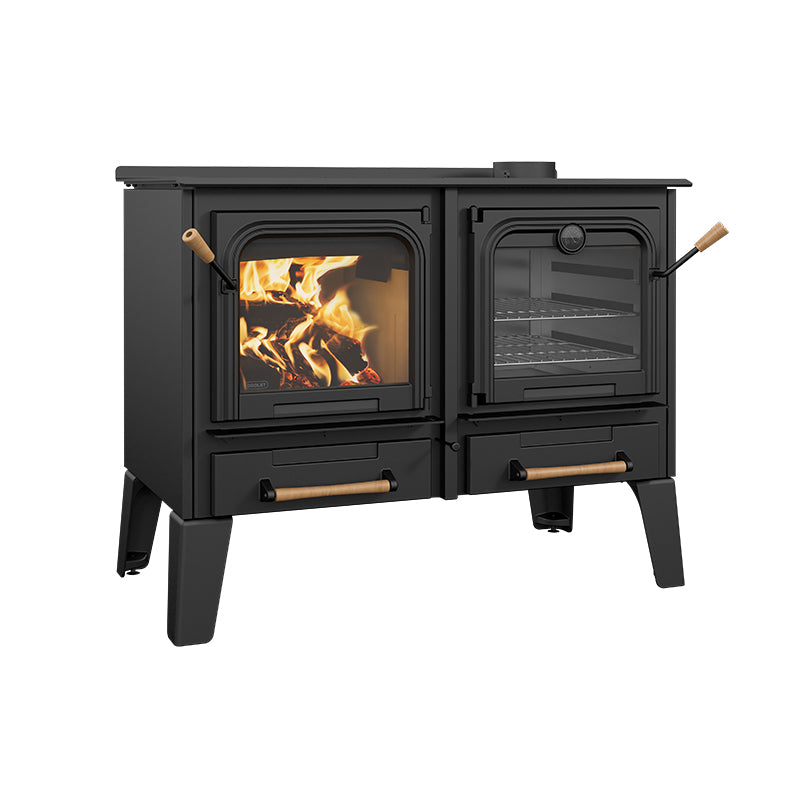

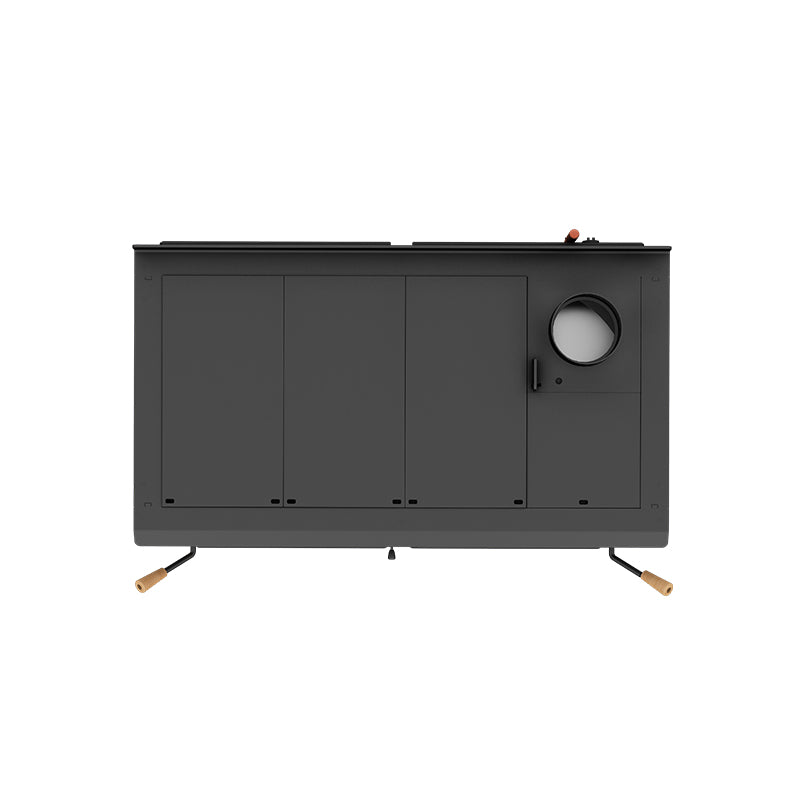

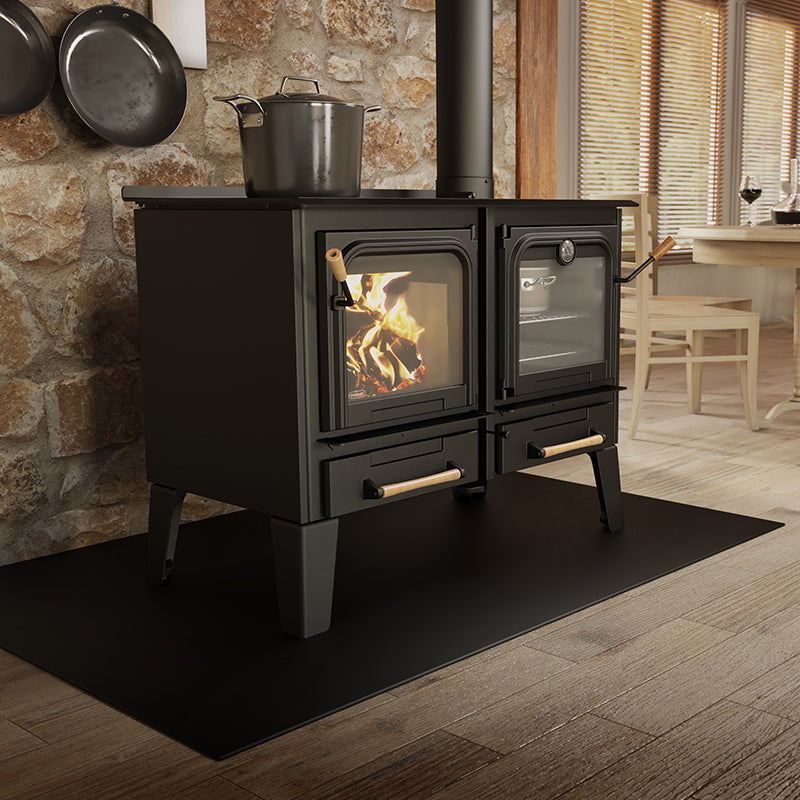

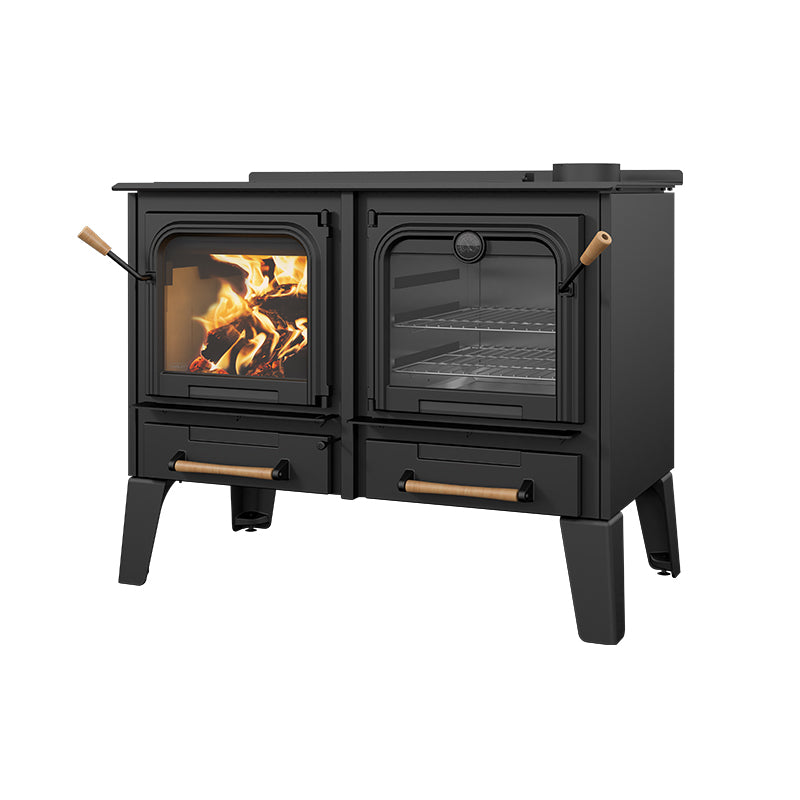

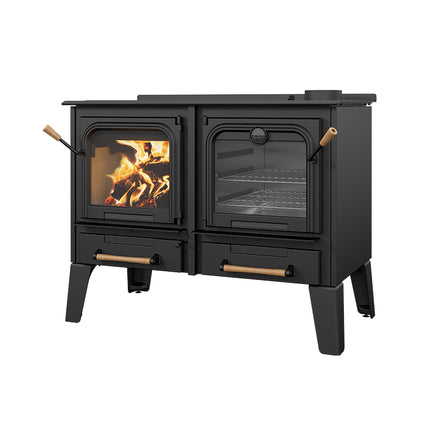

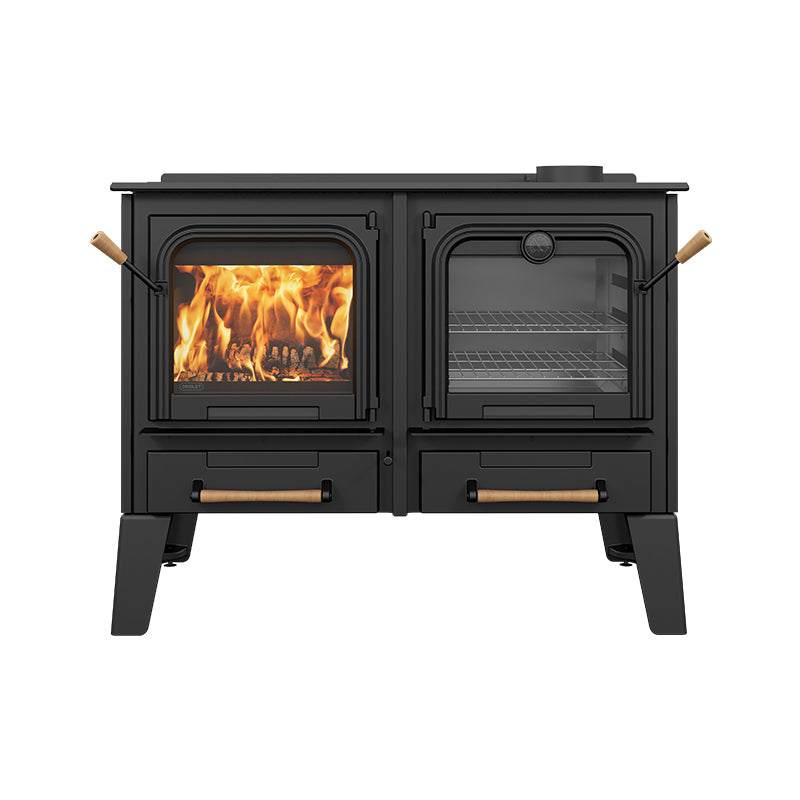

CHIC-CHOC

SKU: DB04820
Sale price $5,249.00 CADRegular price
Regular price $5,249.00 CAD
In stock
CHIC-CHOC
CHIC-CHOC
Sale price $5,249.00Regular price
Regular price $5,249.00
Trust Badge
Made in Canada Flag Canada
Dimension 47 1/4"L X 31 1/2"P X 38 3/4"H
Maximum Log Length 20" (16" recommended)
Volume Of The Oven 3.3 ft³
Full Specifications

Full Description
Specifications

Appliance Performance

Fuel type Dry cordwood Maximum burn time 10 h
Overall firebox volume 3.3 ft³

General Features

Mobile home approved No High-efficiency certified appliance Exempt
Certified according to applicable standards By an accredited laboratory (CAN/USA) Flue outlet diameter 6"
Overall dimension (Width) 47 1/4" Distance-center of the flue outlet to back unit 8"
Overall dimension (Height) 38 3/4" Distance-center of the flue outlet to side unit 7 1/2"
Overall dimension (Depth) 31 1/2" Recommended chimney diameter 6"

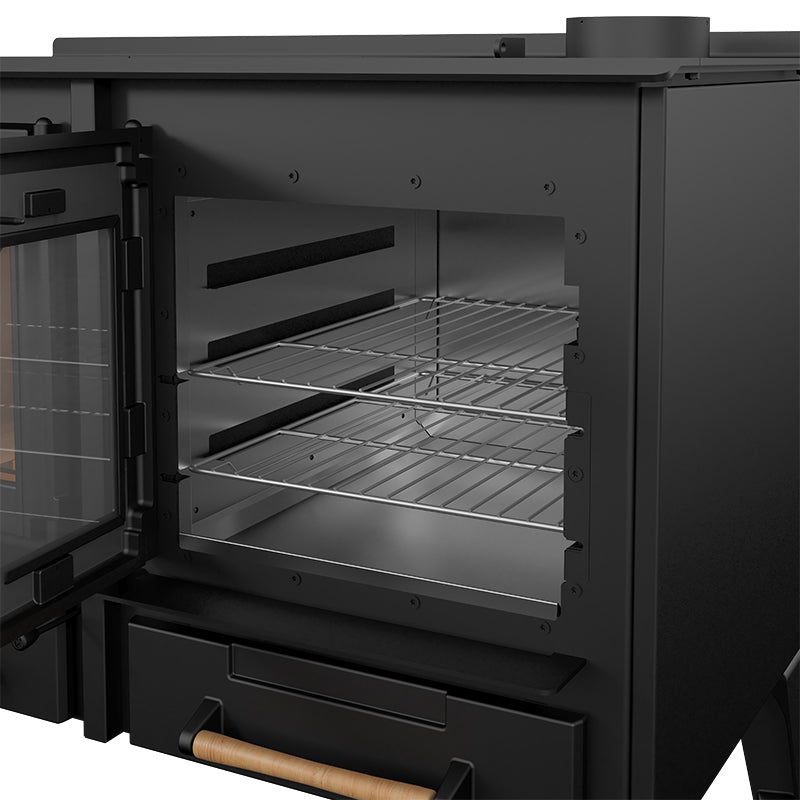

Oven dimension (Width) 17 3/4" Type of chimney ULC S629, UL 103 HT (2100 °F)
Oven dimension (Height) 14 3/4" Minimum chimney height 12'
Oven dimension (Depth) 21 3/4" Door type Double, glass with cast iron frame
Volume of the oven 3.3 ft³ Door opening size (Width) 16"
Stainless-steel secondary-air system Yes Door opening size (Height) 11 1/8"
Firebox size (Width) 47 1/4" Glass type Ceramic glass
Firebox size (Depth) 31 1/2" Glass surface - W x H 14 5/8" x 12 3/8"
Firebox size (Height) 38 3/4" Canadian Standard (safety) ULC S627
Log positioning Loading over depth USA Standard (safety) UL 1482
Maximum log length 20" (16" recommended) Warranty Limited lifetime
Firebox lined with refractory bricks Yes Shipping weight 896 lb (406 kg)
Baffle type High quality vermiculite

Clearances

Canada United States
Single Wall Pipe Double Wall Pipe Single Wall Pipe Double Wall Pipe
Back wall 13″ 7 1/2″ 13″ 7 1/2″
Side wall 15″ 15″ 15″ 15″
Corner 11″ 4″ 11″ 4″
Base of the unit to ceiling 84″ 84″ 84″ 84″
