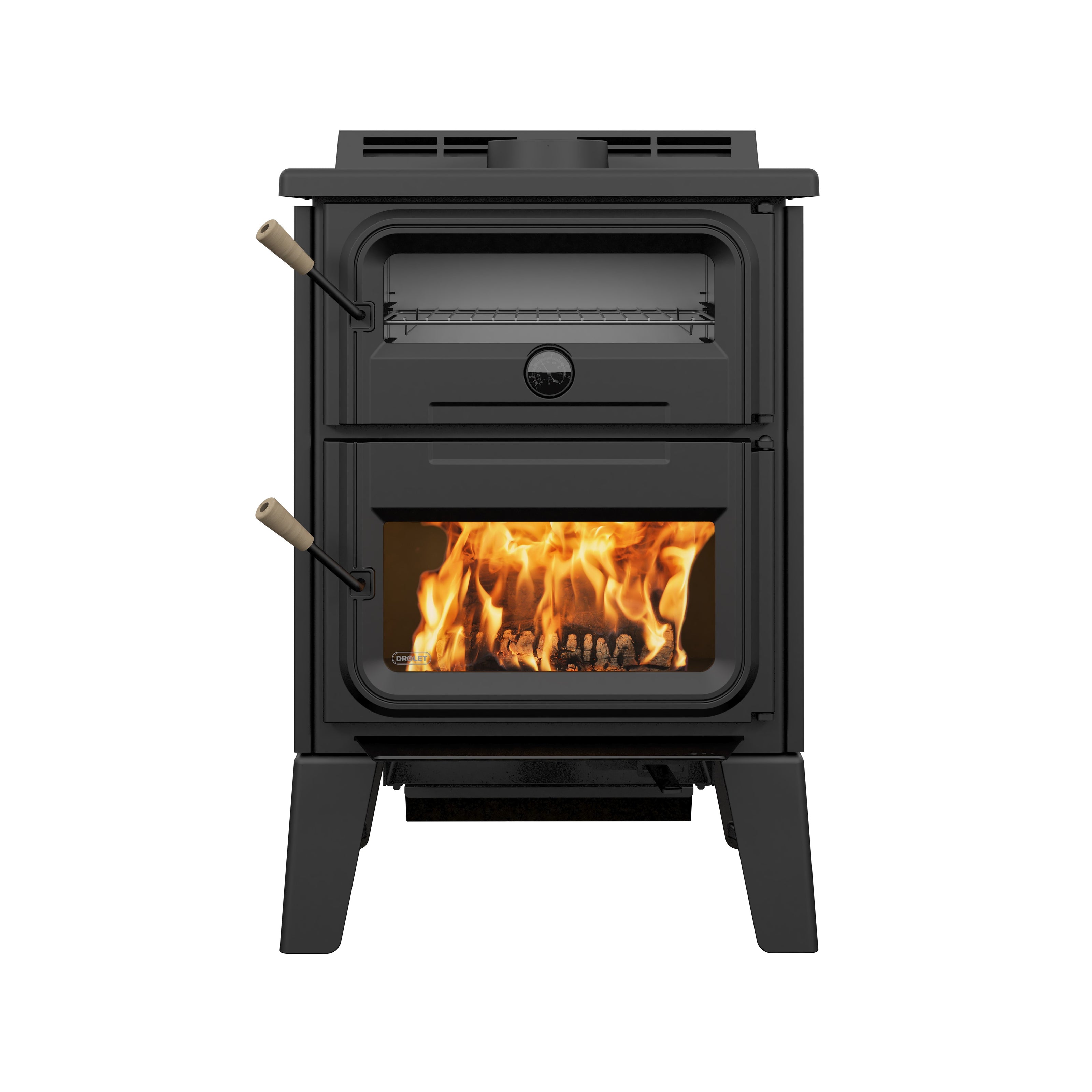

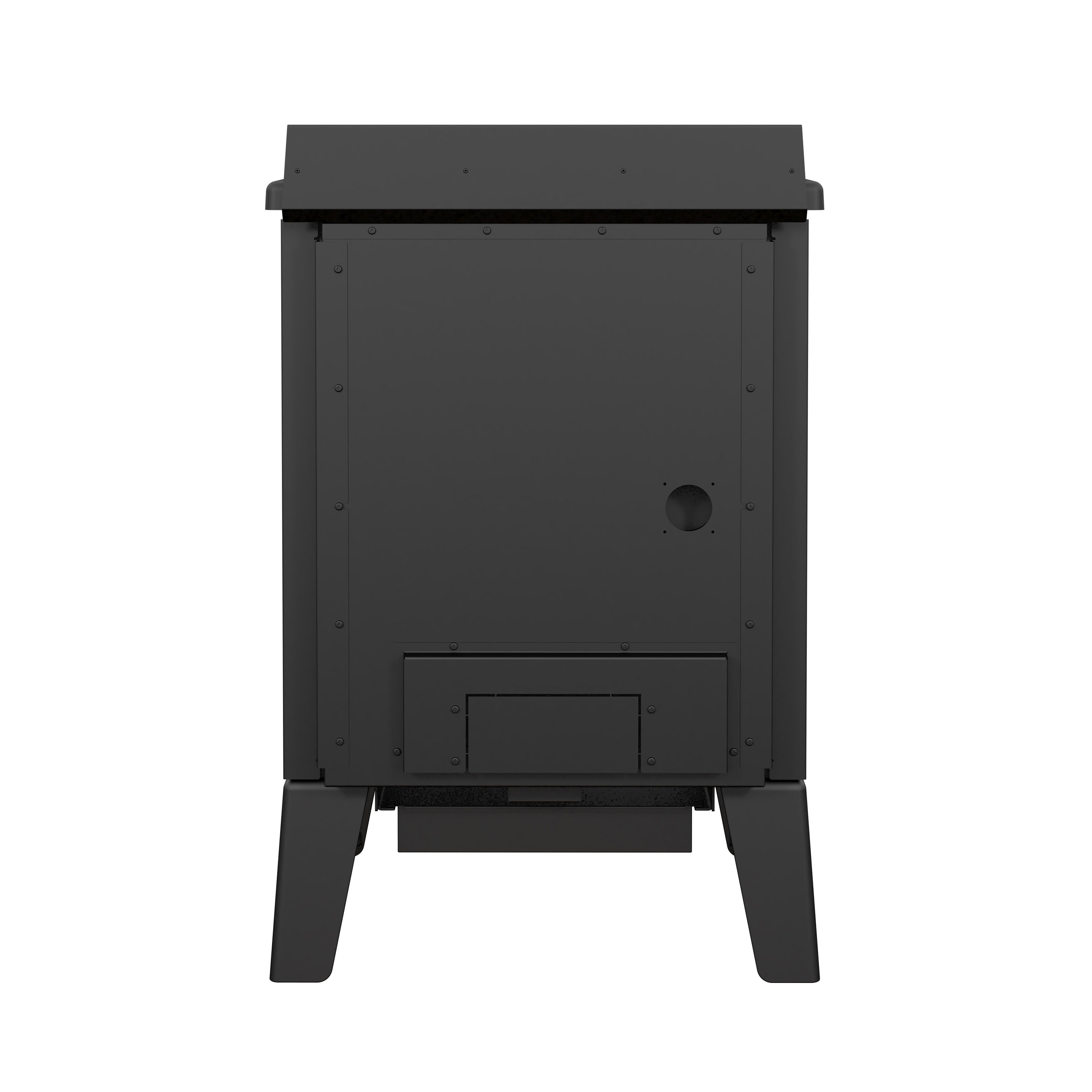

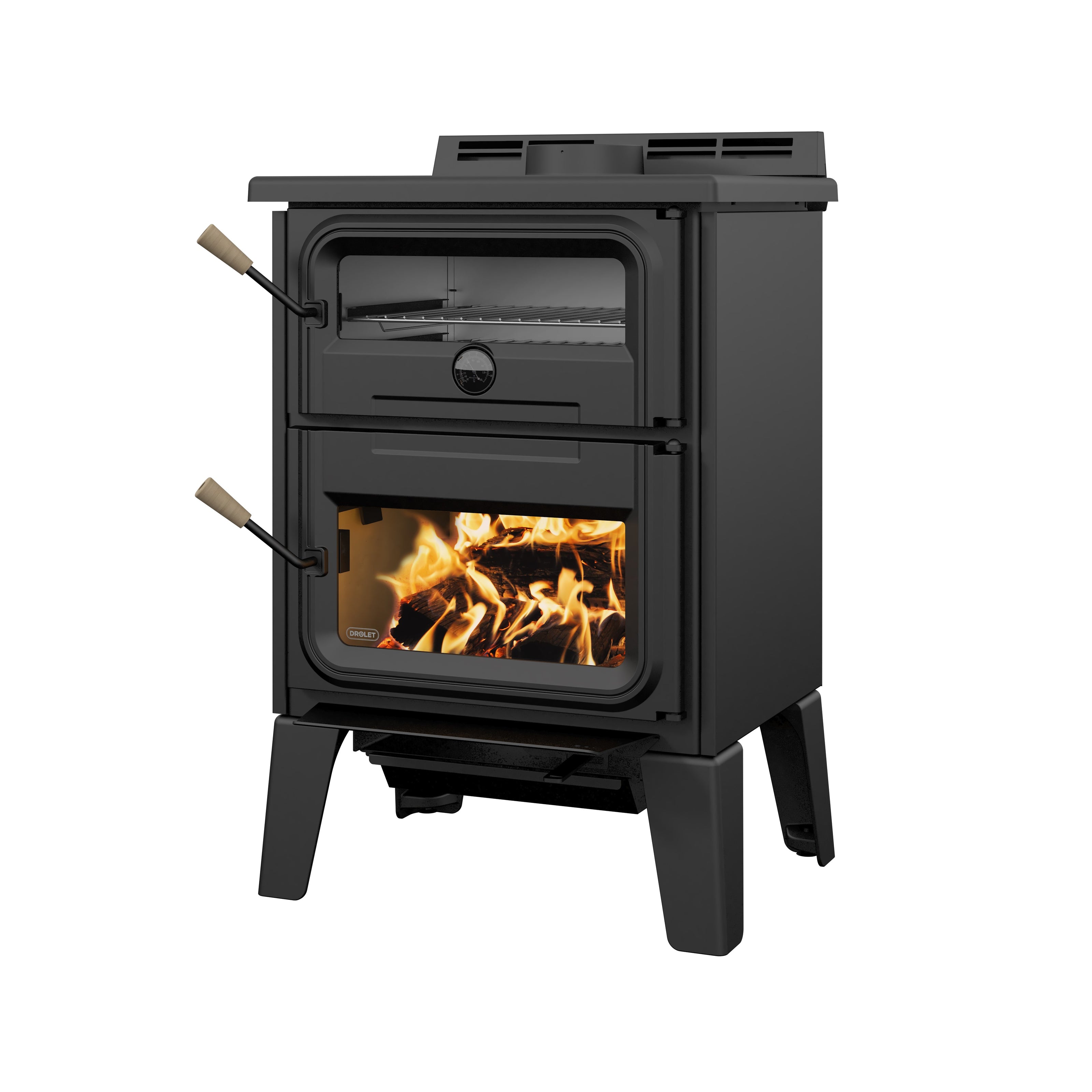

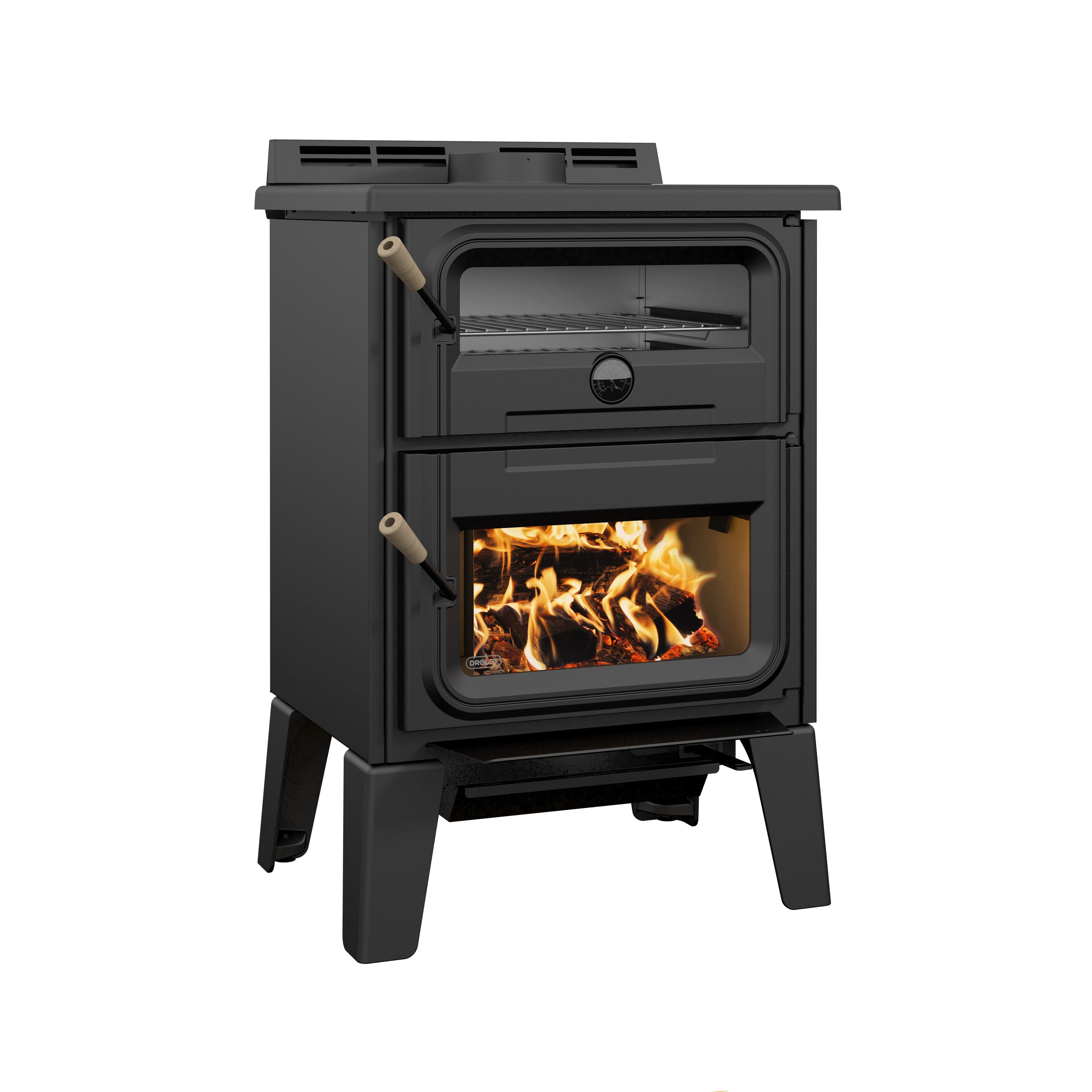

BISTRO

SKU: DB04815
153 products in stock
Sale price $2,999.00 CADRegular price $3,149.00 CAD
Regular price $2,999.00 CAD

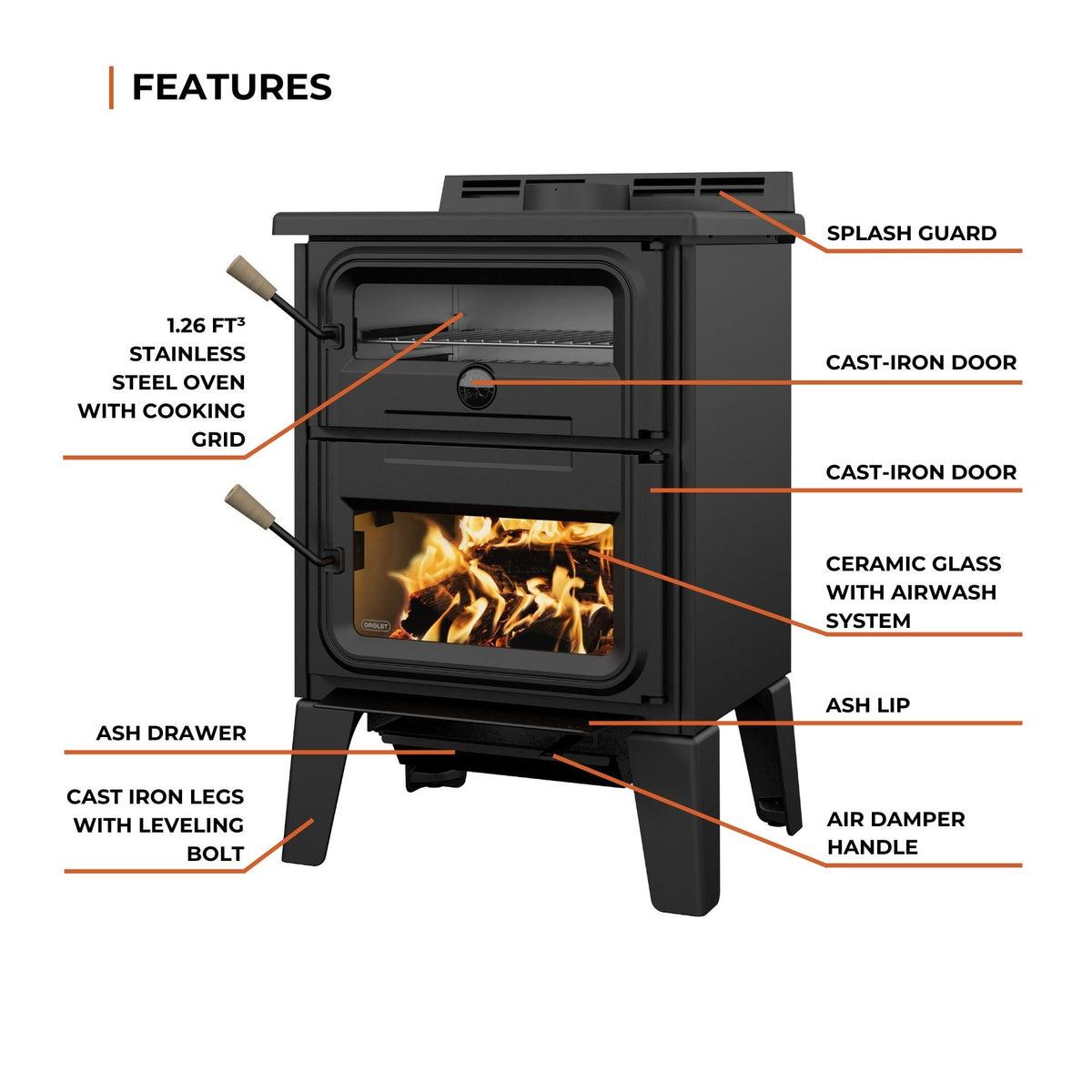

Full Description
🌍 Made in: Canada Flag Canada
📏 Dimension: 27"L X 32 1/4"P X 42"H
🔥 Maximum Log Length: 20"
🎛️ Volume Of The Oven: 1.26 ft³
Full Specifications
Specifications

Appliance Performance

Fuel type Dry cordwood Maximum overall heat output rate 47,300 BTU/h (13.86 kW)
Heating area 500 – 2,100 ft² Average overall efficiency - dry cordwood (HHV) 76 %
Overall firebox volume 2.261 ft³ Average overall efficiency - dry cordwood (LHV) 81 %
EPA loading volume 1.94 ft³ Optimum efficiency 83 %
Maximum burn time 8 h Optimum heat transfer efficiency 80 %
Maximum heat output - dry cordwood 75,000 BTU/h (22 kW) Average particulate emission rate 2.0 g/h
Minimum overall heat output rate 14,300 BTU/h (4.19 kW) Average CO 62 g/h

General Features

Mobile home approved Yes, with fresh air intake High-efficiency certified appliance Yes, EPA 2020 approved
Certified according to applicable standards By an accredited laboratory (CAN/USA) Flue outlet diameter 6"

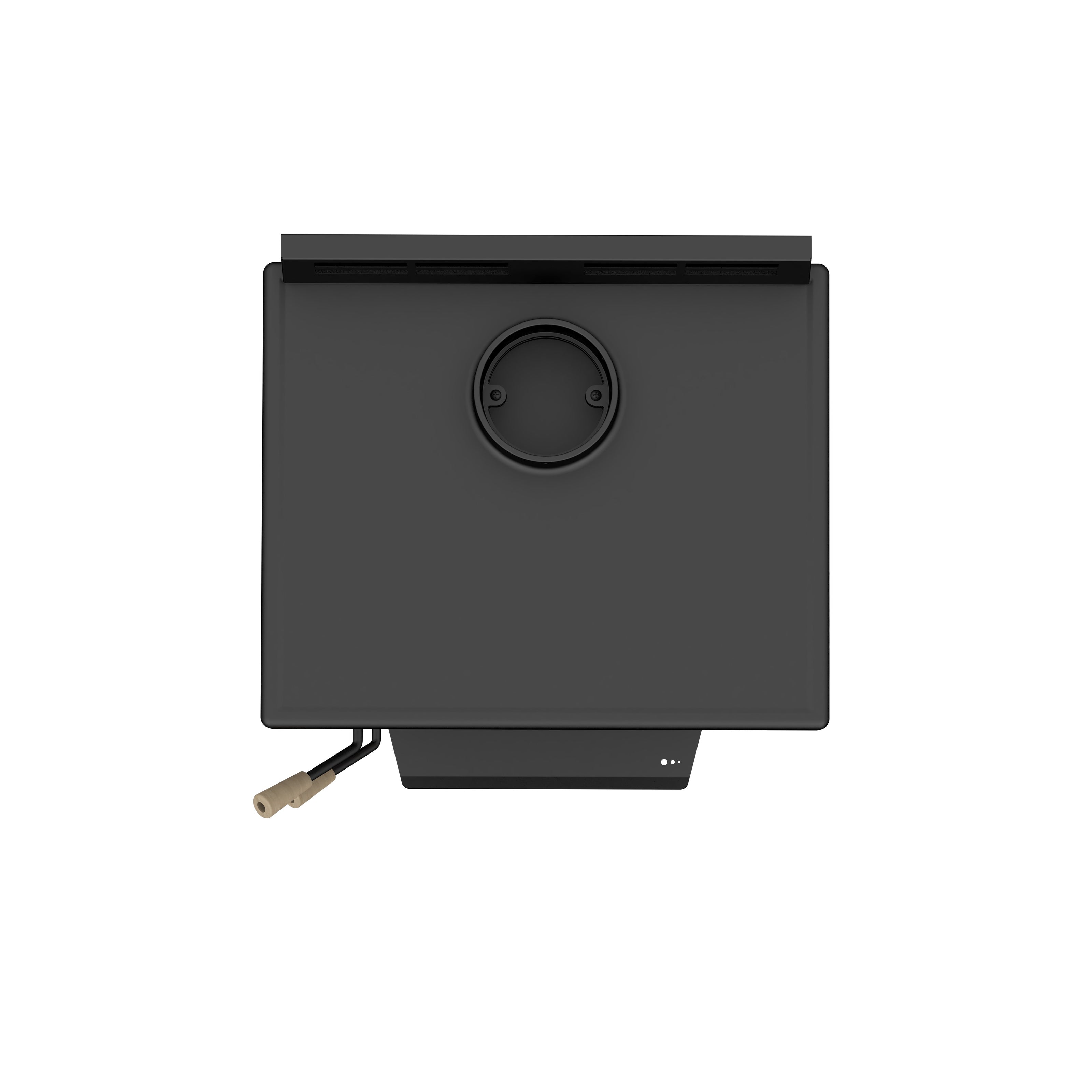

Overall dimension (Width) 27" Distance-center of the flue outlet to back unit 7 1/8"
Overall dimension (Height) 42" Distance-center of the flue outlet to side unit 13 1/2"
Overall dimension (Depth) 32 1/4" Recommended chimney diameter 6"
Oven dimension (Width) 17 7/8" Type of chimney ULC S629, UL 103 HT (2100 °F)
Oven dimension (Height) 7 7/8" Minimum chimney height 12'

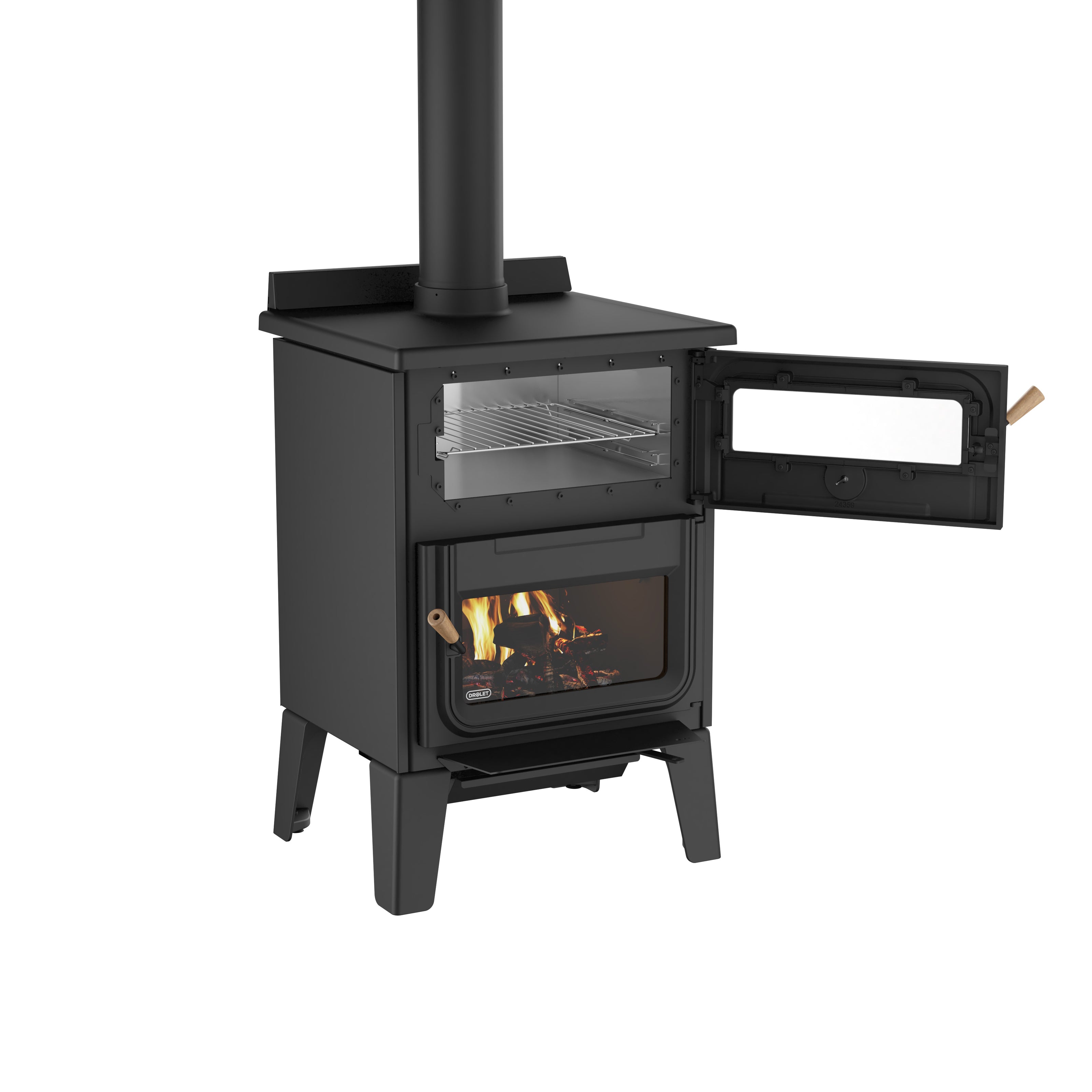

Oven dimension (Depth) 15 1/2" Door type Double, glass with cast iron frame
Volume of the oven 1.26 ft³ Door opening size (Width) 17 1/2"
Premium quality blower included (CFM) Optional Door opening size (Height) 9"
Combustion technology Non-catalytic Glass type Ceramic glass
Stainless-steel secondary-air system Yes Glass surface - W x H 16 1/2" x 7 1/2"
Firebox size (Width) 21" Canadian Standard (emissions) CSA B415.1-10
Firebox size (Depth) 17 1/4" USA Standard (emissions) EPA
Firebox size (Height) 11 7/8" Canadian Standard (safety) ULC S627
Log positioning Loading over width USA Standard (safety) UL 1482, UL 737
Maximum log length 20" Warranty Limited lifetime
Firebox lined with refractory bricks Yes Shipping weight 590 lb (268 kg)
Baffle type High quality vermiculite

Clearances

Canada United States
Single Wall Pipe Double Wall Pipe Single Wall Pipe Double Wall Pipe
Back wall 15″ 6″ 15″ 6″
Side wall 15″ 15″ 15″ 15″
Corner 7 1/2″ 5″ 7 1/2″ 5″
Front of the unit 48″ 48″ 48″ 48″
Base of the unit to ceiling 72″ 72″ 72″ 72″
