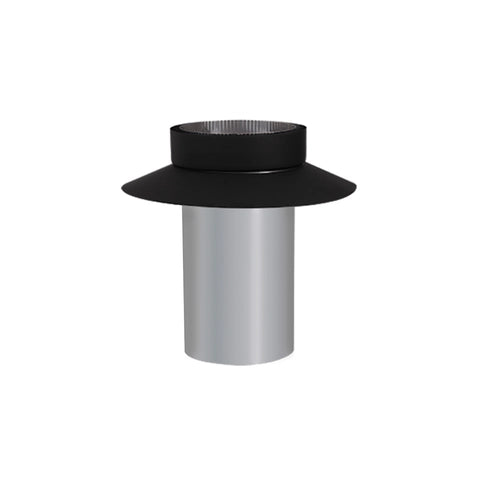

6" VORTEX DOUBLE WALL MASONRY ADAPTER

Used to connect double wall stove pipe to an existing masonry chimney or a relined masonry chimney with stainless steel liner.

• Easy-to-connect parts to simplify installation.
• The stainless-steel wall features an exclusive thermal weave that promotes even airflow and lower outer wall temperatures.
• Metallic black powder coat, which gives a good aesthetic appearance and helps to resist corrosion.
• Laser welding: the different parts of the connection system are assembled by laser welding. This provides discreet, solid and durable joints.
• Complies with NFPA 211, CSA B365, UL 103 HT and ULCS629 Standards

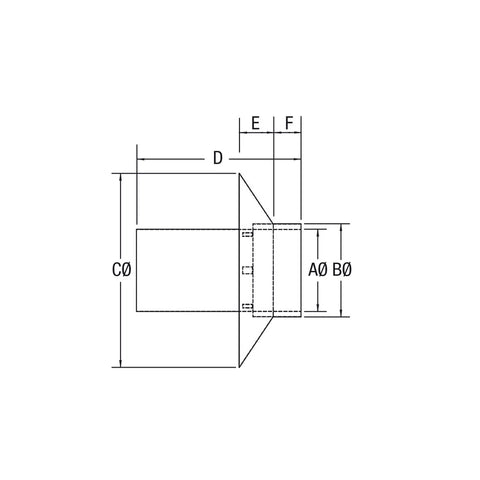

Dimensions

AØ : 6"

BØ : 6.75"

CØ : 14.16"

D : 12"

E : 2.5"

F : 2"
