3" PELLET BLACK WALL PASS-THRU WITH FRESH AIR INTAKE

Allows fresh air for combustion to come through the wall without having to cut a secondary hole into the wall. Used when passing horizontally through a combustible wall, this wall pass-thru is adjustable from 4" to 9" for a variety of wall thicknesses. Exterior galvalume cover plate included, fresh air pipe not included.

• Strong and durable venting thanks to its outer wall in galvalume steel and its inner wall in stainless steel
• Revolutionary gasket system that prevents leaks and does not require the use of silicone
• Smooth-weld technology for virtually invisible seams
• Precision formed ends for a better finish
• Complies with NFPA 211, CSA B365, UL 641, CAN/ULC S609 and ULC/ORD C441 standards

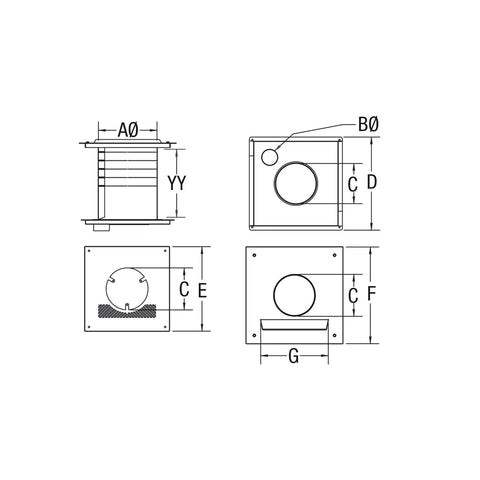

Dimensions

AØ : 5.7"

BØ : 2.9"

C : 4"

D : 10"

E : 9"

F : 11"

G : 8"

YY : 4"-9"
